087N1100

Part Number: 087N1100
087N1100
Manufacturer
Danfoss
Part number
087N1100
Category

Product Information

Extended Description

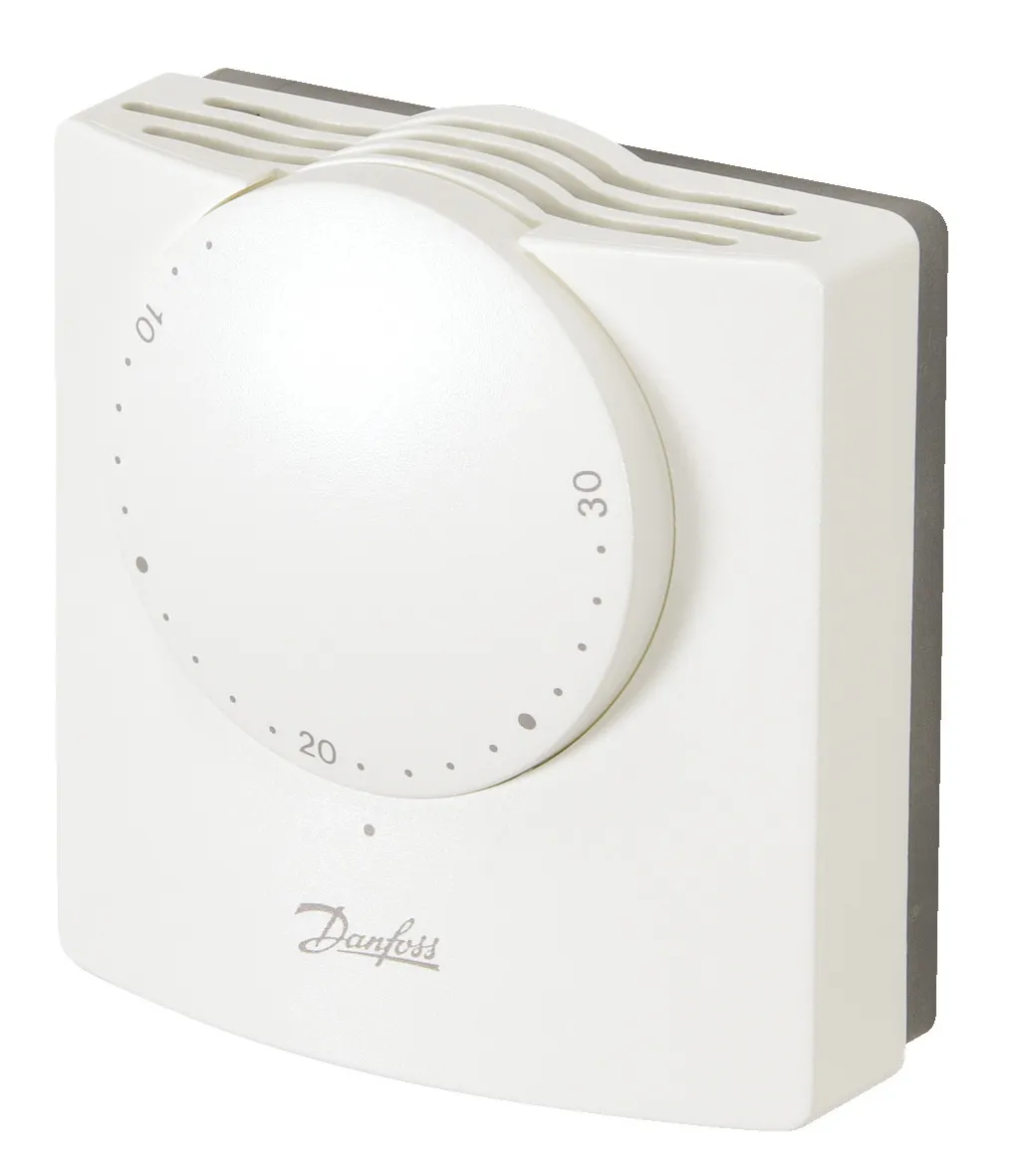

087N1100 Danfoss: RMT230 , Electro mechanical room thermostat with accelerator use in 230V system with SPDT type contact
Gross weight
0.144 Kilogram
Net weight
0.138 Kilogram
Volume
0.36 Liter
EAN
5702420019062
Accelerator
Yes
Built-In thermometer
No
Category name
Mechanical Dial Thermostat
Depth [mm]
40 mm
Description
RMT230 , Electro mechanical room thermostat with accelerator use in 230V system with SPDT type contact
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Height [mm]
80 mm
In scope of WEEE
Yes
Label product
Yes
Media
A
Night set-back
No
Output relay rating inductive [A]
4 A
Output relay rating resistive [A]
10 A
Product description
RMT-230 R.THERM
Product group
Electro mechanical room thermostat
REACH Candidate List substances
No
Supply voltage [V] AC
230 V
Switching differential [°C] [Max]
1 °C
Temperature [°C] [Max]
30 °C
Temperature [°C] [Min]
8 °C
Type
RMT230
Warranty [Year]
2
Width [mm]
80 mm
ErP Classifications RMT Electro Mechanical Room Thermostat Datasheet Installations Instruction RMT230 and RMT230T RMT, Room Thermostat UA Thermostats 2024-07-25 UA Thermostats 2024-07-25 UA Thermostats 2024-07-25 UA Thermostats 2024-07-25 UA Thermostats 2024-07-25 UA Thermostats 2024-07-25 UA Thermostats 2024-07-25 UA Thermostats 2024-07-25 UA Thermostats 2024-07-25 UA Thermostats 2024-07-25 RMT230_L RMT_3D RMT_2D RMT_STEP RMT230(T)_24(T)_RFA
