087N1196
Part Number: 087N1196
Product Information
Extended Description

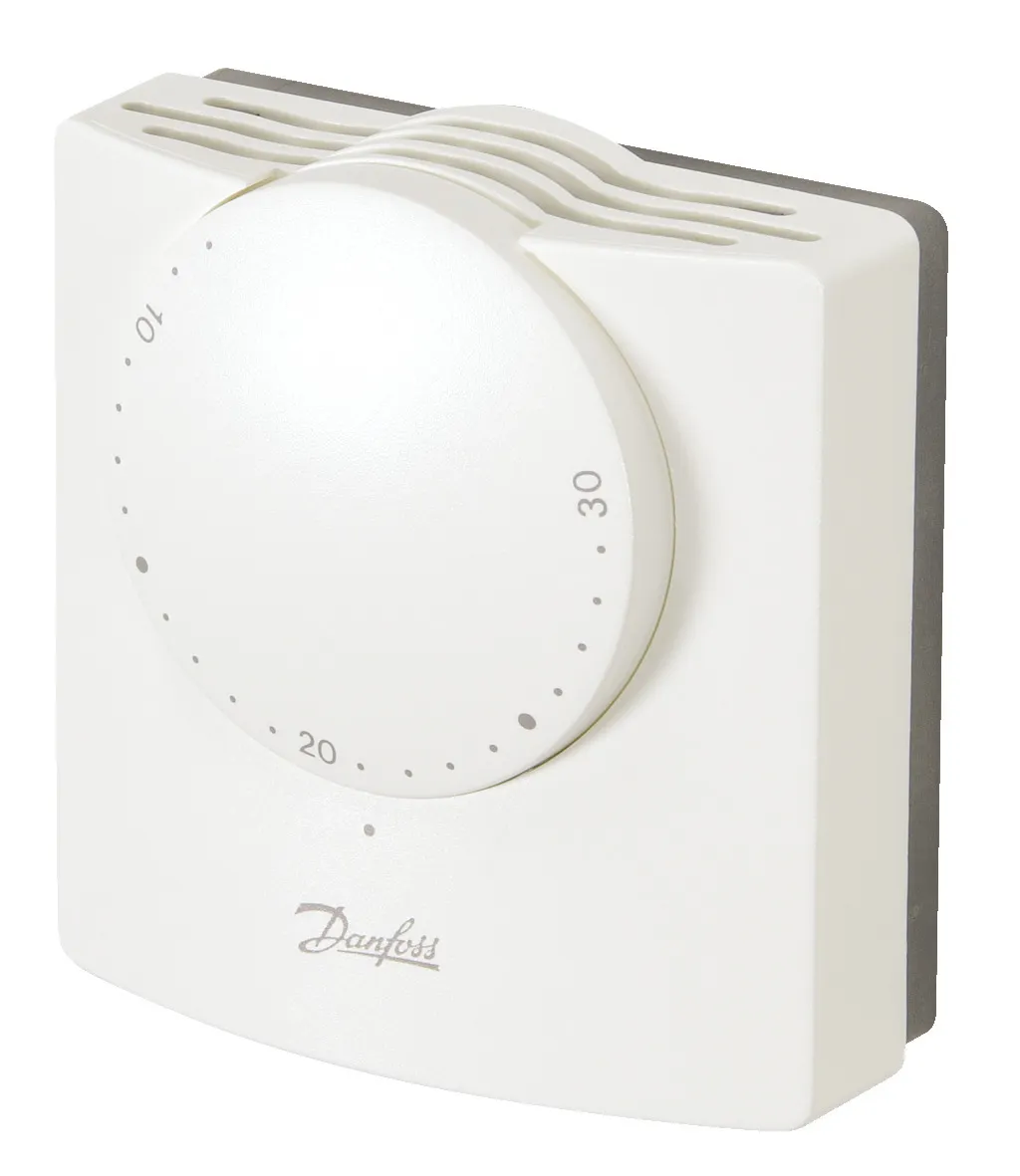

087N1196 Danfoss: RMT24 , Electro mechanical room thermostat with accelerator use in 24V system with SPDT type contact
Gross weight
0.142 Kilogram
Net weight
0.137 Kilogram
Volume
0.325 Liter
EAN
5702420019024
Accelerator
Yes
Built-In thermometer
No
Category name
Mechanical Dial Thermostat
Depth [mm]
40 mm
Description
RMT24 , Electro mechanical room thermostat with accelerator use in 24V system with SPDT type contact
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Height [mm]
80 mm
In scope of WEEE
Yes
Label product
Yes
Media
A
Night set-back
No
Output relay rating inductive [A]
4 A
Output relay rating resistive [A]
10 A
Product description
RMT-24 R.THERM.
Product group
Electro mechanical room thermostat
REACH Candidate List substances
No
Supply voltage [V] AC
24 V
Switching differential [°C] [Max]
1 °C
Temperature [°C] [Max]
30 °C
Temperature [°C] [Min]
8 °C
Type
RMT24
Warranty [Year]
2
Width [mm]
80 mm
