087N1197
Part Number: 087N1197
Product Information
Extended Description

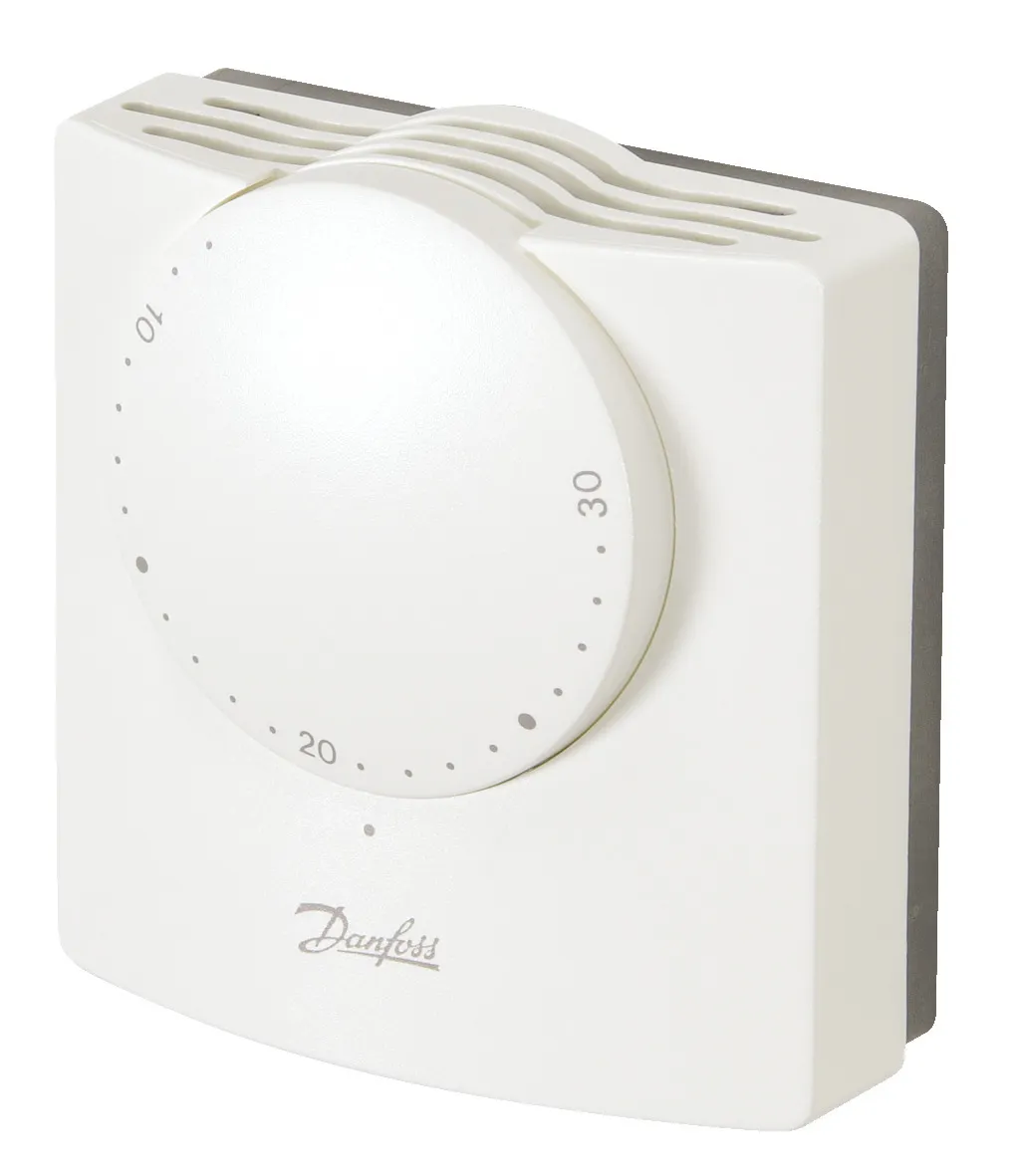

087N1197 Danfoss: RMT24T , Electro mechanical room thermostat with accelerator, thermometer and night set-back use in 24V system with SPDT contact
Gross weight
0.154 Kilogram
Net weight
0.148 Kilogram
Volume
0.325 Liter
EAN
5702420019192
Accelerator
Yes
Built-In thermometer
Yes
Category name
Mechanical Dial Thermostat
Depth [mm]
40 mm
Description
RMT24T , Electro mechanical room thermostat with accelerator, thermometer and night set-back use in 24V system with SPDT contact
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Height [mm]
80 mm
In scope of WEEE
Yes
Label product
Yes
Media
A
Night set-back
Yes
Output relay rating inductive [A]
4 A
Output relay rating resistive [A]
10 A
Product description
RMT-24 T.THERM.
Product group
Electro mechanical room thermostat
REACH Candidate List substances
No
Supply voltage [V] AC
24 V
Switching differential [°C] [Max]
1 °C
Temperature [°C] [Max]
30 °C
Temperature [°C] [Min]
8 °C
Type
RMT24
Warranty [Year]
2
Width [mm]
80 mm
