087N6460
Part Number: 087N6460
Product Information
Extended Description

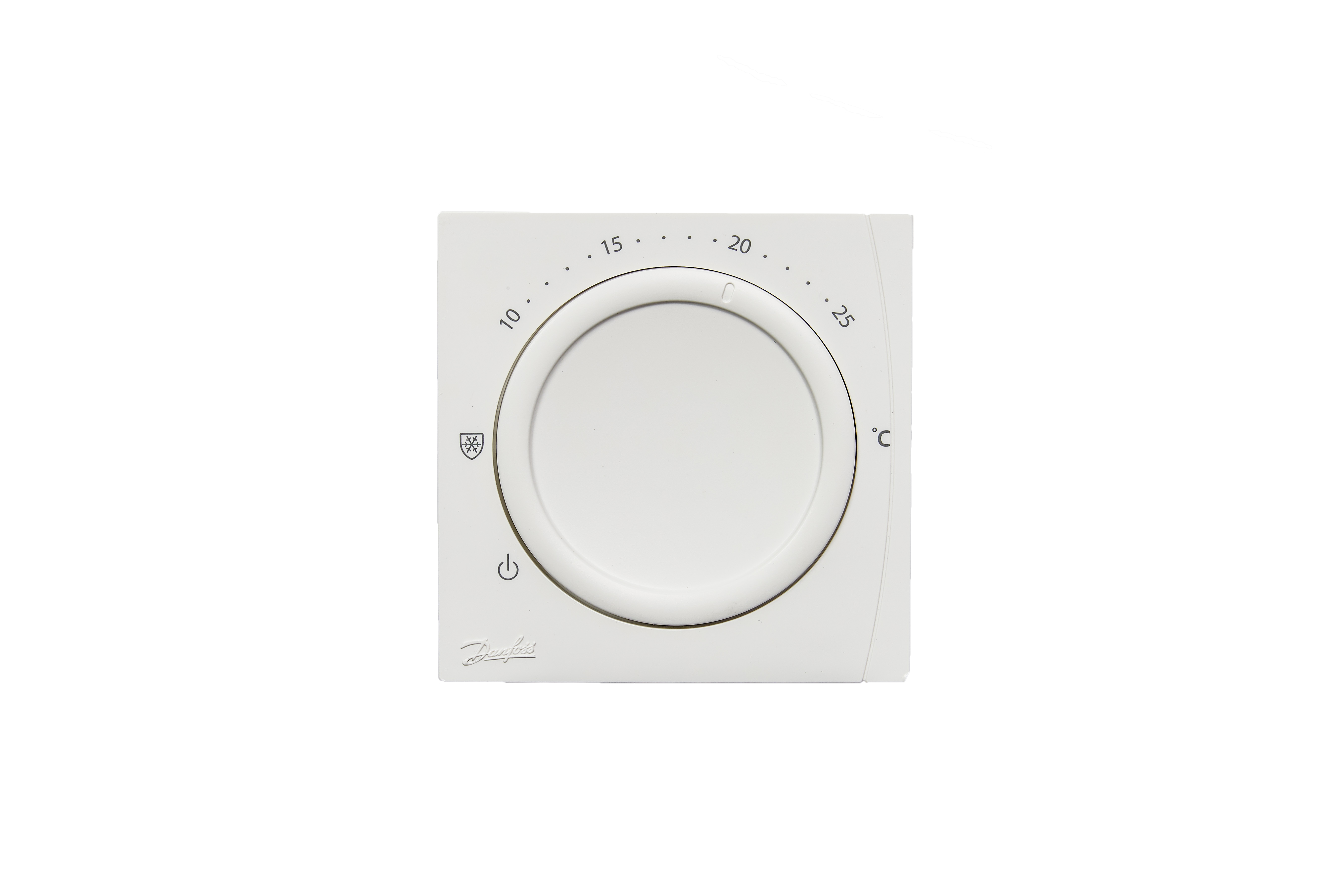

087N6460 Danfoss: RET1001M,Mains powered dial room electronic thermostat
Gross weight
0.176 Kilogram
Net weight
0.106 Kilogram
Volume
0.65 Liter
EAN
5702425239335
Ambient temperature [°C] [max]
40 °C
Application
Room heating
Approval
CE,UKCA
Backplate
Custom Backplate
Ball hardness test [°C]
75 °C
Category name
Dial Thermostat
CE evaluated
Yes
Colour
White RAL 9010
Control pollution
Degree 2
Control type
On/Off modulating control
Depth [mm]
30 mm
Description
RET1001M,Mains powered dial room electronic thermostat
Design standard
EN 60730-2-9
EEE category
5 small equipment (any external dimension 50 cm)
Frequency [Hz]
50/60 Hz
Frost protection
Yes
Height [mm]
86 mm
In scope of WEEE
Yes
Installation
3 Wire Installation
Label product
Yes
Material
ABS+PC, non-flammable
Media
A
Number of channels
1
On/Off control
Yes
Output relay rating inductive [A]
1 A
Output relay rating resistive [A]
3 A
Product description
RET1001M
Product group
Room Thermostats, RET
REACH Candidate List substances
No
Status indicator
Yes
Supply Type
230Vac
Temperature limiter [°C] [Max]
35 °C
Temperature limiter [°C] [Min]
5 °C
Tolerance
±10%
Type
RET1001
UNSPSC CODE
41112209
Warranty [Year]
2
Width [mm]
86 mm
