087N6478

Part Number: 087N6478
087N6478
Manufacturer
Danfoss
Part number
087N6478
Category

Product Information

Extended Description

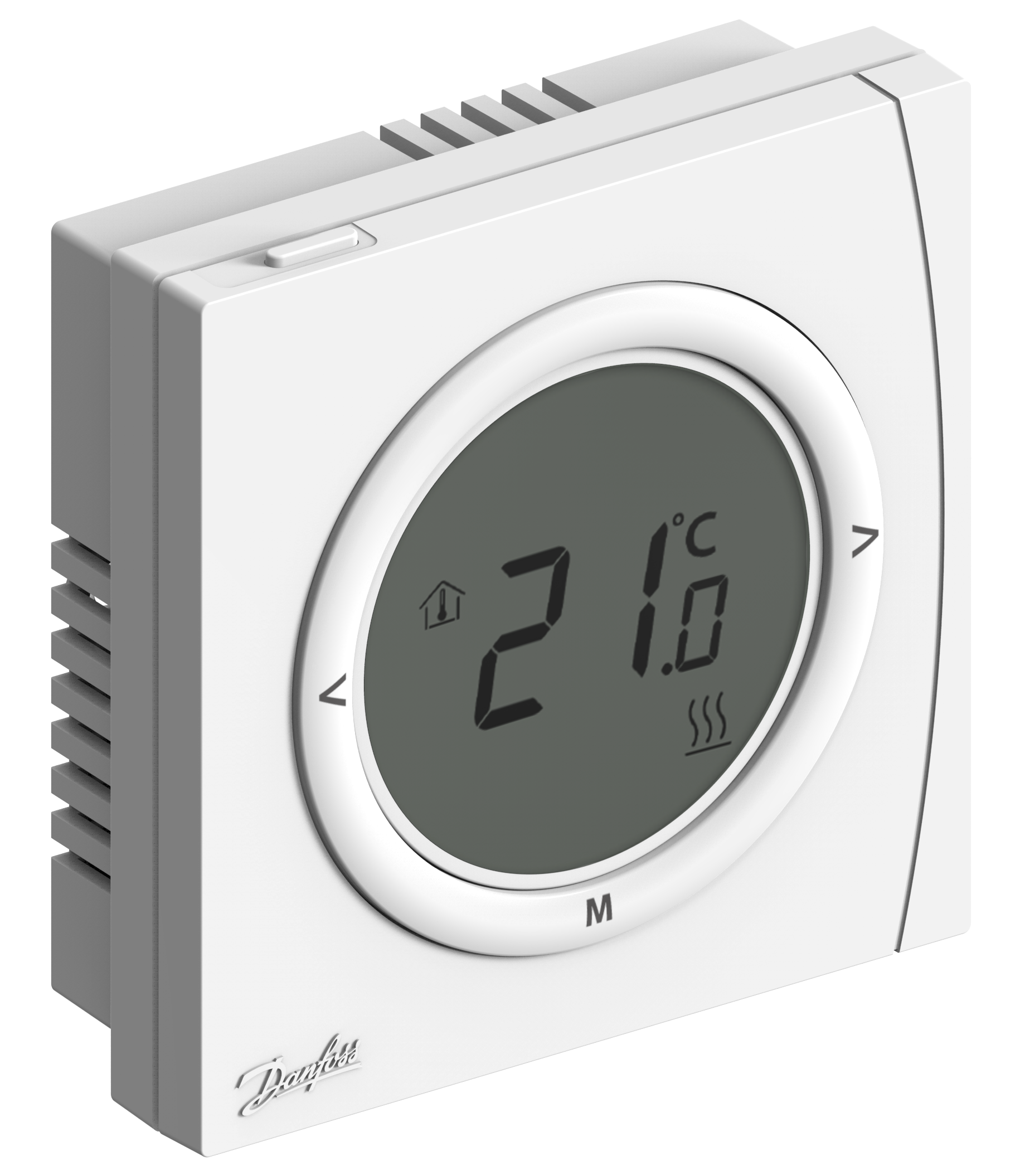

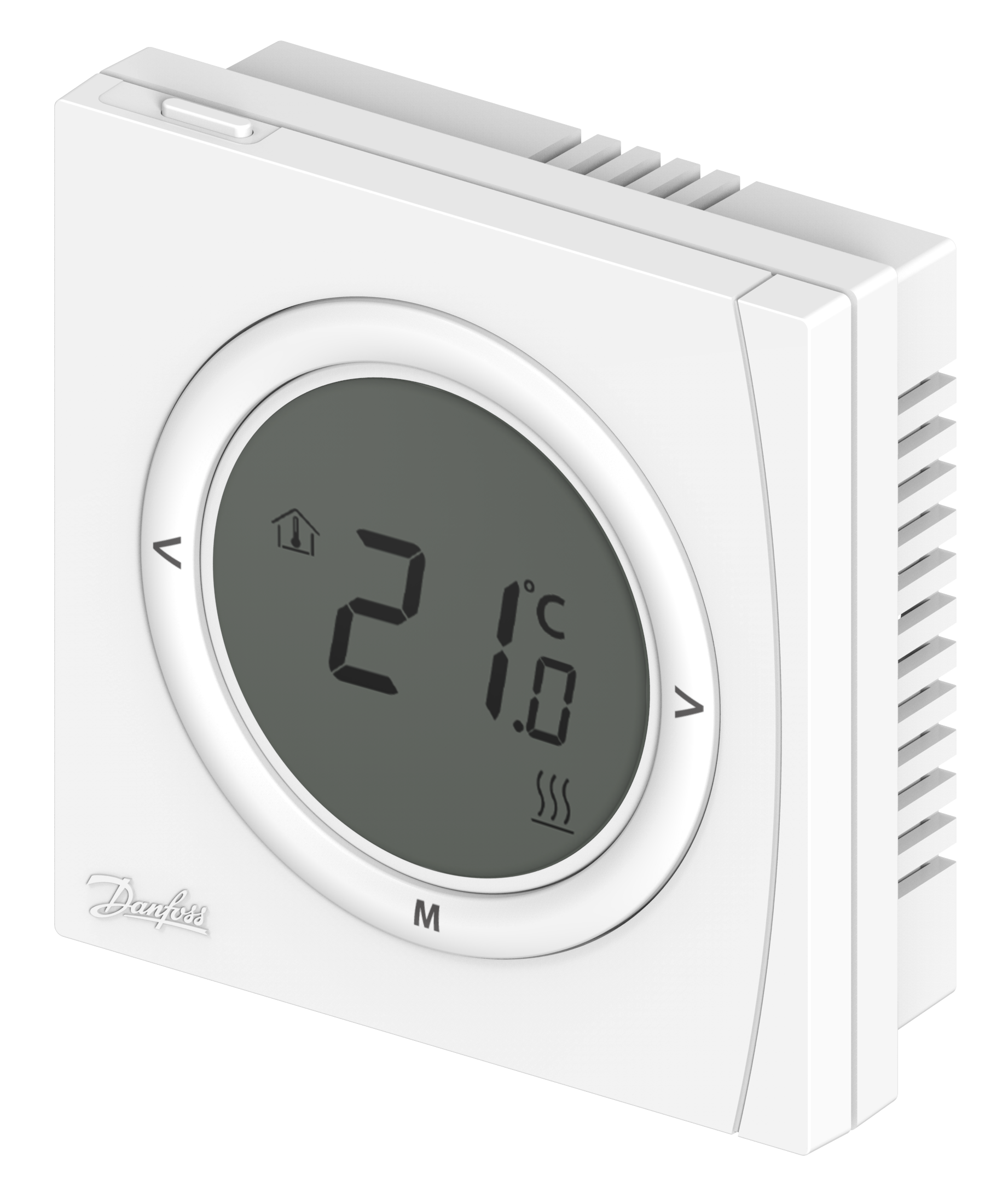

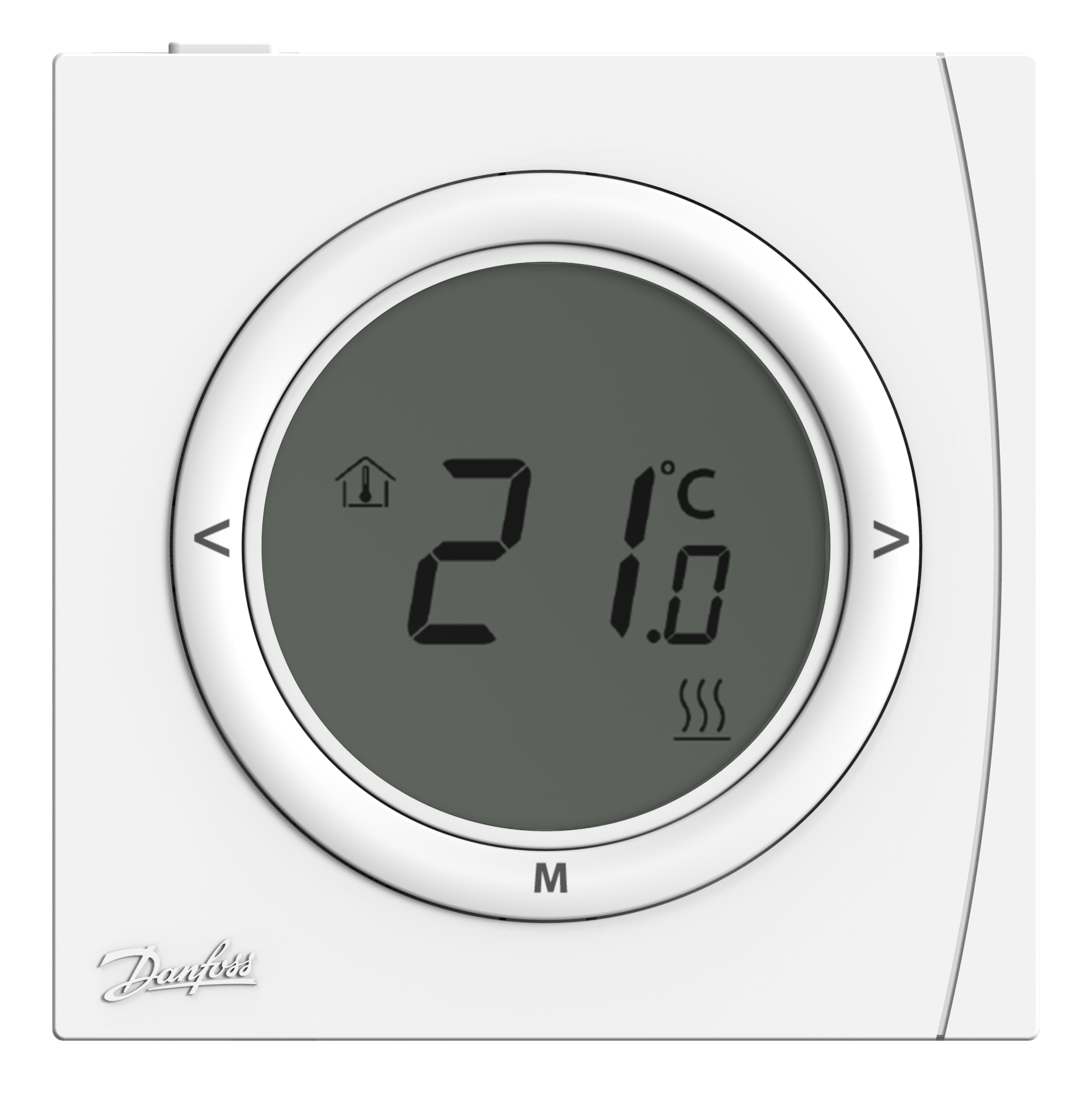

087N6478 Danfoss: RET2001OT, 24vdc powered digital room electronic thermostat to use with OpenTherm boilers
Gross weight
0.185 Kilogram
Net weight
0.185 Kilogram
Volume
0.69 Liter
EAN
5715162419229
Ambient temperature [°C] [max]
40 °C
Application
Room heating
Approval
CE,UKCA
Back lit display
Yes
Backplate
Custom Backplate
Ball hardness test [°C]
75 °C
Category name
Digital Thermostat
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour
White RAL 9010
Control pollution
Degree 2
Control type
Opentherm modulating control
Depth [mm]
43 mm
Description
RET2001OT, 24vdc powered digital room electronic thermostat to use with OpenTherm boilers
Design standard
EN 60730-2-9
EEE category
5 small equipment (any external dimension 50 cm)
Frost protection
Yes
Height [mm]
86 mm
In scope of WEEE
Yes
Installation
2 Wire
Material
ABS+PC, non-flammable
Modulating Control
Yes
Number of channels
1
On/Off control
Yes
On/off modulating control
Yes
Output relay rating inductive [A]
1 A
Output relay rating resistive [A]
3 A
Product description
RET2001 OT - V2
Product group
Room Thermostats, RET
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
1076e053-04a2-4646-987d-f4036bc6aef1
SCIP dossier product name
Electronic programmable room thermostat
Status indicator
Yes
Supply Type
24Vdc
Supply voltage [V] DC
24 V
Temperature limiter [°C] [Max]
35 °C
Temperature limiter [°C] [Min]
5 °C
Type
RET2001
UK RoHS compliance
Yes
UNSPSC CODE
41112209
Warranty [Year]
5
Width [mm]
86 mm
RET2001OT and TPOne-OT Electronic Room Thermostats (Data Sheet) RET2001OT - V2 OpenTherm RET2001OT Digital OpenTherm Room Thermostat (User Guide) Product Selection Guide 2022 v3 Danfoss EU-UK BF318239274741.05 RET2001_087N6476_6478_6473_6471_Left RET2001_087N6476_6478_6473_6471_Front RET2001_087N6476_6478_6473_6471_right RET2001 OT OpenTherm - V2 RET2001 OT OpenTherm - V2 RET2001M Living Room RET2001(TP5001)-M(OT)-V2_3D RET2001(TP5001)-M(OT)-V2_2D RET2001(TP5001)-M(OT)-V2_STEP RET_TP_V2_RFA
