087N7032
Part Number: 087N7032
Product Information
Extended Description

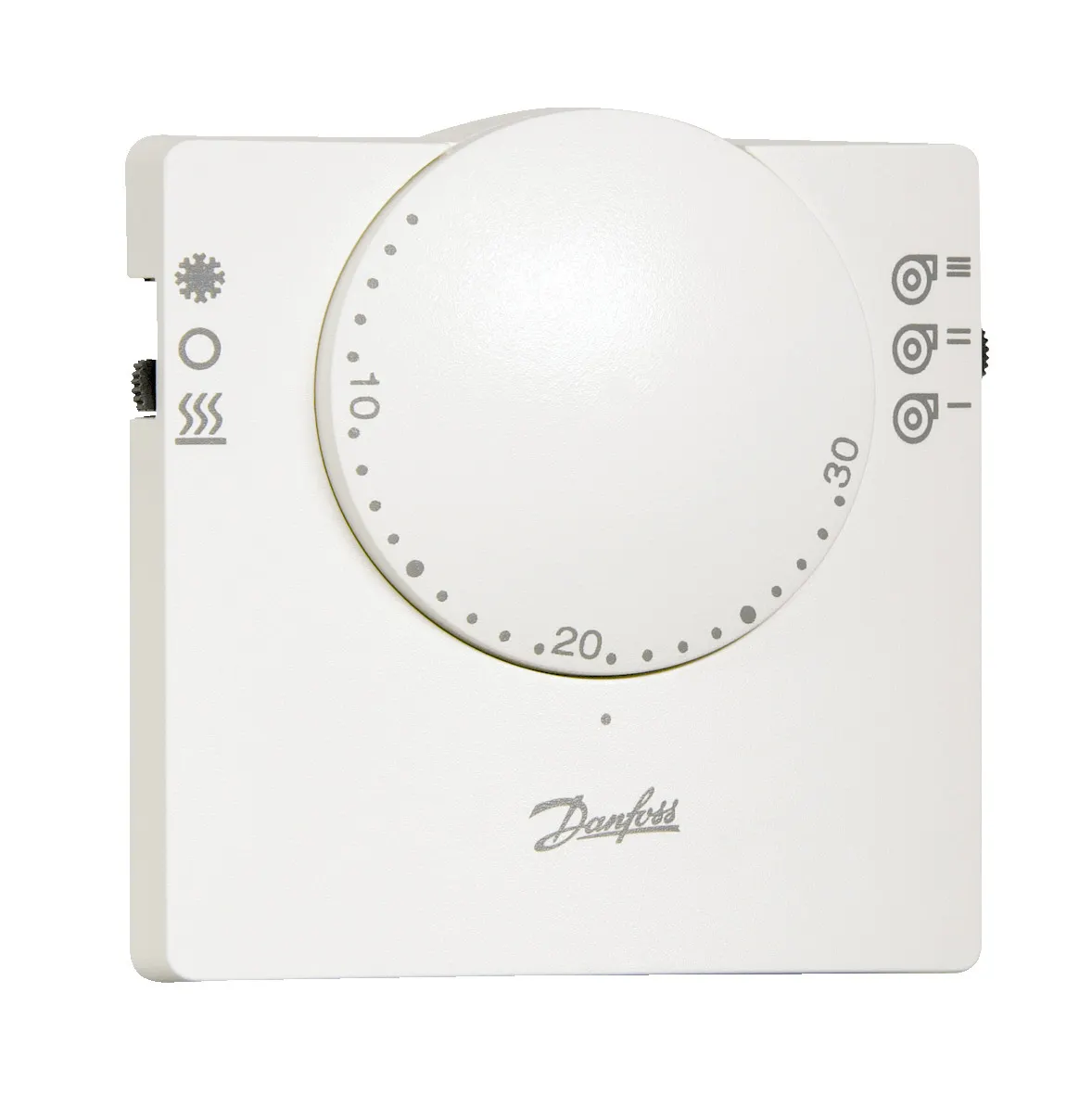

087N7032 Danfoss: Room thermostat with Heat/Off/Cool selector. For use in 2-pipe changeover systems.
Gross weight
0.178 Kilogram
Net weight
0.178 Kilogram
Volume
0.364 Liter
EAN
5013567873272
Ambient temperature [°C] [max]
45 °C
Ball hardness test [°C]
75 °C
Control pollution
Degree 2
Cooling option
Yes
Depth [mm]
42 mm
Description
Room thermostat with Heat/Off/Cool selector. For use in 2-pipe changeover systems.
Design standard
EN 60730-2-7
Fan output speed
3 speed
Frequency [Hz]
50/60 Hz
Height [mm]
86 mm
Media
A
On/Off control
Yes
Optional compressor time delay
Yes
Output relay rating inductive [A]
1 A
Output relay rating resistive [A]
3 A
Product group
Room Thermostats, RET
REACH Candidate List substances
No
Supply Type
230Vac
Supply voltage [V] AC
230 V
Switching differential [°C] [Max]
1 °C
Temperature [°C] [Max]
30 °C
Temperature [°C] [Min]
5 °C
Temperature accuracy
±1°C
Temperature limiter [°C] [Max]
30 °C
Temperature limiter [°C] [Min]
5 °C
Temperature Range (Cooling) [°C] [Max]
35 °C
Temperature Range (Cooling) [°C] [Min]
35 °C
Tolerance
±15%
Type
RET230-C
Width [mm]
85 mm
