087N7856

Part Number: 087N7856
087N7856
Manufacturer
Danfoss
Part number
087N7856
Category

Product Information

Extended Description

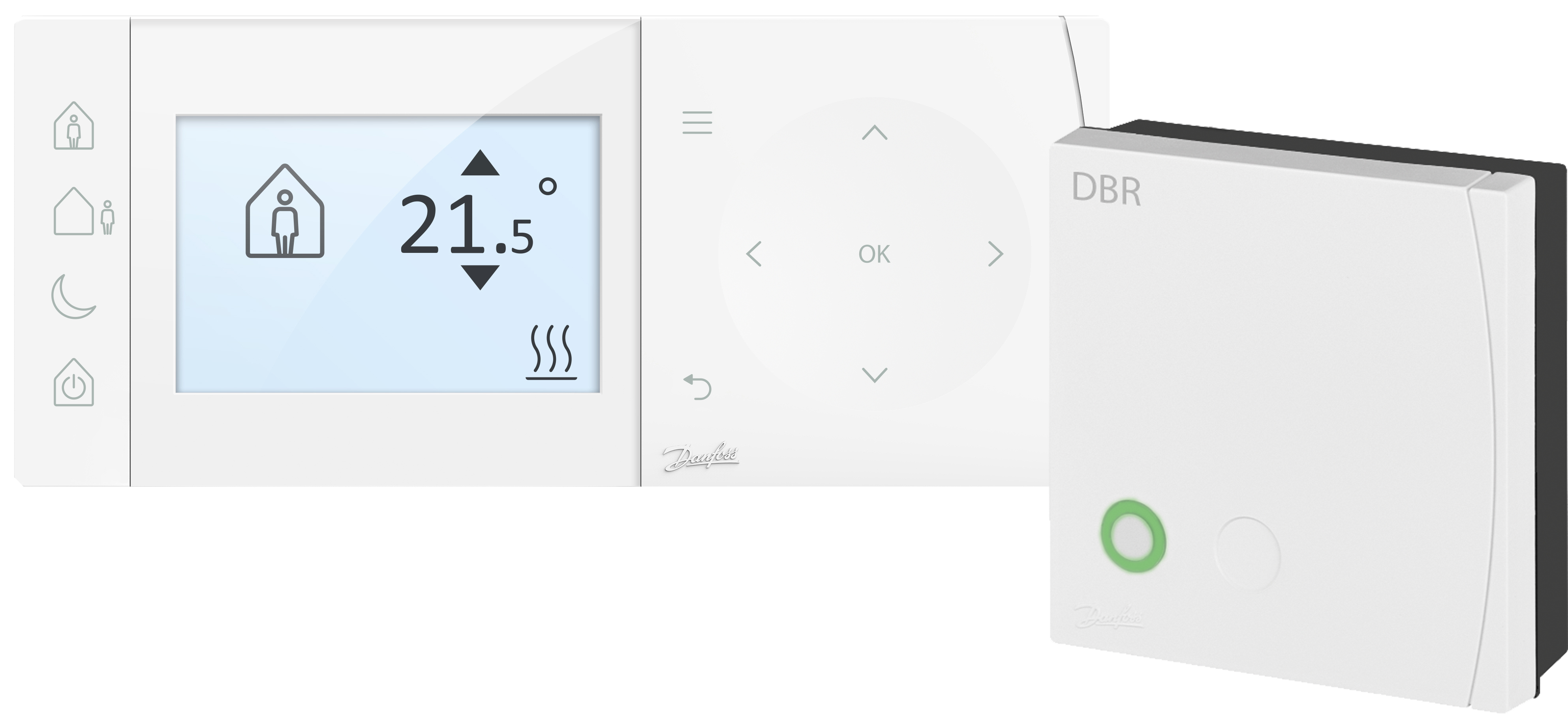

087N7856 Danfoss: TPOne-S + DBR Wi-Fi connected programmable room theromstat and RF receiver
Gross weight
0.47 Kilogram
Net weight
0.1 Kilogram
Volume
1.872 Liter
EAN
5013567423927
Ambient temperature [°C] [max]
45 °C
Ambient temperature [°C] [min]
0 °C
Application
Room heating
Approval
UKCA,CE
Automatic daylight saving
Yes
Back lit display
Yes
Backplate
Custom Backplate
Ball hardness test [°C]
75 °C
Built In sensor
Yes
Category name
Programable Thermostat
CE evaluated
Yes
China RoHS compliance
Out of scope
Clock display
AM/PM or 24 hour display
Colour
White RAL 9010
Control pollution
Degree 2
Control type
On/Off modulating control
Delayed start control
Yes
Depth [mm]
30 mm
Description
TPOne-S + DBR Wi-Fi connected programmable room theromstat and RF receiver
Design standard
EN 60730-2-9
Displays time or temperature
Yes
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Factory pre-set programmes
Yes
Factory set calendar clock
Yes
Frequency [Hz]
50 Hz
Frost protection
Yes
Height [mm]
66 mm
Holiday function
Yes
In scope of WEEE
Yes
Label product
Yes
Material
ABS+PC, non-flammable
Media
A
On/Off control
Yes
On/off modulating control
Yes
On/Offs Per Day
6
Optimum start control
Yes
Output relay rating inductive [A]
1 A
Output relay rating resistive [A]
3 A
Override function
Yes
Product description
TPOne-S + DBR
Product group
Programmable Room Thermostats
Rated impulse voltage [kV]
2.5 kV
REACH Candidate List substances
No
Remote sensor option
No
RF frequency [MHz]
868.42 MHz
RF range [m]
30 m
Schedule type
7 day, 5/2 day, 24 hour
Selectable °C or °F
Yes
Service Interval timer
Yes
Supply Type
230Vac
Supply voltage [V] AC
230 V
Switch off
Yes
Temperature [°C] [Max]
35 °C
Temperature [°C] [Min]
5 °C
Temperature accuracy
±1°C
Thermostat mode
Yes
Type
TPOne
UK RoHS compliance
Yes
UNSPSC CODE
41112209
Warranty [Year]
2
Width [mm]
155 mm
TPOne-S Datasheet TPOne-S Danfoss Electronic Room Controls Selection Guide Meet our newest controller Danfoss TPOne Product Selection Guide 2022 v3 Danfoss SoC 240312EN0380101.01 Danfoss EU-UK VCHSM102.02 TPOne-S + DBR_087N7856 TPOne RF + RX1-S RXS1-V2(DBR)_STEP RXS1-V2(DBR)_2D RXS1-V2(DBR)_3D TPOne_STEP TPOne_3D TPOne_2D TPOne_V2_RFA
