087N7858

Part Number: 087N7858
087N7858
Manufacturer
Danfoss
Part number
087N7858
Category

Product Information

Extended Description

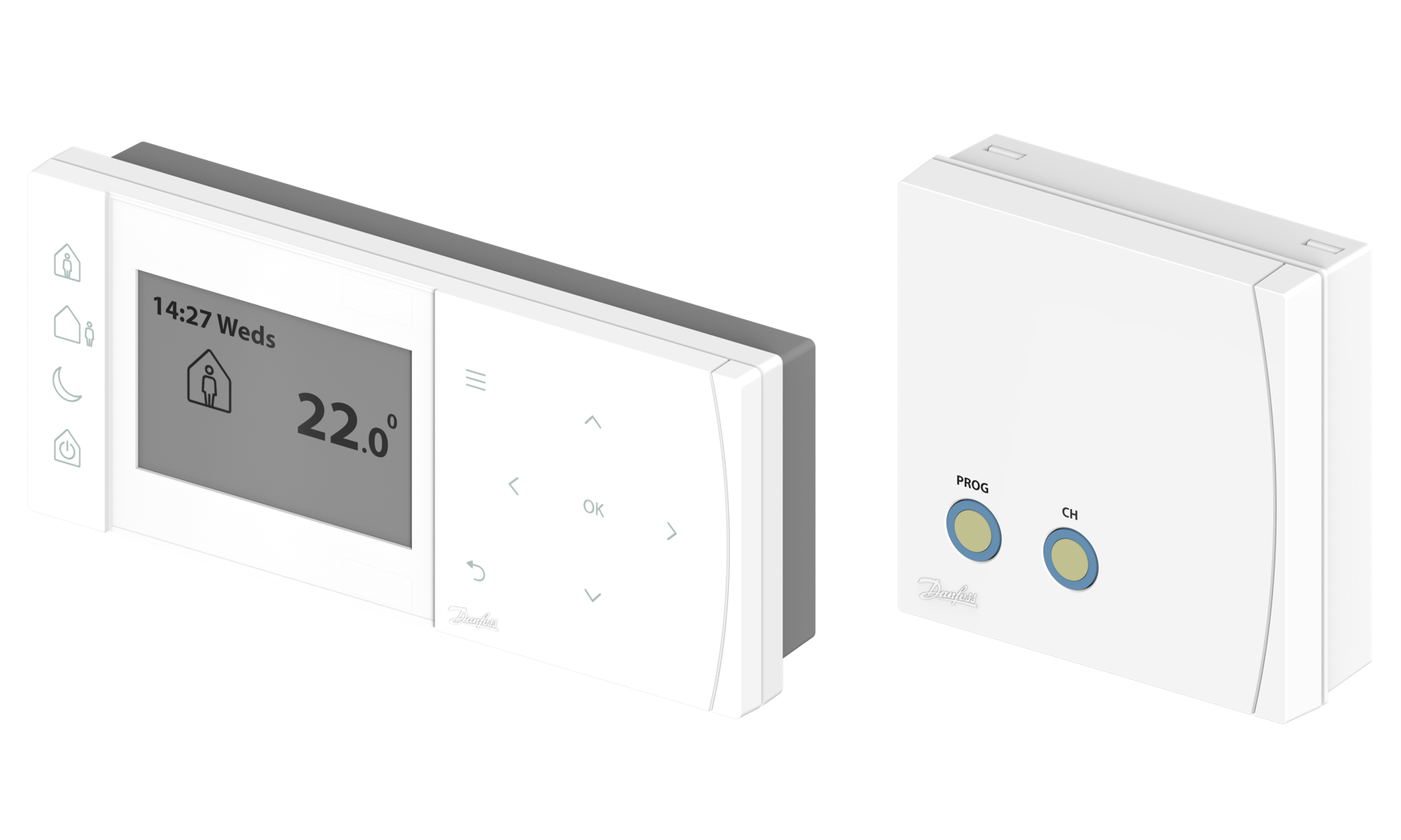

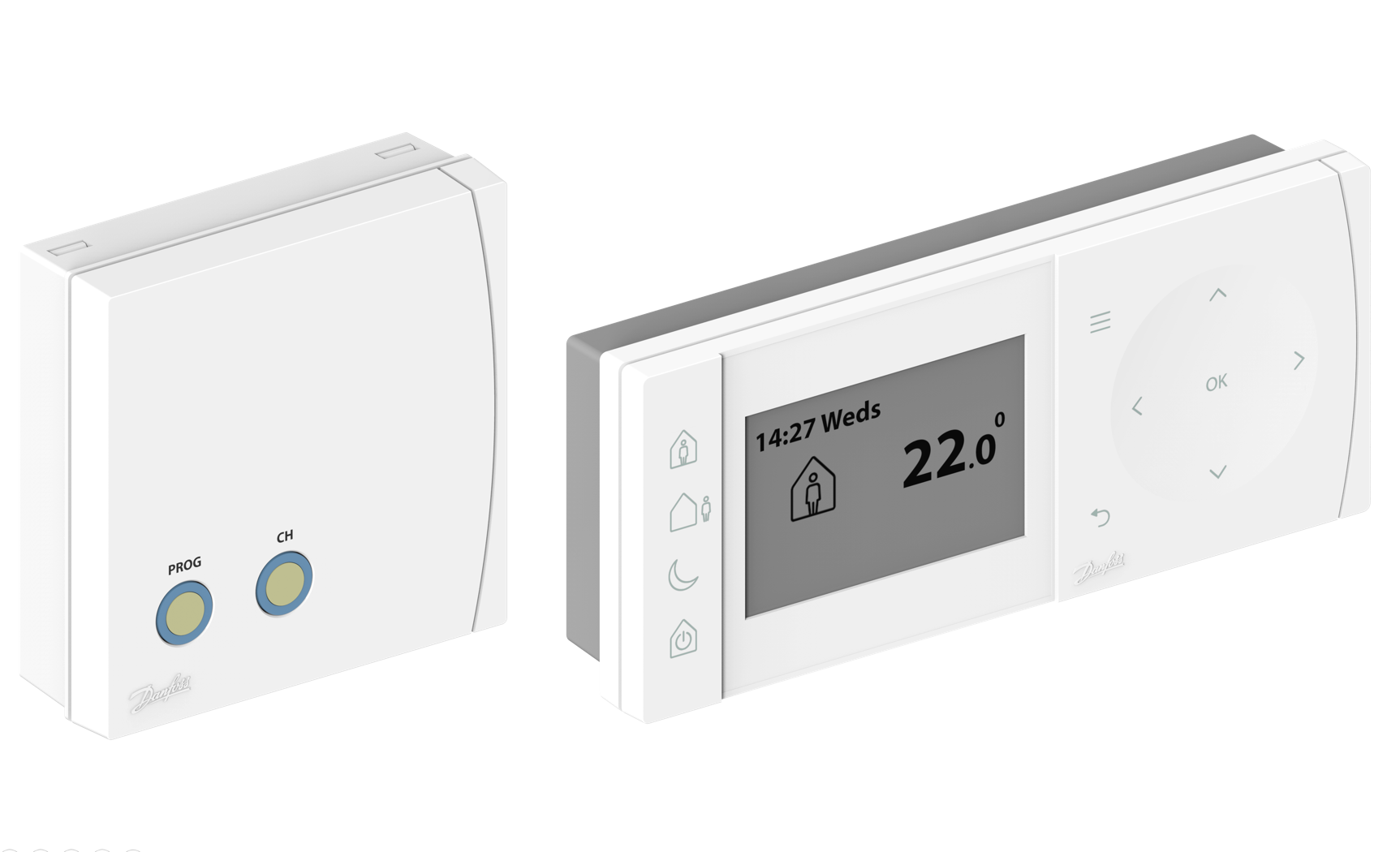

087N7858 Danfoss: TPOne-RF + RX1-S, Battery powered RF electronic programmable room thermostat and single channel RF receiver
Gross weight
0.52 Kilogram
Net weight
0.48 Kilogram
Volume
2.151 Liter
EAN
5715162419267
Ambient temperature [°C] [max]
45 °C
Application
Room heating
Approval
CE,UKCA
Automatic daylight saving
Yes
Back lit display
Yes
Backplate

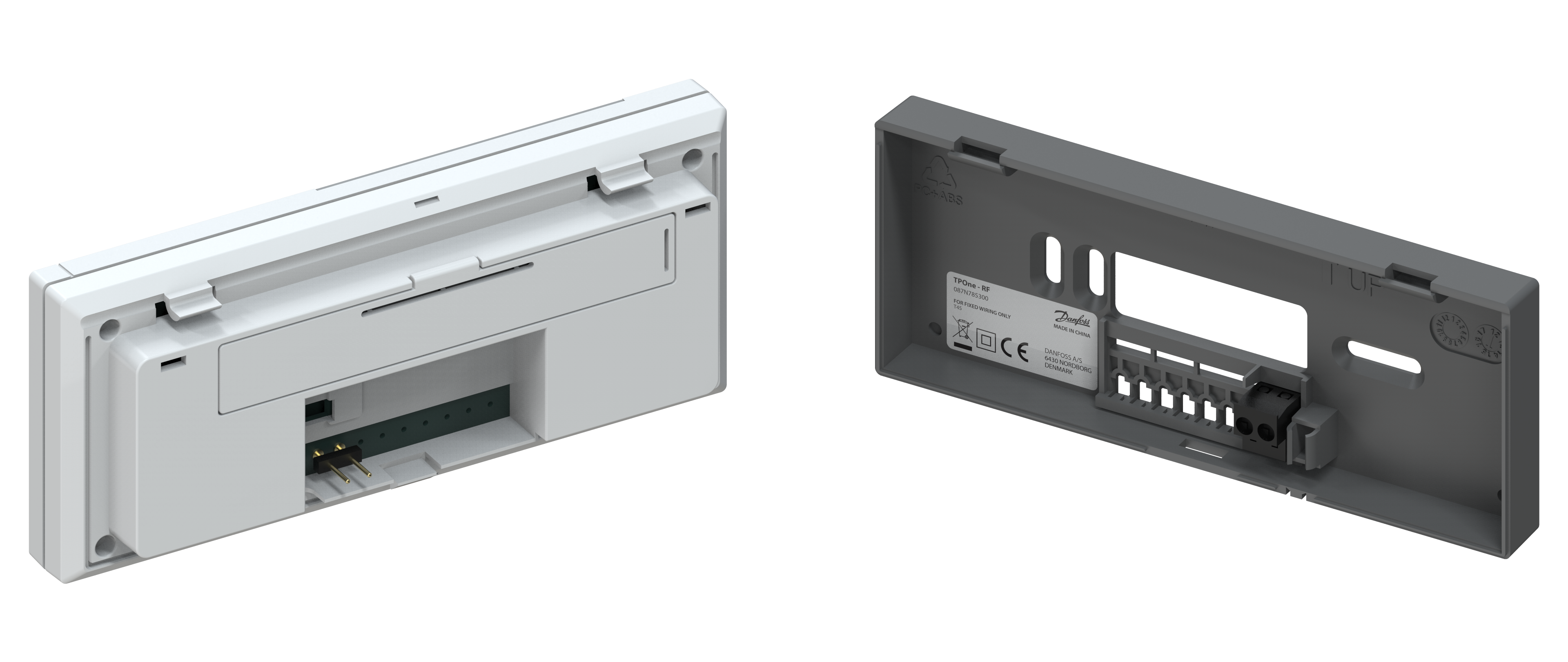

Industry Standard Backplate for RX1-S V2 Receiver
Ball hardness test [°C]
75 °C
Battery lifetime [Years]
2 yr
Battery type
2 x AA alkaline batteries
Built In sensor
Yes
Category name
Programable Thermostat
CE evaluated
Yes
China RoHS compliance
Out of scope
Clock display
AM/PM or 24 hour display
Colour
White RAL 9010
Contain batteries
Yes
Control pollution
Degree 2
Control type
On/Off load compensation
Delayed start control
Yes
Depth [mm]
30 mm
Description
TPOne-RF + RX1-S, Battery powered RF electronic programmable room thermostat and single channel RF receiver
Design standard
EN 60730-2-9
Displays time or temperature
Yes
EEE category
5 small equipment (any external dimension 50 cm)
Factory pre-set programmes
Yes
Factory set calendar clock
No
Frequency [Hz]
50/60 Hz
Frost protection
Yes
Height [mm]
66 mm
Holiday function
Yes
In scope of WEEE
Yes
Low battery indicator
Yes
Material
ABS+PC, non-flammable
Media
A
On/Off control
Yes
On/off modulating control
Yes
On/Offs Per Day
6
Optimum start control
Yes
Output relay rating inductive [A]
1 A
Output relay rating resistive [A]
3 A
Override function
Yes
Product description
TPOne- RF G + RX1-S, V2
Product group
Programmable Room Thermostats
Rated impulse voltage [kV]
2.5 kV
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Remote sensor option
Yes
RF frequency [MHz]
433.92 MHz
RF range [m]
30 m
Schedule type
7 day, 5/2 day, 24 hour
SCIP dossier no.
1076e053-04a2-4646-987d-f4036bc6aef1
SCIP dossier product name
Electronic programmable room thermostat
Selectable °C or °F
Yes
Service Interval timer
Yes
Supply Type
Batteries for thermostat + 230Vac for receiver
Supply voltage [V] AC
230 V
Switch off
Yes
Temperature [°C] [Max]
35 °C
Temperature [°C] [Min]
5 °C
Temperature accuracy
±1°C
Thermostat mode
Yes
Tolerance
±15%
Type
TPOne
UK RoHS compliance
Yes
UNSPSC CODE
41112209
Warranty [Year]
5
Width [mm]
155 mm
TPOne Series - Programmable Room Thermostat RX1-S RF V2 TPOne-RF Danfoss Electronic Room Controls Selection Guide TPOne-RF User Guide Meet our newest controller Danfoss TPOne Product Selection Guide 2022 v3 Danfoss EU-UK BF318239368742.03 087N7858 TPOneRF + RX1-S V2 R 087N7858 TPOneRF + RX1-S V2 F TPOne - RF + RX1-S - V2 TPOne - RF + RX1-S - V2 TPOne RF + RX1-S 087N7858 TPOneRF + RX1-S V2 L RXS1-V2(DBR)_STEP RXS1-V2(DBR)_2D RXS1-V2(DBR)_3D TPOne_STEP
