087N7859
Part Number: 087N7859
Product Information
Extended Description

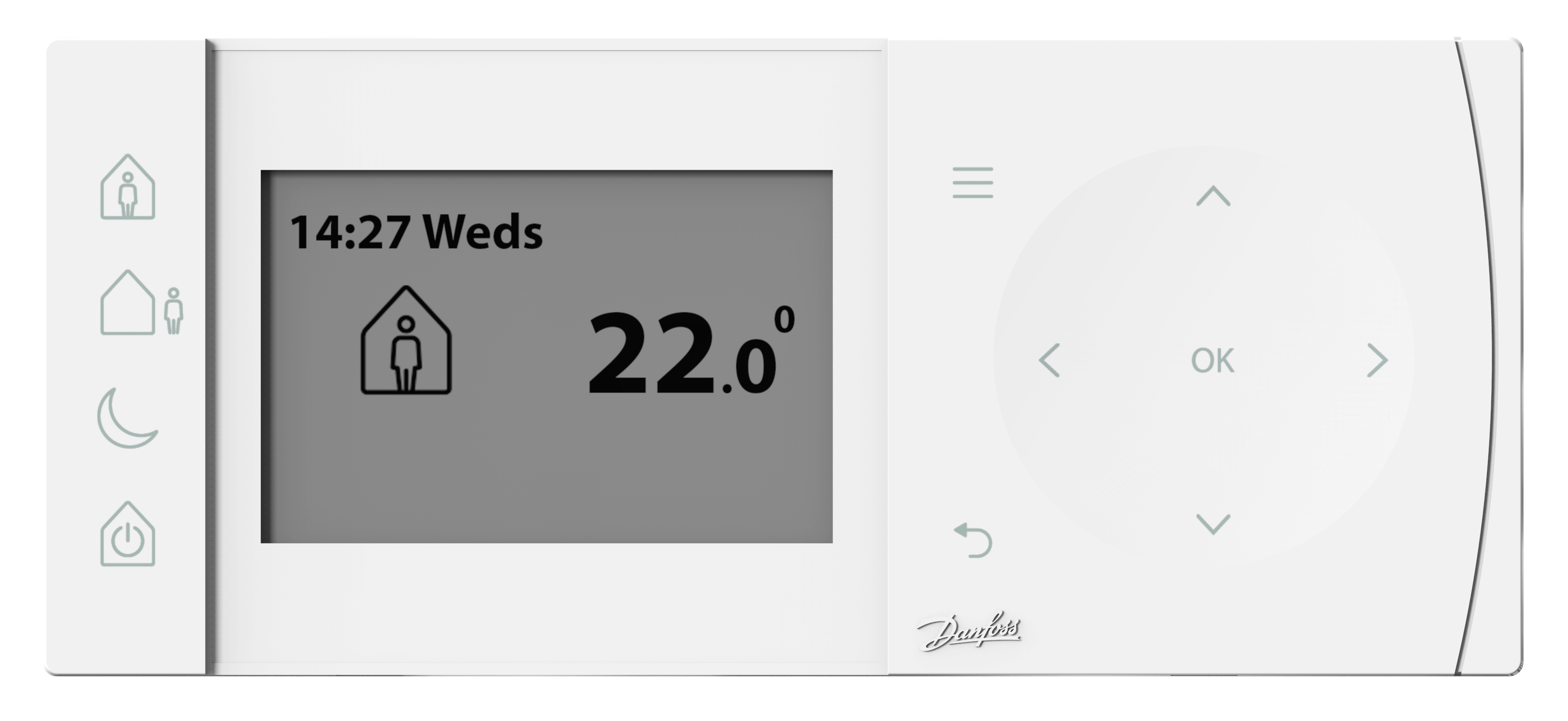

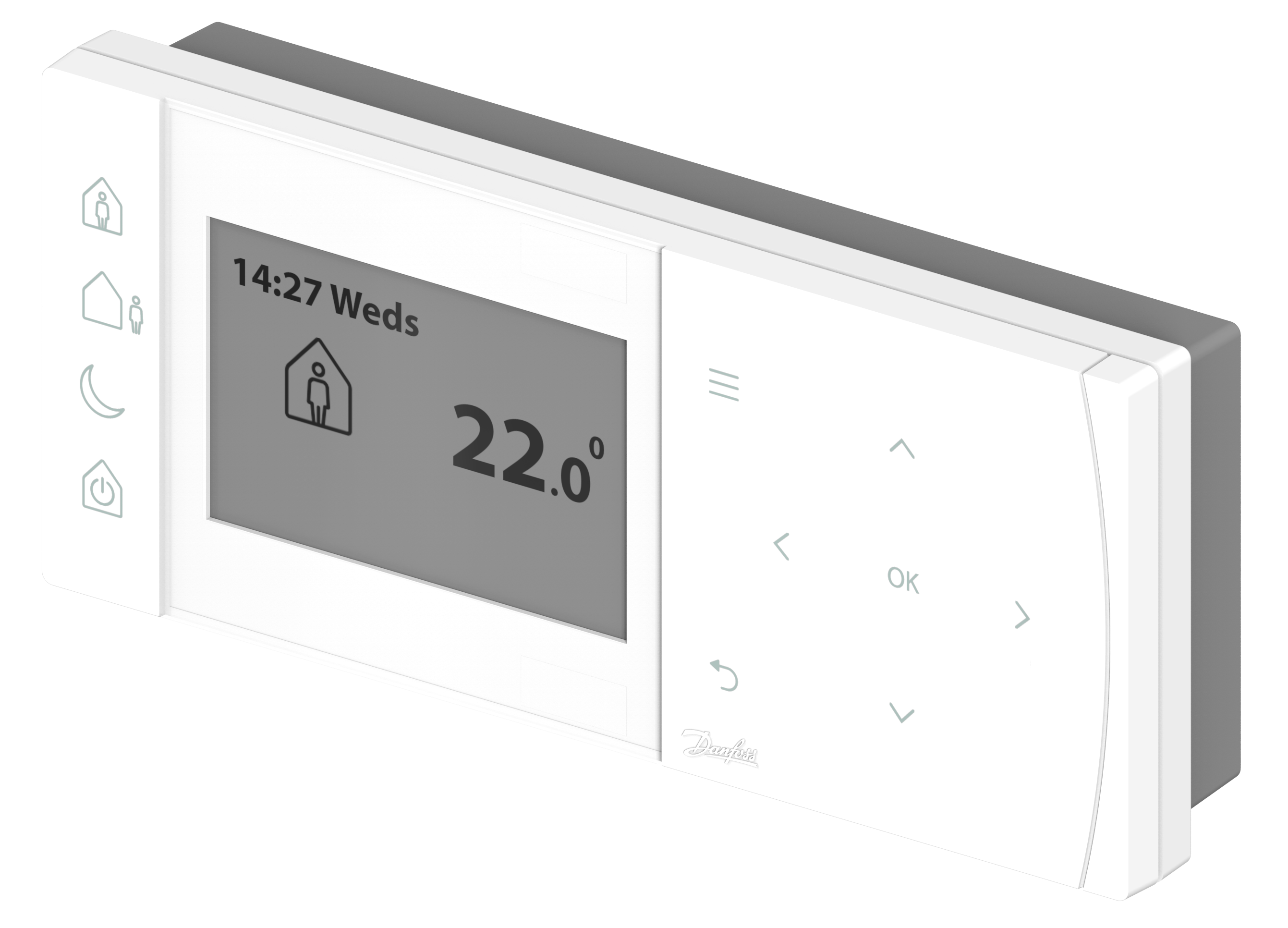

087N7859 Danfoss: TPOne OT, 24vdc powered Programmable thermostat to use with OpenTherm boilers
Gross weight
0.31 Kilogram
Net weight
0.15 Kilogram
Volume
0.882 Liter
EAN
5013567408801
1 Primary battery SUM weight Kg
0.046
1 Primary battery weight Kg
0.023
Ambient temperature [°C] [max]
45 °C
Application
Room heating
Approval
CE,UKCA
Automatic daylight saving
Yes
Back lit display
Yes
Backplate
Custom Backplate
Ball hardness test [°C]
75 °C
Built In sensor
Yes
Category name
Programable Thermostat
CE evaluated
Yes
China RoHS compliance
Out of scope
Clock display
AM/PM or 24 hour display
Colour
White RAL 9010
Contain batteries
Yes
Control pollution
Degree 2
Control type
On/Off load compensation
Delayed start control
Yes
Depth [mm]
30 mm
Description
TPOne OT, 24vdc powered Programmable thermostat to use with OpenTherm boilers
Design standard
EN 60730-2-9
Displays time or temperature
Yes
EEE category
5 small equipment (any external dimension 50 cm)
Factory pre-set programmes
Yes
Factory set calendar clock
No
Frost protection
Yes
Height [mm]
66 mm
Holiday function
Yes
In scope of WEEE
Yes
Label product
Yes
Material
ABS+PC, non-flammable
Media
A
On/Off control
Yes
On/off modulating control
Yes
On/Offs Per Day
6
Optimum start control
Yes
Output relay rating inductive [A]
1 A
Output relay rating resistive [A]
3 A
Override function
Yes
Product description
TPOne OT
Product group
Programmable Room Thermostats
Rated impulse voltage [kV]
4 kV
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Remote sensor option
Yes
Schedule type
7 day, 5/2 day, 24 hour
SCIP dossier no.
1076e053-04a2-4646-987d-f4036bc6aef1
SCIP dossier product name
Electronic programmable room thermostat
Selectable °C or °F
Yes
Service Interval timer
Yes
Supply Type
24Vdc
Switch off
Yes
Temperature [°C] [Max]
35 °C
Temperature [°C] [Min]
5 °C
Temperature accuracy
±1°C
Thermostat mode
Yes
Type
TPOne
UK RoHS compliance
Yes
UNSPSC CODE
41112209
Warranty [Year]
5
Width [mm]
155 mm
