088H0016
Part Number: 088H0016
Product Information
Extended Description

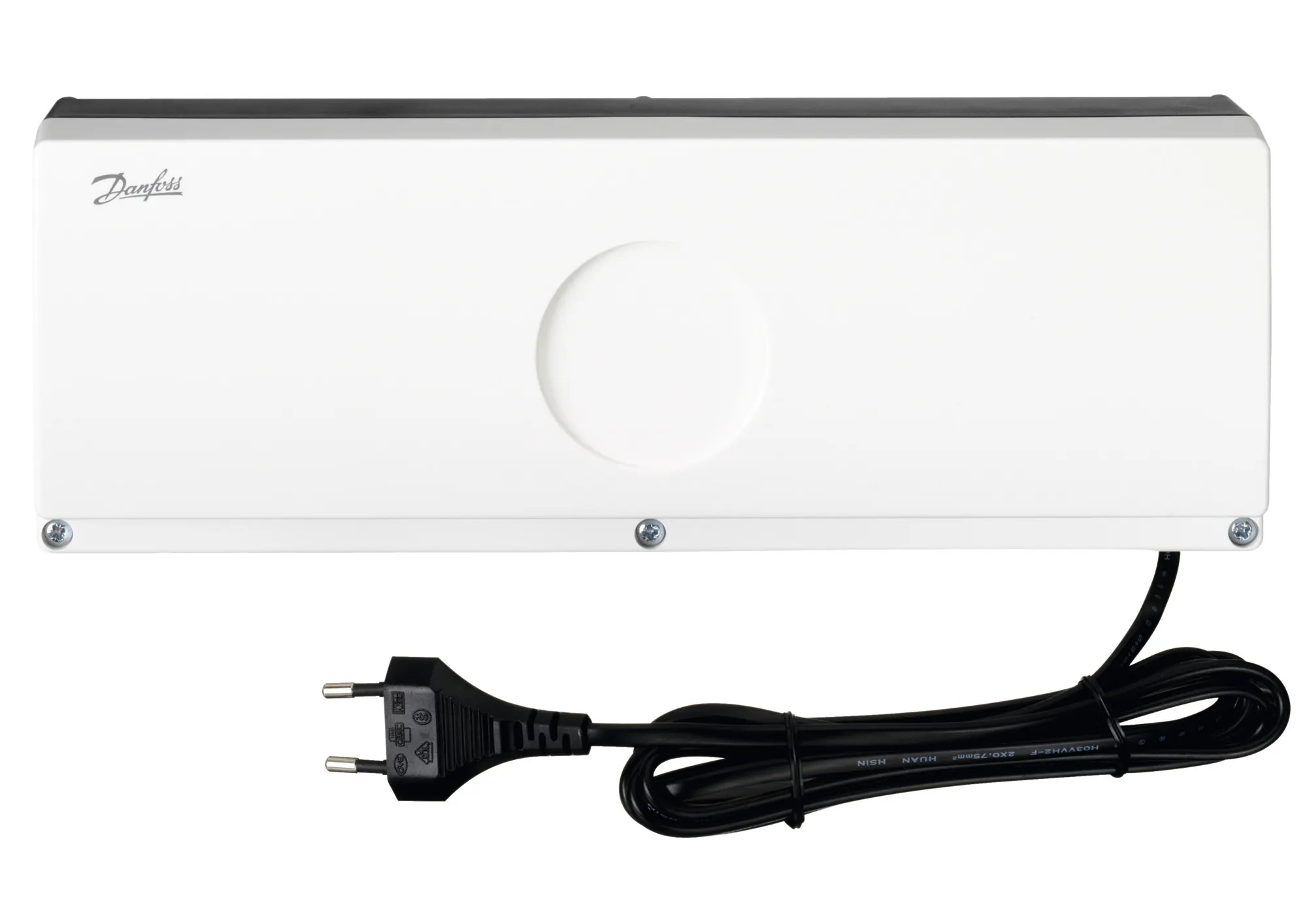

088H0016 Danfoss: FH-WC Connection Box 230V, Wired 230V
Gross weight
0.772 Kilogram
Net weight
0.757 Kilogram
Volume
4.941 Liter
EAN
5702420084701
Boiler relay
Yes
China RoHS compliance
Out of scope
Cooling input
No
Description
FH-WC Connection Box 230V
Dual mode
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
No
Heating control type
Wiring center
In scope of WEEE
Yes
In-wall
No
Installation
On-wall
Interfaces
Wired 230V
IP protection class
IP20
Number of channels
8
Number of outputs [pc]
8 pc
On-wall
Yes
Output voltage [V] AC
230 V
Power per output [W] [Max]
3 W
Product group
Floor Heating Controls
Pump relay
Yes
Quantity per packing format
4 pc
REACH Candidate List substances
No
Suitable for
230V actuators
Supply voltage [V]
230 V
Temperature control
Yes
Type
FH Connection Boxes
UK RoHS compliance
Out of scope
Usage
for 8 outputs
Hydronic floor heating - end-user brochure
FH-WC Connection Box - 230 VAC output
FH-WC Connection Box 230 V
FH-WF Floor Sensor
Danfoss Icon - Comfort control, made to blend in
Find optimal thermal comfort with underfloor heating systems
Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34
Danfoss EU VJSUD102.03
Hard wired control box
FH-WC 088H0016 open
