088H0017

Part Number: 088H0017
088H0017
Manufacturer
Danfoss
Part number
088H0017
Category

Product Information

Extended Description

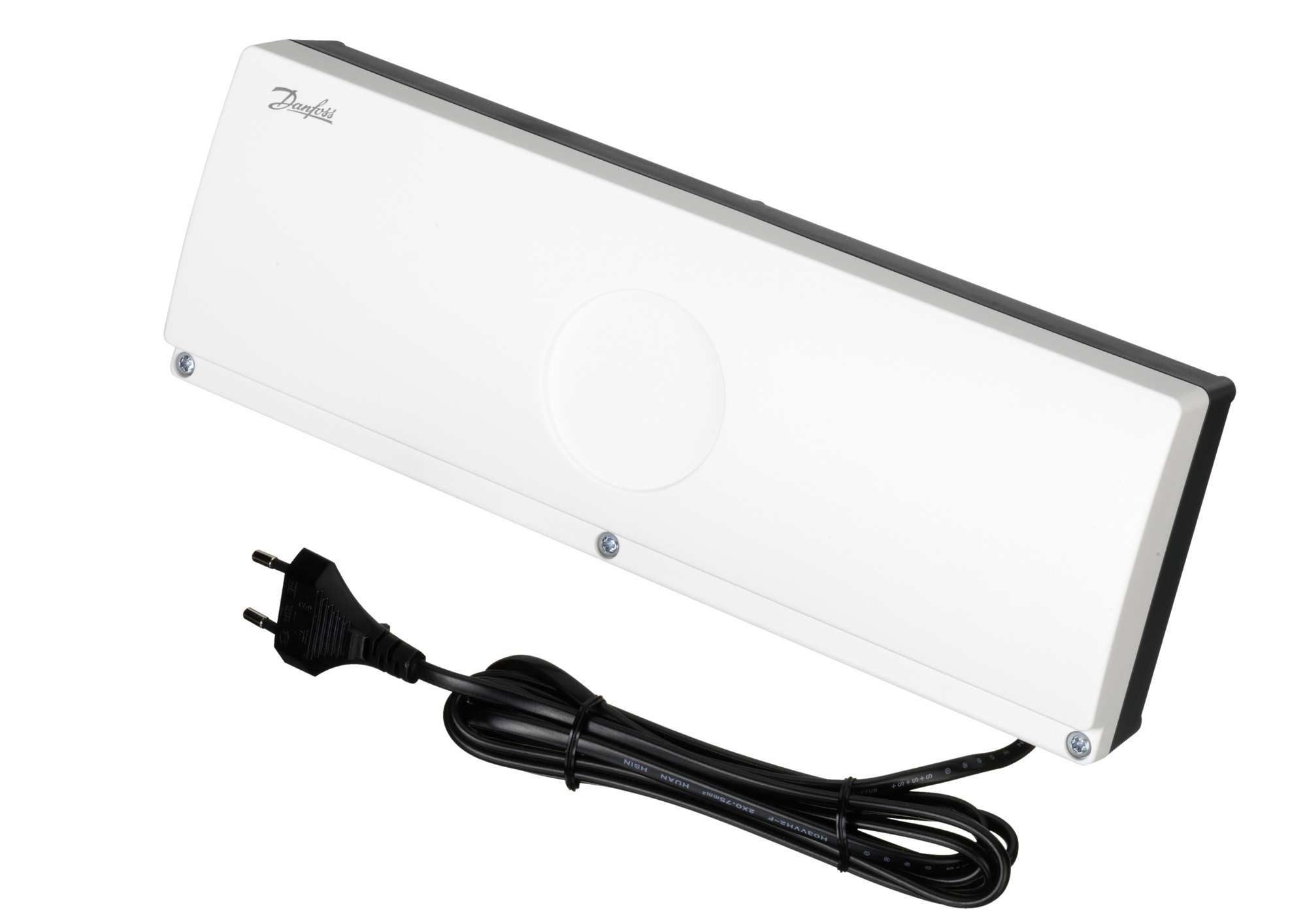

088H0017 Danfoss: FH-WC Connection Box 24V, Wired 24V
Gross weight
1.52 Kilogram
Net weight
1.52 Kilogram
Volume
4.907 Liter
EAN
5702420115825
Boiler relay
Yes
China RoHS compliance
Out of scope
Cooling input
No
Description
FH-WC Connection Box 24V
Dual mode
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
No
Heating control type
Wiring center
In scope of WEEE
Yes
In-wall
No
Installation
On-wall
Interfaces
Wired 24V
IP protection class
IP20
Number of channels
10
Number of outputs [pc]
10 pc
On-wall
Yes
Output voltage [V] AC
24 V
Power per output [W] [Max]
3 W
Product group
Floor Heating Controls
Pump relay
Yes
Quantity per packing format
4 pc
REACH Candidate List substances
No
Suitable for
24V actuators
Supply voltage [V]
230 V
Temperature control
Yes
Type
FH Connection Boxes
UK RoHS compliance
Out of scope
Usage
for 10 outputs
088H0025
FH-WF Floor Sensor
088H3140
Thermal actuators, TWA-K, M 30 x 1.5, Supply voltage [V] AC: 24, NC, 0.950 m
088H3110
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 24, NC, 0.950 m
088H3111
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 24, NO, 0.950 m
088H3141
Thermal actuators, TWA-K, M 30 x 1.5, NO, 0.950 m
Hydronic floor heating - end-user brochure FH-WC Connection Box - 24 VAC output FH-WC Connection Box, 24 V FH-WF Floor Sensor Danfoss Icon - Comfort control, made to blend in Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss EU VJSUD102.03 FH-WC 088H0017 FH-WC 088H0017-088H0018 FH-WC 088H0017 FH-WC 088H0017
