088H0022

Part Number: 088H0022
088H0022
Manufacturer
Danfoss
Part number
088H0022
Category

Product Information

Extended Description

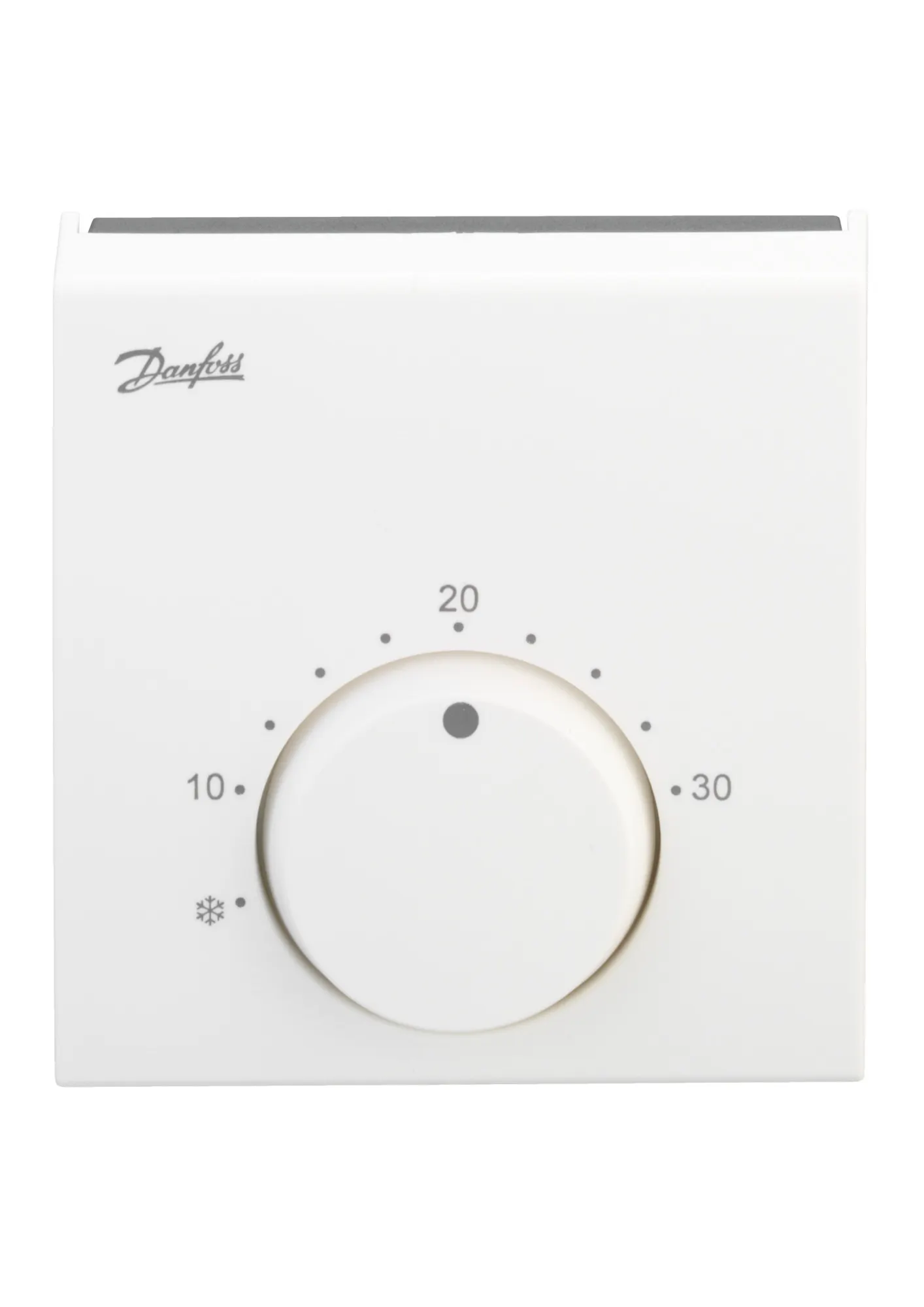

088H0022 Danfoss: FH-WT Room Thermostat, Standard, Wired 24V
Gross weight
0.094 Kilogram
Net weight
0.087 Kilogram
Volume
0.268 Liter
EAN
5702420052960
Actuator on radiator
No
Adaptive learning
No
Away input
No
Capacitive touch
No
Cooling input
No
Description
FH-WT Room Thermostat, Standard
Dual mode
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
No
Floor sensor enabled
No
Frequency range [Hz] [Max]
60 Hz
Frequency range [Hz] [Min]
50 Hz
Heating control type
Room Thermostat
In scope of WEEE
Yes
In-wall
No
Installation
On-wall
Interfaces
Wired 24V
IP protection class
IP20
NC/NO
NC
Noiseless switching
Yes
Number of actuators max
2
On-wall
Yes
Output voltage [V] AC
24 V
Product group
Floor Heating Controls
PWM
No
REACH Candidate List substances
No
Scheduling
No
Stem position
Standard
Suitable for
24V actuators
Supply voltage [V]
24 V
Tamper proof
No
Temperature control
Yes
Temperature limitation
No
Temperature set-back button
No
Temperature setting range [°C] [Max]
30 °C
Temperature setting range [°C] [Min]
6 °C
Thermal feedback
No
Type
FH Room Thermostats
Usage
Dial
Valve excercise
No
088H3140
Thermal actuators, TWA-K, M 30 x 1.5, Supply voltage [V] AC: 24, NC, 0.950 m
088H0025
FH-WF Floor Sensor
088H3110
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 24, NC, 0.950 m
088H3111
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 24, NO, 0.950 m
088H3141
Thermal actuators, TWA-K, M 30 x 1.5, NO, 0.950 m
