088H0024

Part Number: 088H0024
088H0024
Manufacturer
Danfoss
Part number
088H0024
Category

Product Information

Extended Description

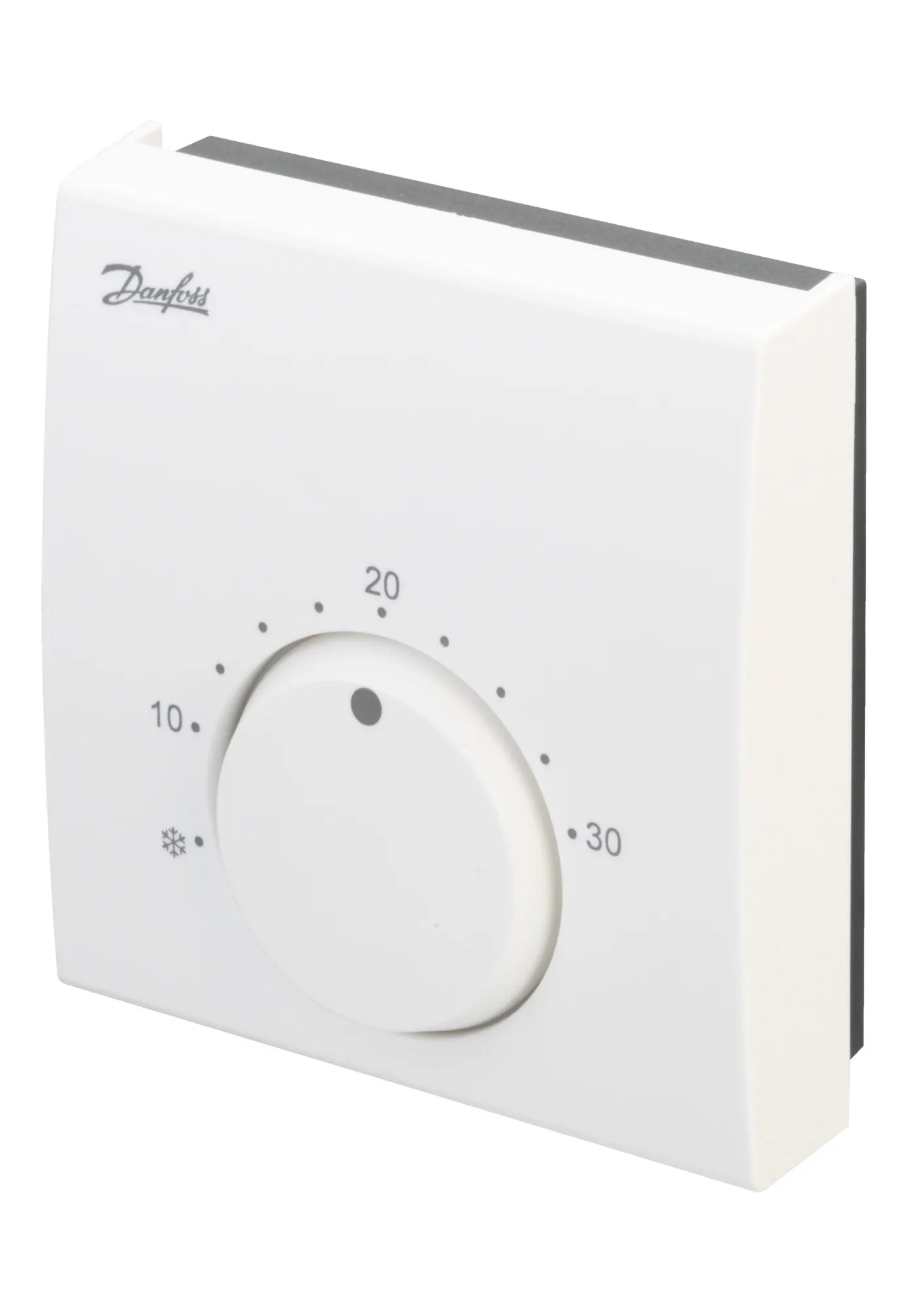

088H0024 Danfoss: FH-WS Room Thermostat, Featured, Wired 24V
Gross weight
0.098 Kilogram
Net weight
0.093 Kilogram
Volume
0.268 Liter
EAN
5702420053004
Actuator on radiator
No
Adaptive learning
No
Away input
No
Capacitive touch
No
Cooling input
No
Description
FH-WS Room Thermostat, Featured
Dual mode
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
No
Floor sensor enabled
Yes
Floor sensor option
Yes
Frequency range [Hz] [Max]
60 Hz
Frequency range [Hz] [Min]
50 Hz
Heating control type
Room Thermostat
In scope of WEEE
Yes
In-wall
No
Installation
On-wall
Interfaces
Wired 24V
IP protection class
IP20
NC/NO
NC
Noiseless switching
Yes
Number of actuators max
2
On-wall
Yes
Output voltage [V] AC
24 V
Product group
Floor Heating Controls
PWM
No
REACH Candidate List substances
No
Scheduling
No
Setback function
yes
Stem position
Featured, opt. floor sensor
Suitable for
24V actuators
Supply voltage [V]
24 V
Tamper proof
No
Temperature control
Yes
Temperature limitation
No
Temperature set-back button
Yes
Temperature setting range [°C] [Max]
30 °C
Temperature setting range [°C] [Min]
6 °C
Thermal feedback
Yes
Type
FH Room Thermostats
Usage
Featured
Valve excercise
No
088H0025
FH-WF Floor Sensor
088H3110
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 24, NC, 0.950 m
088H3111
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 24, NO, 0.950 m
088H3140
Thermal actuators, TWA-K, M 30 x 1.5, Supply voltage [V] AC: 24, NC, 0.950 m
088H3141
Thermal actuators, TWA-K, M 30 x 1.5, NO, 0.950 m
