088L6543
Part Number: 088L6543
Product Information
Extended Description

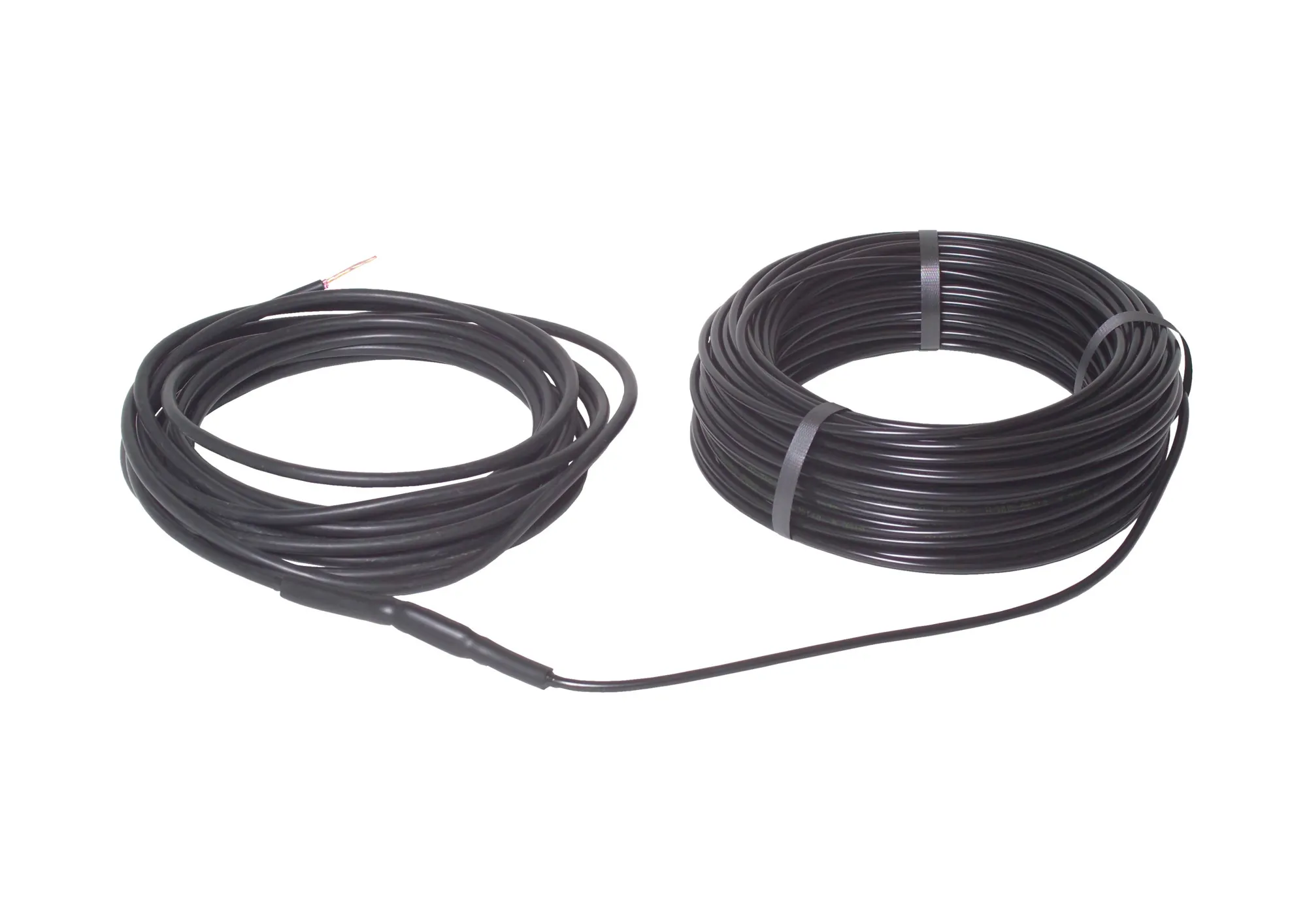

088L6543 Danfoss: Cable type: Twin conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Asphalt ice and snow melting
Gross weight
14.66 Kilogram
Net weight
14.513 Kilogram
Volume
40.432 Liter
EAN
5703466246740
Application
Asphalt ice and snow melting
Approval
CE
Bending diameter [mm] [Min]
42 mm
Cable diameter [mm]
7 mm
Cable length [m]
190 m
Cable on drum
No
Cable output [W/m]
30 W/m
Cable resistance [Ohm]
28
Cable screen
Alufoil 100%
Cable type
Twin conductor
CE evaluated
Yes
Certification company
Intertek Semko
China RoHS compliance
Out of scope
Cold lead
Yes
Cold lead conductor quantity
2
Cold lead length [m]
10 m
Cold lead quantity
1
Cold lead size [mm=C2=B2]
2.5 mm=C2=B2
Cold lead type
DTWK
Conductor insulation
FEP
Contain batteries
No
Cut to length
No
Deformation strength [N]
Description
ECasphalt 30T 190m 400V 5770W
Element IP Class
IPX7
EPD available
Yes
EU RoHS compliance
Yes
Flame retardant
Yes
Heating output [W]
5770 W
Heating principle
Serial resistive
Installation temperature [=C2=B0C] [Min]
-5 =C2=B0C
Lead free
Yes
Non operating temperature [=C2=B0C] [Max]
85 =C2=B0C
Operating temperature [=C2=B0C] [max]
60 =C2=B0C
Outer sheath
XPLO
Outer sheath colour
Black
Package depth [mm]
386 mm
Package height [mm]
280 mm
Package width [mm]
386 mm
Product group
Heating Cables
Product version
Ready-made
Pulling strength [N]
REACH Candidate List substances
No
Short period temperature [=C2=B0C] [Max]
240 =C2=B0C
Supply voltage [V] AC
400 V
Type
ECasphalt 30T
UK RoHS compliance
Yes
UL evaluated
Out of scope
UV Protected
Yes
Warranty [Year]
20
Warranty type
20-year full service warranty
140F0902
Accessories, Cold tails drum, 1.00 m
18055355
Accessories, Connection kits resistive cables
088L1053
Accessories, Easy Installation Danfoss
088L1054
Accessories, Easy Installation Danfoss
