088U0505

Part Number: 088U0505
088U0505
Manufacturer
Danfoss
Part number
088U0505
Category

Product Information

Extended Description

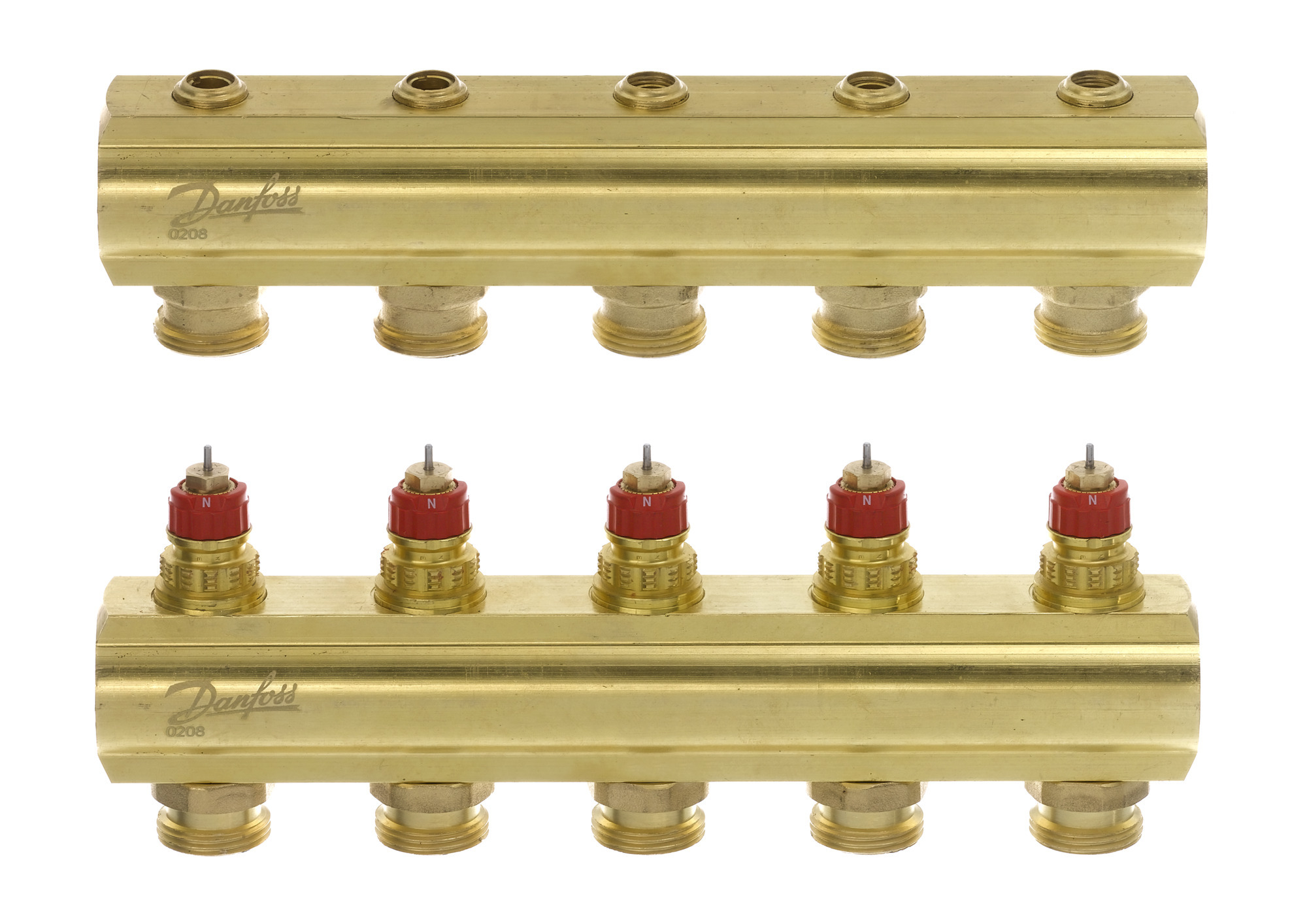

088U0505 Danfoss: Manifold 5+5 Danfoss BIV
Gross weight
3 Kilogram
Net weight
3 Kilogram
Volume
2.624 Liter
EAN
5702420080840
Bleed valve
Not included
China RoHS compliance
Out of scope
Description
Manifold 5+5 Danfoss BIV
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow temperature [°C] [Max]
90 °C
Flowmeter
No
Material
BRASS
Number of heating manifold connections [loops] [Max]
5
Operating temperature [°C] [max]
90 °C
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
0f2f0bac-966c-4b04-9308-d05f77ce531d
SCIP dossier product name
Manifold x+x Danfoss BIV
Test pressure [bar]
16 bar
Type
Manifold FHF
UK RoHS compliance
Out of scope
Valve connection
Danfoss RA
Working pressure [bar] [Max]
10 bar
013G7376
Service built-in valve for manifold
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0582
End Cap
088U0583
Connection Piece
088U0587
Manifold insulation for FHF & FH-ME
088U0676
Bypass end piece for FHF
088U0584
Reducing Bush
088U0595
Manifold bracket for cabinet
088U0675
Bypass end-piece for FHH manifold
088U0785
Automatic air vent with three way ball valve
