088U0509

Part Number: 088U0509
088U0509
Manufacturer
Danfoss
Part number
088U0509
Category

Product Information

Extended Description

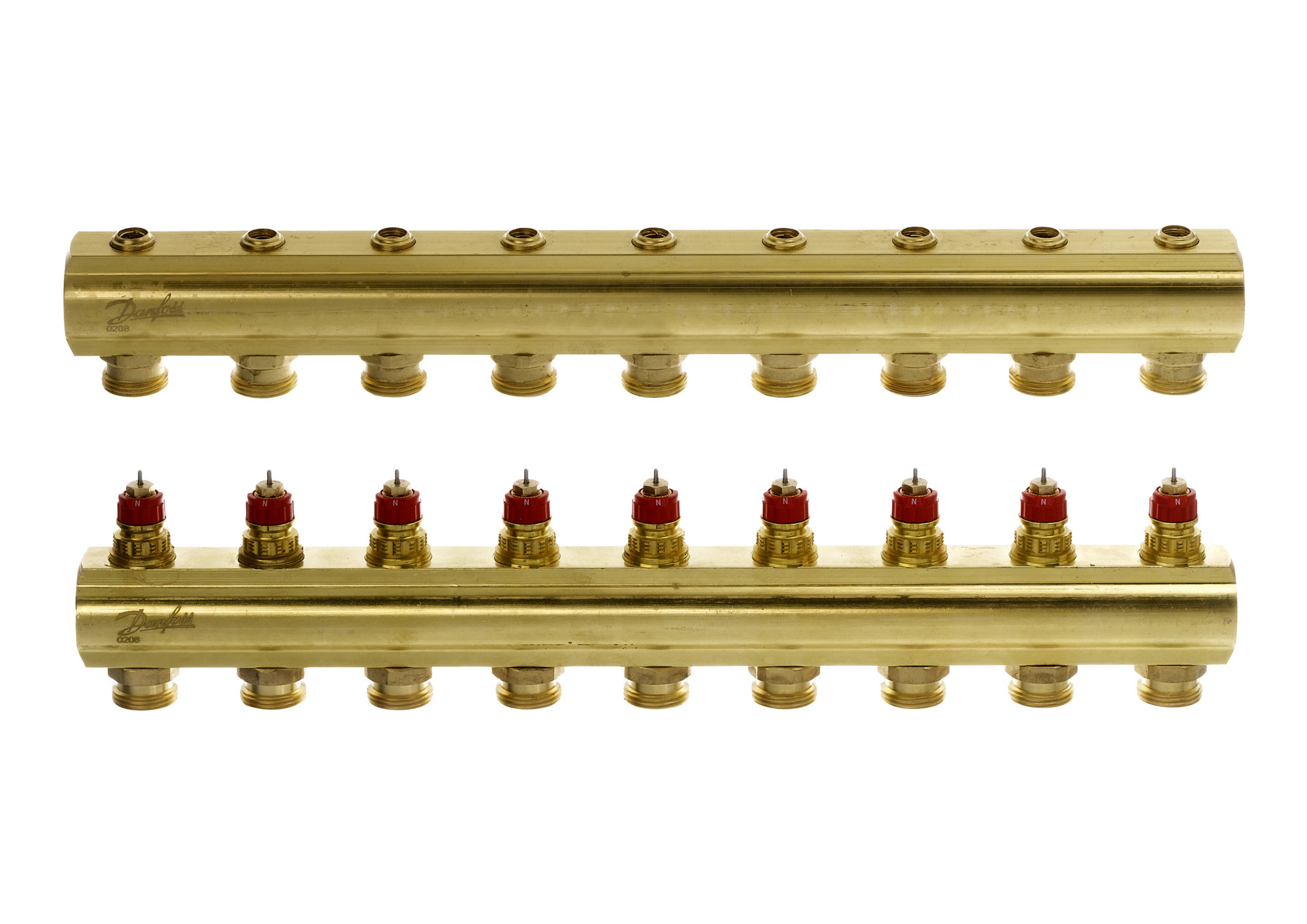

088U0509 Danfoss: Manifold 9+9 Danfoss BIV
Gross weight
5.346 Kilogram
Net weight
5.346 Kilogram
Volume
4.752 Liter
EAN
5702420080888
Bleed valve
Not included
China RoHS compliance
Out of scope
Description
Manifold 9+9 Danfoss BIV
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow temperature [°C] [Max]
90 °C
Flowmeter
No
Material
BRASS
Number of heating manifold connections [loops] [Max]
9
Operating temperature [°C] [max]
90 °C
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
0f2f0bac-966c-4b04-9308-d05f77ce531d
SCIP dossier product name
Manifold x+x Danfoss BIV
Test pressure [bar]
16 bar
Type
Manifold FHF
UK RoHS compliance
Out of scope
Valve connection
Danfoss RA
Working pressure [bar] [Max]
10 bar
013G7376
Service built-in valve for manifold
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0582
End Cap
088U0583
Connection Piece
088U0587
Manifold insulation for FHF & FH-ME
088U0595
Manifold bracket for cabinet
088U0676
Bypass end piece for FHF
088U0785
Automatic air vent with three way ball valve
088U0786
Manual air vent with three way ball valve
088U0820
Manifold union nut, 1"
