088U0512

Part Number: 088U0512
088U0512
Manufacturer
Danfoss
Part number
088U0512
Category

Product Information

Extended Description

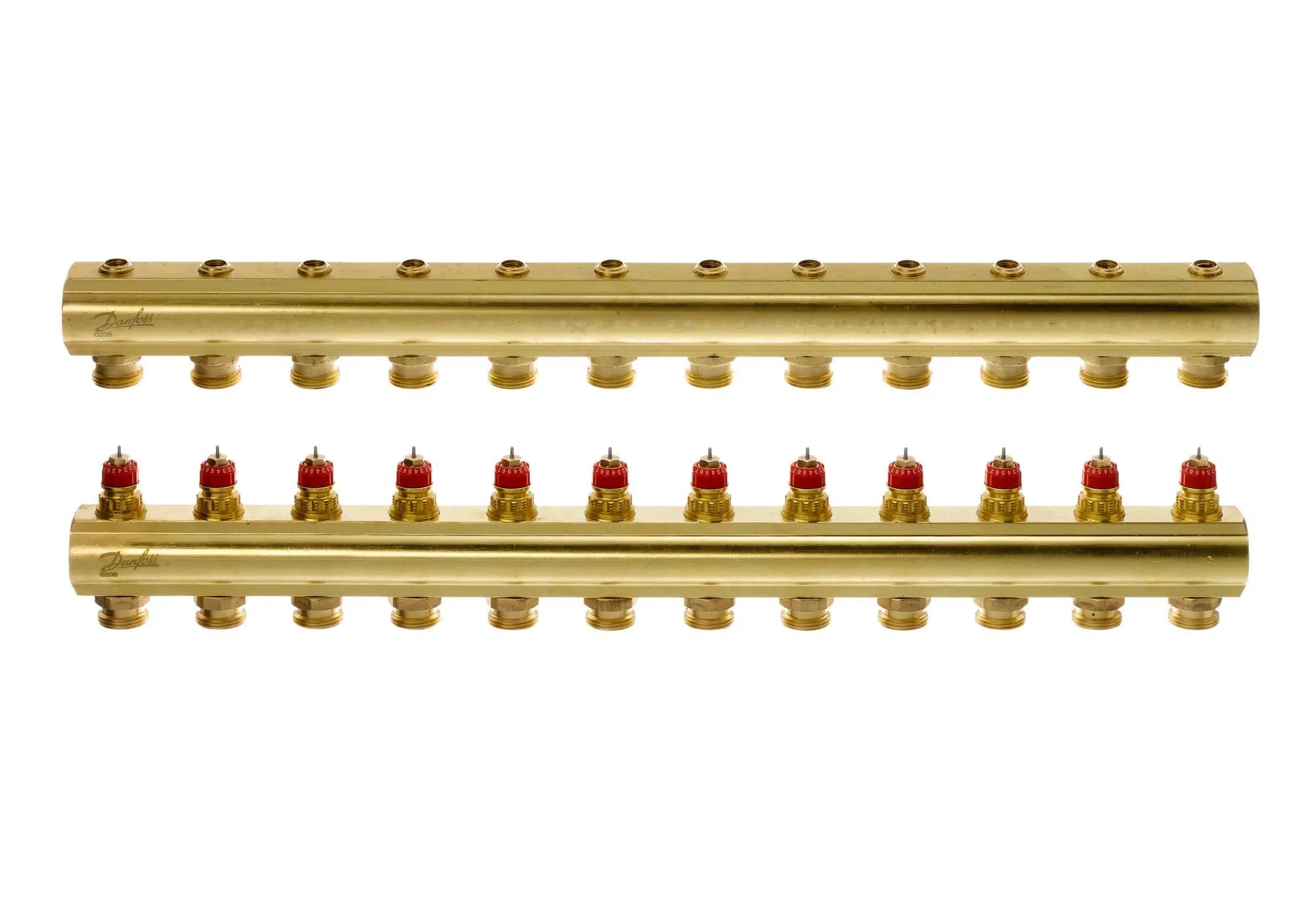

088U0512 Danfoss: Manifold 12+12 Danfoss BIV
Gross weight
7.304 Kilogram
Net weight
7.304 Kilogram
Volume
6.188 Liter
EAN
5702420080918
Bleed valve
Not included
China RoHS compliance
Out of scope
Description
Manifold 12+12 Danfoss BIV
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Out of scope
Flow temperature [°C] [Max]
90 °C
Flowmeter
No
Material
BRASS
Number of heating manifold connections [loops] [Max]
12
Operating temperature [°C] [max]
90 °C
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
No
Test pressure [bar]
16 bar
Type
Manifold FHF
UK RoHS compliance
Out of scope
Valve connection
Danfoss RA
Working pressure [bar] [Max]
10 bar
013G7376
Service built-in valve for manifold
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0582
End Cap
088U0583
Connection Piece
088U0584
Reducing Bush
088U0587
Manifold insulation for FHF & FH-ME
088U0595
Manifold bracket for cabinet
088U0676
Bypass end piece for FHF
088U0785
Automatic air vent with three way ball valve
088U0786
Manual air vent with three way ball valve
Hydronic floor heating - end-user brochure FHF Floor Heating Manifold Connecting Danfoss Composite Pipes to FHF Manifold FHF Manifold without Flowmeter FHF Manifold without Flowmeter and with Shut-off Replacement valve for SSM/FHF Manifold Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss MD 088U0502.01 FHF-12 088U0512 FHF_12+12_088U0512_2D FHF_12+12_088U0512_3D FHF_12+12_088U0512_STEP Manifold FHF_2-12_RFA Manifold FHF_2-12_TWA-A_RFA
