088U0523

Part Number: 088U0523
088U0523
Manufacturer
Danfoss
Part number
088U0523
Category

Product Information

Extended Description

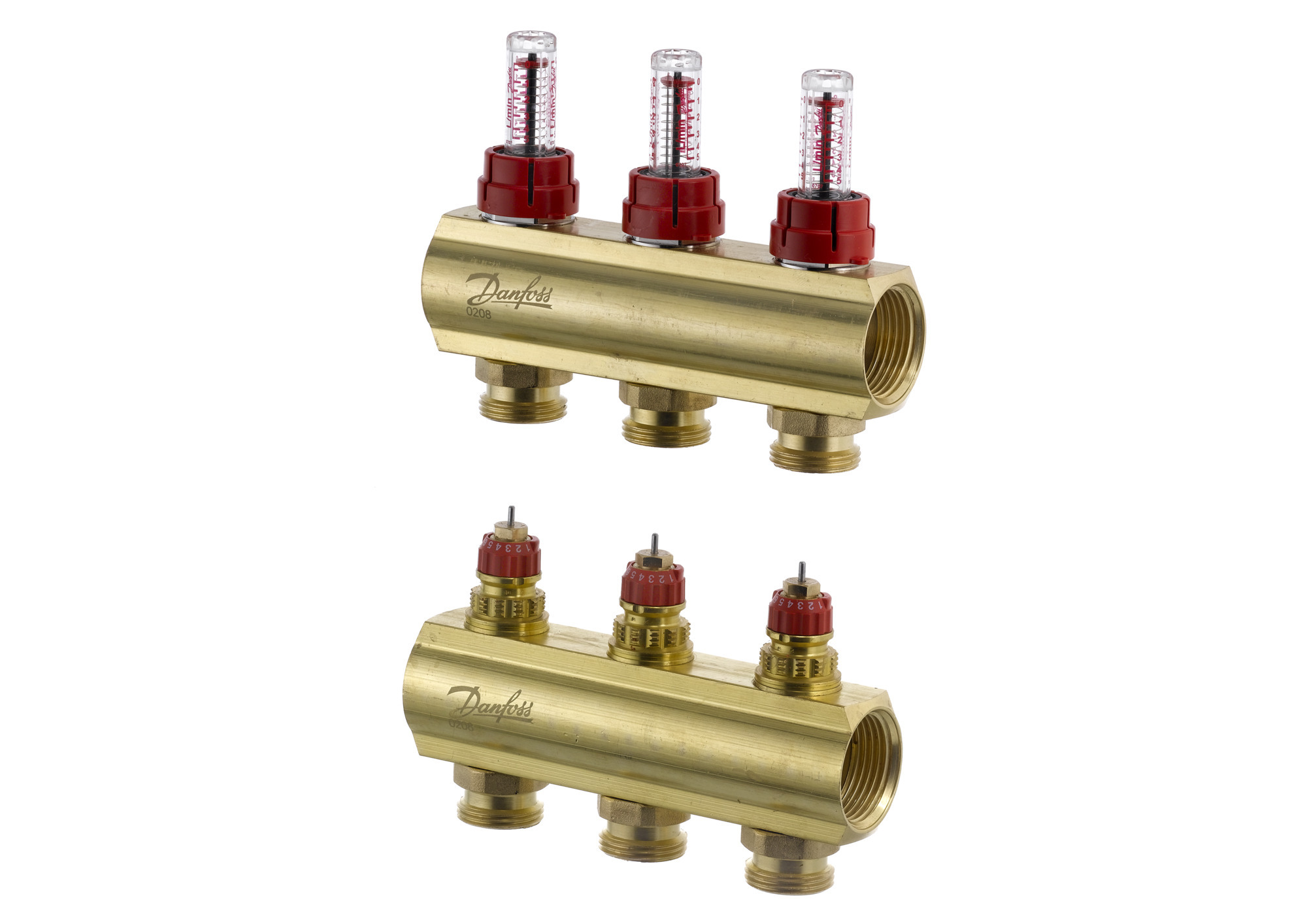

088U0523 Danfoss: Manifold 3+3 Danfoss BIV Flowmeter
Gross weight
2.13 Kilogram
Net weight
1.83 Kilogram
Volume
2.034 Liter
EAN
5702420080932
Bleed valve
Not included
China RoHS compliance
Out of scope
Description
Manifold 3+3 Danfoss BIV Flowmeter
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow temperature [°C] [Max]
60 °C
Flowmeter
Yes
Material
BRASS
Number of heating manifold connections [loops] [Max]
3
Operating temperature [°C] [max]
60 °C
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
958f1048-f7ca-4f71-87ec-e4d587bc8f85
SCIP dossier product name
Manifold x+x Danfoss BIV Flowmeter
Test pressure [bar]
10 bar
Type
Manifold FHF-F
UK RoHS compliance
Out of scope
Valve connection
Danfoss RA
Working pressure [bar] [Max]
6 bar
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0582
End Cap
088U0583
Connection Piece
088U0587
Manifold insulation for FHF & FH-ME
088U0676
Bypass end piece for FHF
088U0785
Automatic air vent with three way ball valve
088U0786
Manual air vent with three way ball valve
088U0584
Reducing Bush
088U0595
Manifold bracket for cabinet
