088U0528

Part Number: 088U0528
088U0528
Manufacturer
Danfoss
Part number
088U0528
Category

Product Information

Extended Description

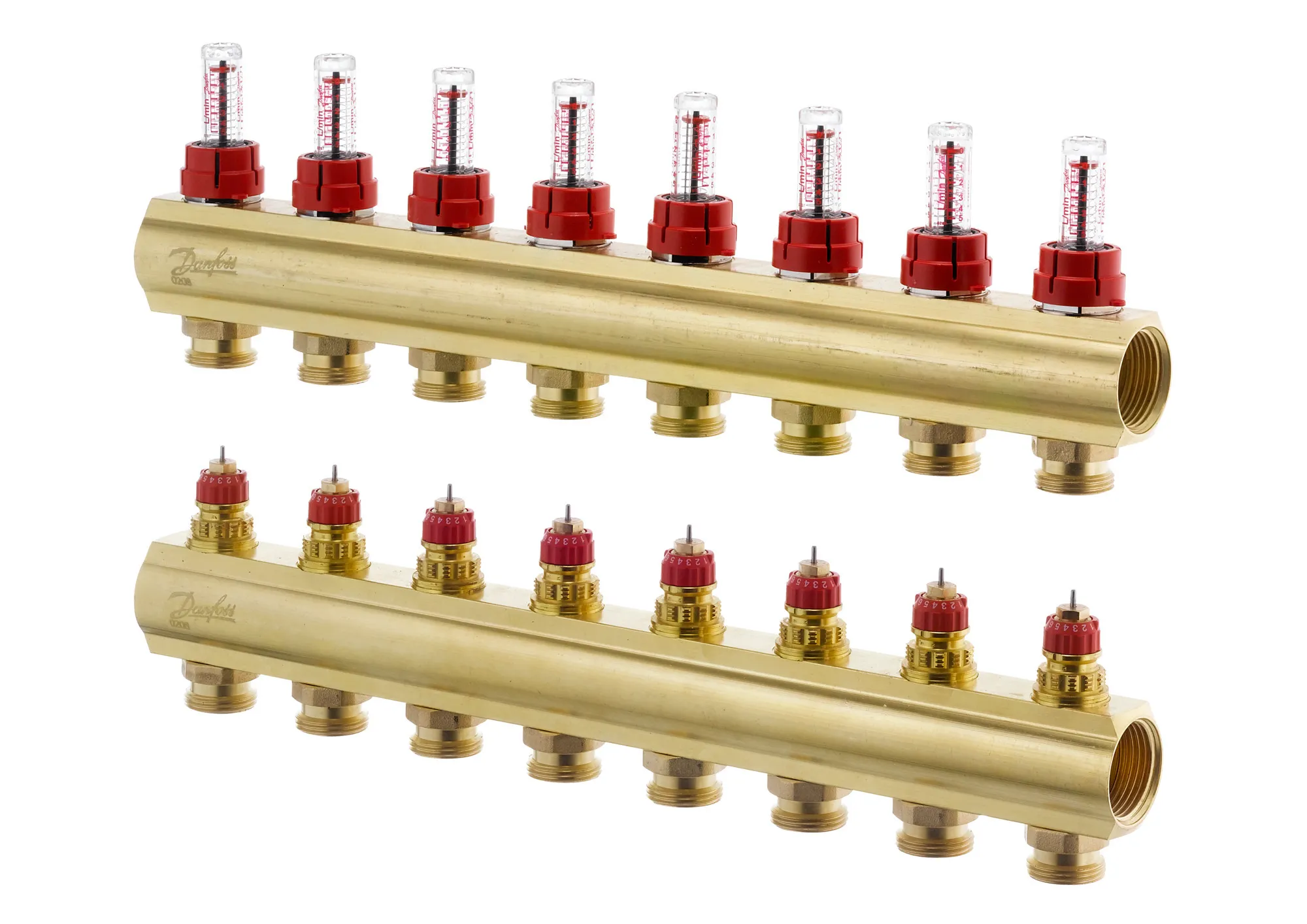

088U0528 Danfoss: Manifold 8+8 Danfoss BIV Flowmeter
Gross weight
5.086 Kilogram
Net weight
5.086 Kilogram
Volume
5.231 Liter
EAN
5702420080987
Bleed valve
Not included
China RoHS compliance
Out of scope
Description
Manifold 8+8 Danfoss BIV Flowmeter
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow temperature [°C] [Max]
60 °C
Flowmeter
Yes
Material
BRASS
Number of heating manifold connections [loops] [Max]
8
Operating temperature [°C] [max]
60 °C
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
958f1048-f7ca-4f71-87ec-e4d587bc8f85
SCIP dossier product name
Manifold x+x Danfoss BIV Flowmeter
Test pressure [bar]
10 bar
Type
Manifold FHF-F
UK RoHS compliance
Out of scope
Valve connection
Danfoss RA
Working pressure [bar] [Max]
6 bar
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0582
End Cap
088U0583
Connection Piece
088U0587
Manifold insulation for FHF & FH-ME
088U0676
Bypass end piece for FHF
088U0584
Reducing Bush
088U0595
Manifold bracket for cabinet
088U0675
Bypass end-piece for FHH manifold
088U0785
Automatic air vent with three way ball valve
Hydronic floor heating - end-user brochure FHF Floor Heating Manifold Connecting Danfoss Composite Pipes to FHF Manifold FHF Manifold with flowmeter Replacement valve for SSM/FHF Manifold Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Find optimal thermal comfort with underfloor heating systems Floor Heating Manifold FHF Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss MD 088U0502.01 FHF-8F 088U0528 FHF-8F 088U0528 FHF-F_8+8_088U0528_STEP FHF-F_8+8_088U0528_3D FHF-F_8+8_088U0528_2D Manifold FHF-F_2-12_RFA Manifold FHF-F_2-12_TWA-A_RFA
