088U0551
Part Number: 088U0551
Product Information
Extended Description

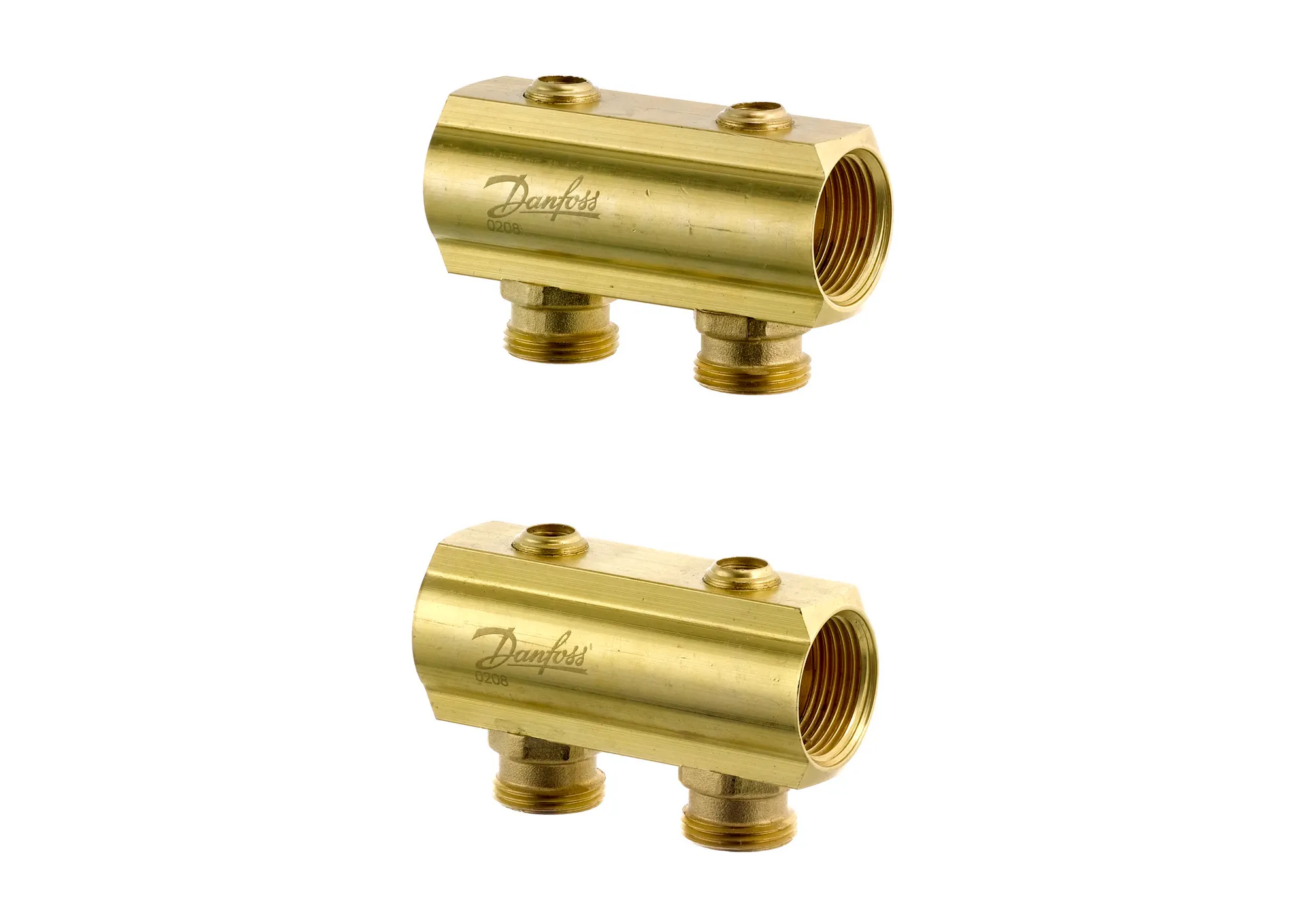

088U0551 Danfoss: Manifold 11+11 Shutoff
Gross weight
6.416 Kilogram
Net weight
6.416 Kilogram
Volume
3.666 Liter
EAN
5702420081120
Bleed valve
Not included
China RoHS compliance
Out of scope
Description
Manifold 11+11 Shutoff
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flowmeter
No
Material
BRASS
Number of heating manifold connections [loops] [Max]
11
Operating temperature [°C] [max]
90 °C
Presetting
no
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
ea3f29ae-396c-45ea-b074-8fea2b139d90
SCIP dossier product name
Manifold x+x Shutoff
Test pressure [bar]
16 bar
Type
Manifold FHF-B
UK RoHS compliance
Out of scope
Working pressure [bar] [Max]
10 bar
013G7376
Service built-in valve for manifold
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0582
End Cap
088U0583
Connection Piece
088U0587
Manifold insulation for FHF & FH-ME
088U0595
Manifold bracket for cabinet
088U0676
Bypass end piece for FHF
088U0785
Automatic air vent with three way ball valve
088U0786
Manual air vent with three way ball valve
088U0820
Manifold union nut, 1"
Hydronic floor heating - end-user brochure
FHF Floor Heating Manifold
Connecting Danfoss Composite Pipes to FHF Manifold
FHF Manifold without Flowmeter and with Shut-off
Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34
Find optimal thermal comfort with underfloor heating systems
Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34
Danfoss MD 088U0502.01
FHF-2B 088U0542
FHF-B_11+11_088U0551_3D
FHF-B_11+11_088U0551_2D
FHF-B_11+11_088U0551_STEP
Manifold FHF-B_2-12_RFA
