088U0552

Part Number: 088U0552
088U0552
Manufacturer
Danfoss
Part number
088U0552
Category

Product Information

Extended Description

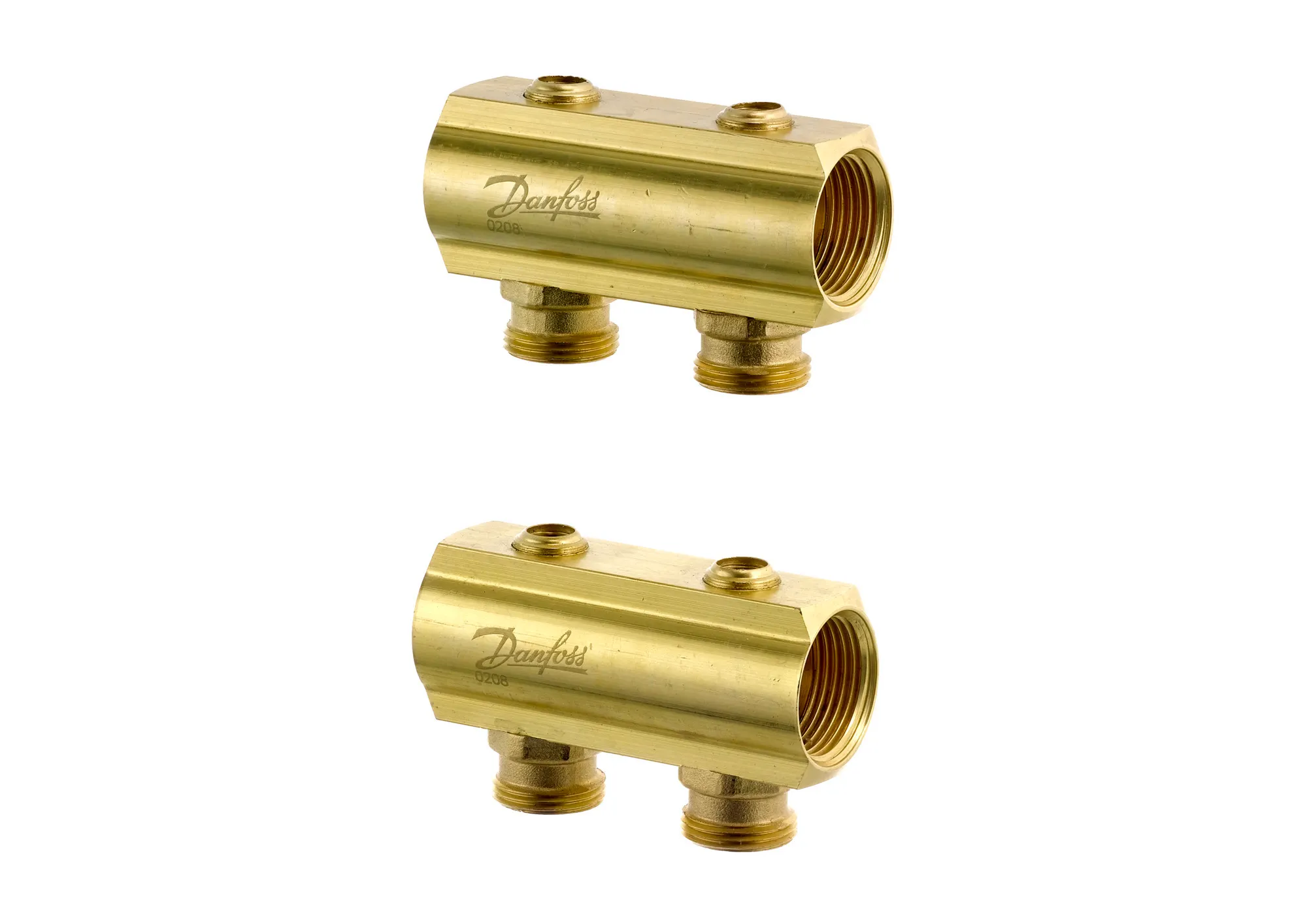

088U0552 Danfoss: Manifold 12+12 Shutoff
Gross weight
7.547 Kilogram
Net weight
7.547 Kilogram
Volume
3.984 Liter
EAN
5702420081137
Bleed valve
Not included
China RoHS compliance
Out of scope
Description
Manifold 12+12 Shutoff
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flowmeter
No
Material
BRASS
Number of heating manifold connections [loops] [Max]
12
Operating temperature [°C] [max]
90 °C
Presetting
no
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Test pressure [bar]
16 bar
Type
Manifold FHF-B
UK RoHS compliance
Out of scope
Working pressure [bar] [Max]
10 bar
013G7376
Service built-in valve for manifold
088U0585
Mounting Brackets
088U0583
Connection Piece
088U0029
Thermometer 0-60ºC Ø35mm
088U0582
End Cap
088U0584
Reducing Bush
088U0587
Manifold insulation for FHF & FH-ME
088U0595
Manifold bracket for cabinet
088U0675
Bypass end-piece for FHH manifold
088U0676
Bypass end piece for FHF
088U0785
Automatic air vent with three way ball valve
Hydronic floor heating - end-user brochure FHF Floor Heating Manifold Connecting Danfoss Composite Pipes to FHF Manifold FHF Manifold without Flowmeter and with Shut-off Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss MD 088U0502.01 FHF-2B 088U0542 FHF-B_12+12_088U0552_3D FHF-B_12+12_088U0552_STEP FHF-B_12+12_088U0552_2D Manifold FHF-B_2-12_RFA
