088U0754

Part Number: 088U0754
088U0754
Manufacturer
Danfoss
Part number
088U0754
Category

Product Information

Extended Description

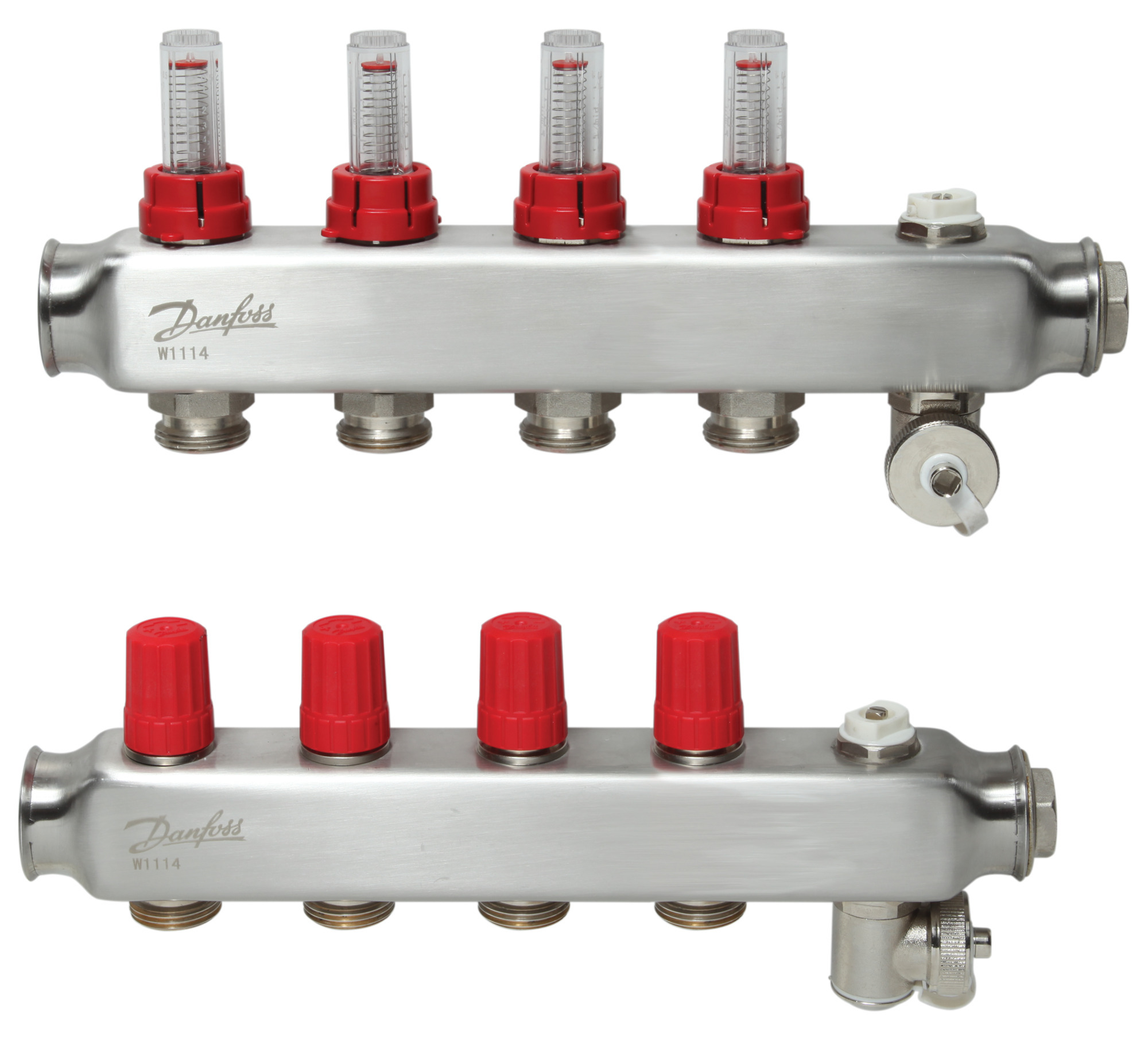

088U0754 Danfoss: SSM manifold 4+4 with flowmeter
Gross weight
2.748 Kilogram
Net weight
2.708 Kilogram
Volume
8.688 Liter
EAN
5702425114816
Bleed valve
Manual
China RoHS compliance
Out of scope
Description
SSM manifold 4+4 with flowmeter
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow temperature [°C] [Max]
60 °C
Flowmeter
Yes
Material
Stainless steel
Number of heating manifold connections [loops] [Max]
4
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
767ea979-0974-40f2-ab01-a21fd0747106
SCIP dossier product name
SSM manifold set with flowmeters
Test pressure [bar]
10 bar
Type
Manifold SSM-F
UK RoHS compliance
Out of scope
UNSPSC CODE
40141720
Valve connection
Danfoss RA
Working pressure [bar] [Max]
6 bar
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0583
Connection Piece
088U0584
Reducing Bush
088U0595
Manifold bracket for cabinet
088U0820
Manifold union nut, 1"
088U0822
Ball valve for manifolds, 1''
088U0824
Insulation capsule for SSM/SSM-F manifolds
088U0945
Automatic air ventilation valve
