088U0755

Part Number: 088U0755
088U0755
Manufacturer
Danfoss
Part number
088U0755
Category

Product Information

Extended Description

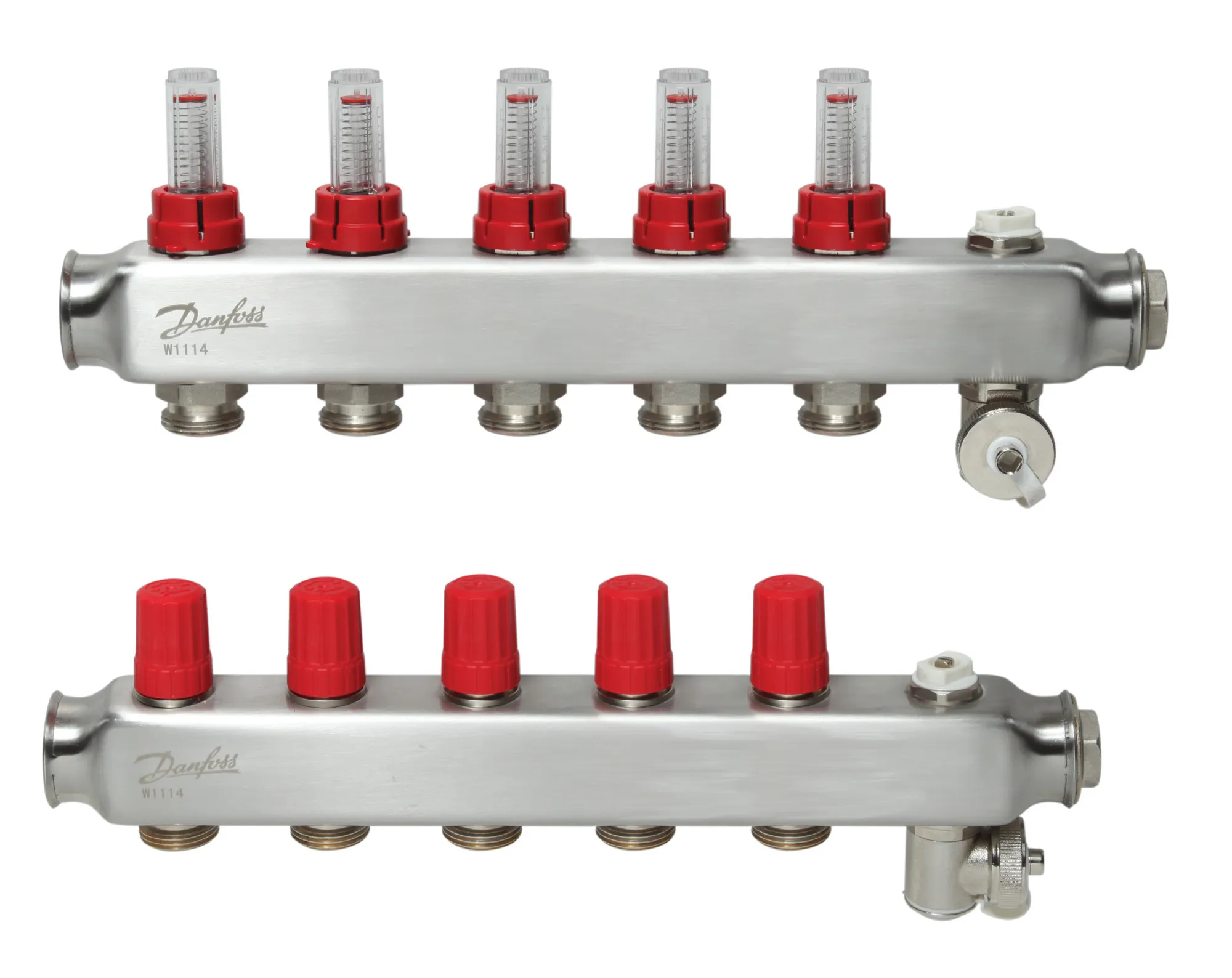

088U0755 Danfoss: SSM manifold 5+5 with flowmeter
Gross weight
3.11 Kilogram
Net weight
3.06 Kilogram
Volume
9.438 Liter
EAN
5702425114809
Bleed valve
Manual
China RoHS compliance
Out of scope
Description
SSM manifold 5+5 with flowmeter
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow temperature [°C] [Max]
60 °C
Flowmeter
Yes
Material
Stainless steel
Number of heating manifold connections [loops] [Max]
5
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
767ea979-0974-40f2-ab01-a21fd0747106
SCIP dossier product name
SSM manifold set with flowmeters
Test pressure [bar]
10 bar
Type
Manifold SSM-F
UK RoHS compliance
Out of scope
UNSPSC CODE
40141720
Valve connection
Danfoss RA
Working pressure [bar] [Max]
6 bar
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0583
Connection Piece
088U0595
Manifold bracket for cabinet
088U0820
Manifold union nut, 1"
088U0945
Automatic air ventilation valve
088U0584
Reducing Bush
088U0822
Ball valve for manifolds, 1''
088U0824
Insulation capsule for SSM/SSM-F manifolds
SSM Floor Heating Manifold Replacement valve for SSM/FHF Manifold SSM stainless Steel Manifold Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss MD BF356751118147en-000101.01 Danfoss MD BF356929191197en-000101.02 SSM-F_088U0755_F SSM_manifold_R_088U0755_3D SSM_manifold_S_088U0755_2D SSM_manifold_S_088U0755_3D SSM_manifold_R_088U0755_2D SSM_manifold_R_088U0755_3D_STEP SSM_manifold_S_088U0755_3D_STEP SSM-F_5+5_088U0755_3D SSM-F_5+5_088U0755_2D SSM-F_5+5_088U0755_STEP
