088U0802

Part Number: 088U0802
088U0802
Manufacturer
Danfoss
Part number
088U0802
Category

Product Information

Extended Description

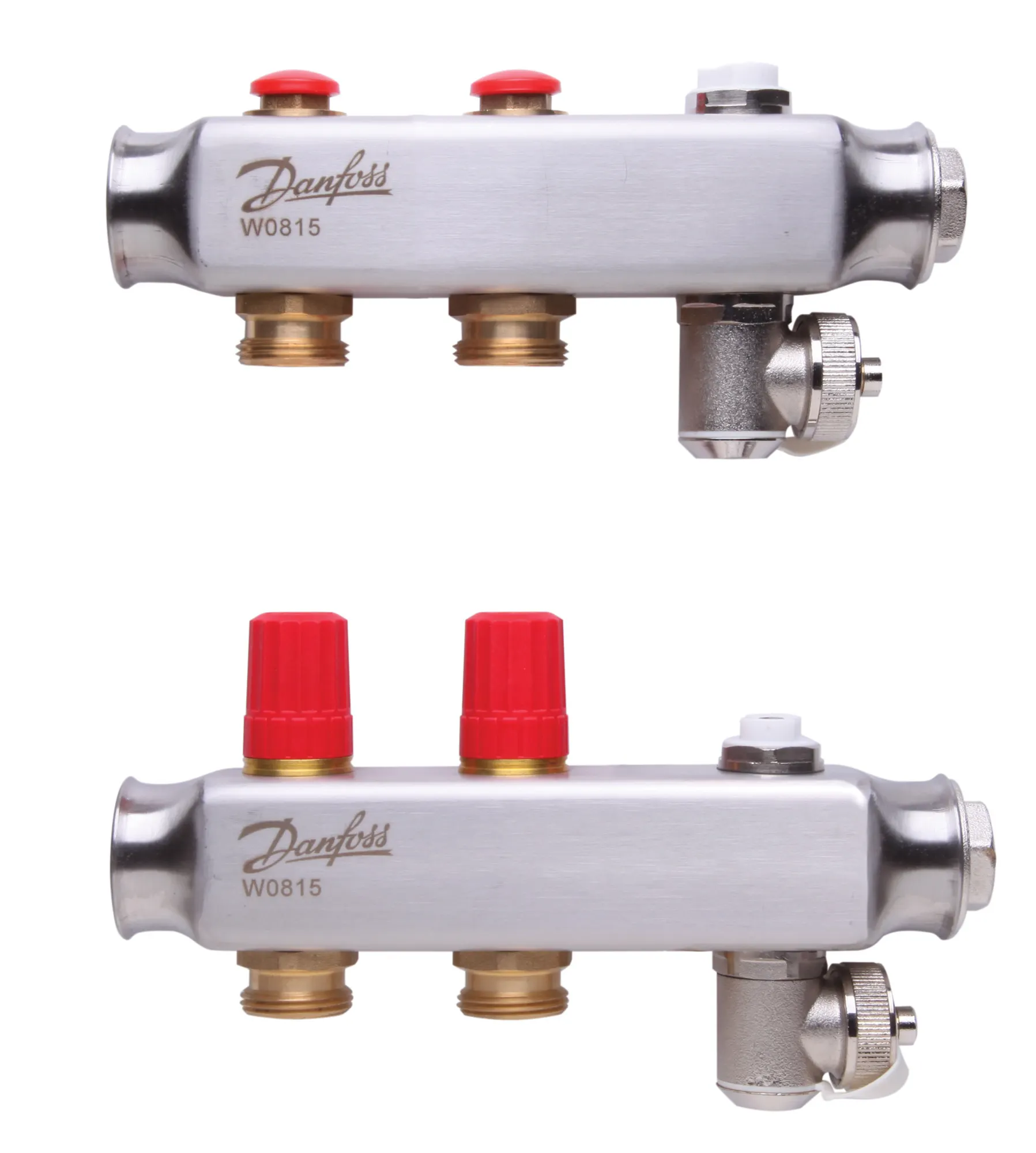

088U0802 Danfoss: SSM manifold 2+2
Gross weight
1.886 Kilogram
Net weight
1.669 Kilogram
Volume
6.611 Liter
EAN
5702425119460
Bleed valve
Manual
China RoHS compliance
Out of scope
Description
SSM manifold 2+2
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Out of scope
Flow temperature [°C] [Max]
90 °C
Flowmeter
No
Material
Stainless steel
Number of heating manifold connections [loops] [Max]
2
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f1839029-206a-4d57-bad0-79a64611c783
SCIP dossier product name
SSM manifold x+x
Test pressure [bar]
16 bar
Type
Manifold SSM
UK RoHS compliance
Out of scope
Valve connection
Danfoss RA
Working pressure [bar] [Max]
10 bar
013G7376
Service built-in valve for manifold
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0583
Connection Piece
088U0595
Manifold bracket for cabinet
088U0820
Manifold union nut, 1"
088U0945
Automatic air ventilation valve
088U0584
Reducing Bush
088U0822
Ball valve for manifolds, 1''
088U0824
Insulation capsule for SSM/SSM-F manifolds
Hydronic floor heating - end-user brochure SSM Floor Heating Manifold Replacement valve for SSM/FHF Manifold SSM stainless Steel Manifold Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss MD BF356929191197en-000101.02 SSM_088U0802_F0_v1 SSM_2+2_088U0802_STEP SSM_2+2_088U0802_3D SSM_2+2_088U0802_2D Manifold SSM_2-12_RFA Manifold SSM_2-12_TWA-A_RFA
