088U0810
Part Number: 088U0810
Product Information
Extended Description

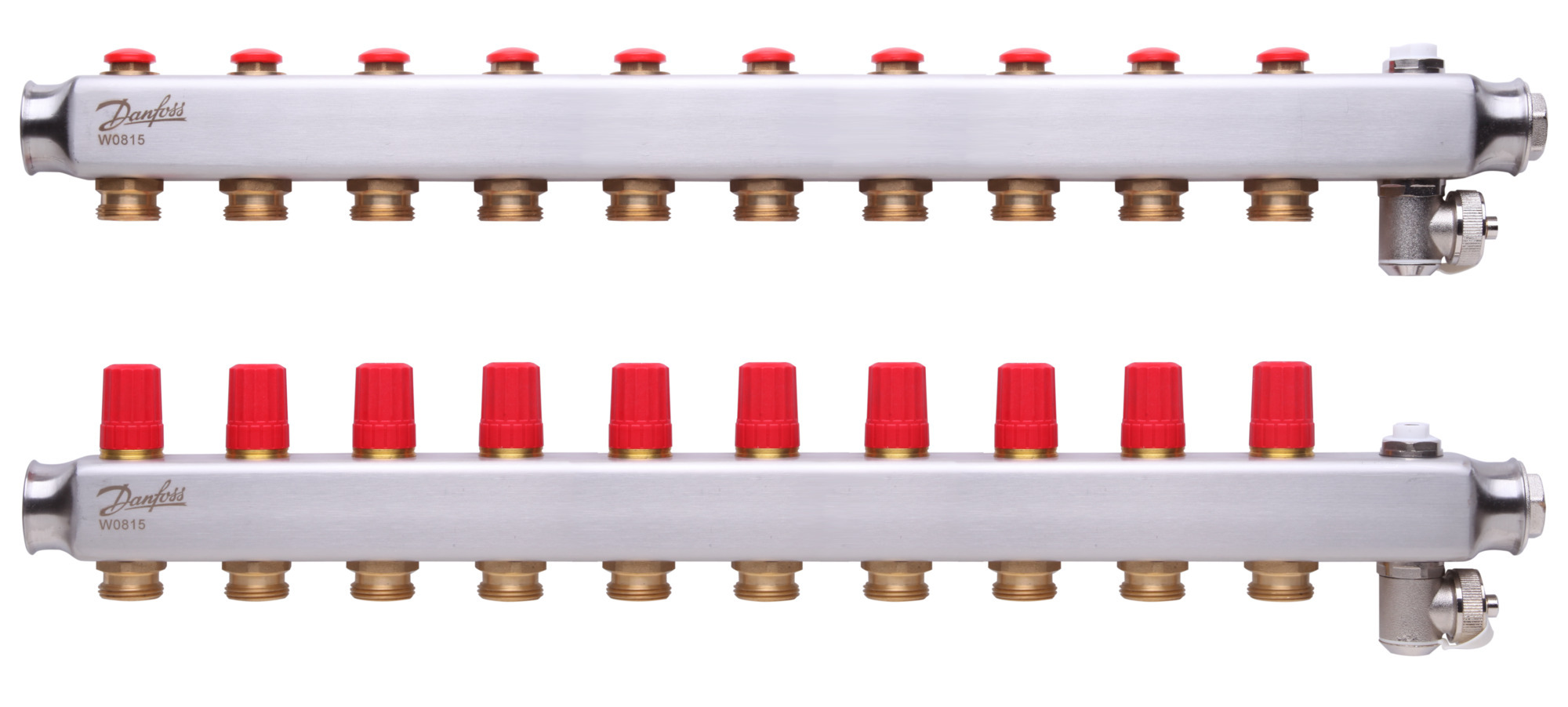

088U0810 Danfoss: SSM manifold 10+10
Gross weight
5.498 Kilogram
Net weight
5.351 Kilogram
Volume
17.019 Liter
EAN
5702425119385
Bleed valve
Manual
China RoHS compliance
Out of scope
Description
SSM manifold 10+10
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Out of scope
Flow temperature [°C] [Max]
90 °C
Flowmeter
No
Material
Stainless steel
Number of heating manifold connections [loops] [Max]
10
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f1839029-206a-4d57-bad0-79a64611c783
SCIP dossier product name
SSM manifold x+x
Test pressure [bar]
16 bar
Type
Manifold SSM
UK RoHS compliance
Out of scope
UNSPSC CODE
40141720
Valve connection
Danfoss RA
Working pressure [bar] [Max]
10 bar
013G7376
Service built-in valve for manifold
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0583
Connection Piece
088U0595
Manifold bracket for cabinet
088U0820
Manifold union nut, 1"
088U0945
Automatic air ventilation valve
088U0584
Reducing Bush
088U0822
Ball valve for manifolds, 1''
088U0824
Insulation capsule for SSM/SSM-F manifolds
Hydronic floor heating - end-user brochure
SSM Floor Heating Manifold
Replacement valve for SSM/FHF Manifold
SSM stainless Steel Manifold
Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34
Find optimal thermal comfort with underfloor heating systems
Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34
Danfoss MD BF356929191197en-000101.02
SSM_088U0810_F0_v1
SSM_10+10_088U0810_3D
SSM_10+10_088U0810_STEP
SSM_10+10_088U0810_2D
Manifold SSM_2-12_RFA
Manifold SSM_2-12_TWA-A_RFA
