088U0812

Part Number: 088U0812
088U0812
Manufacturer
Danfoss
Part number
088U0812
Category

Product Information

Extended Description

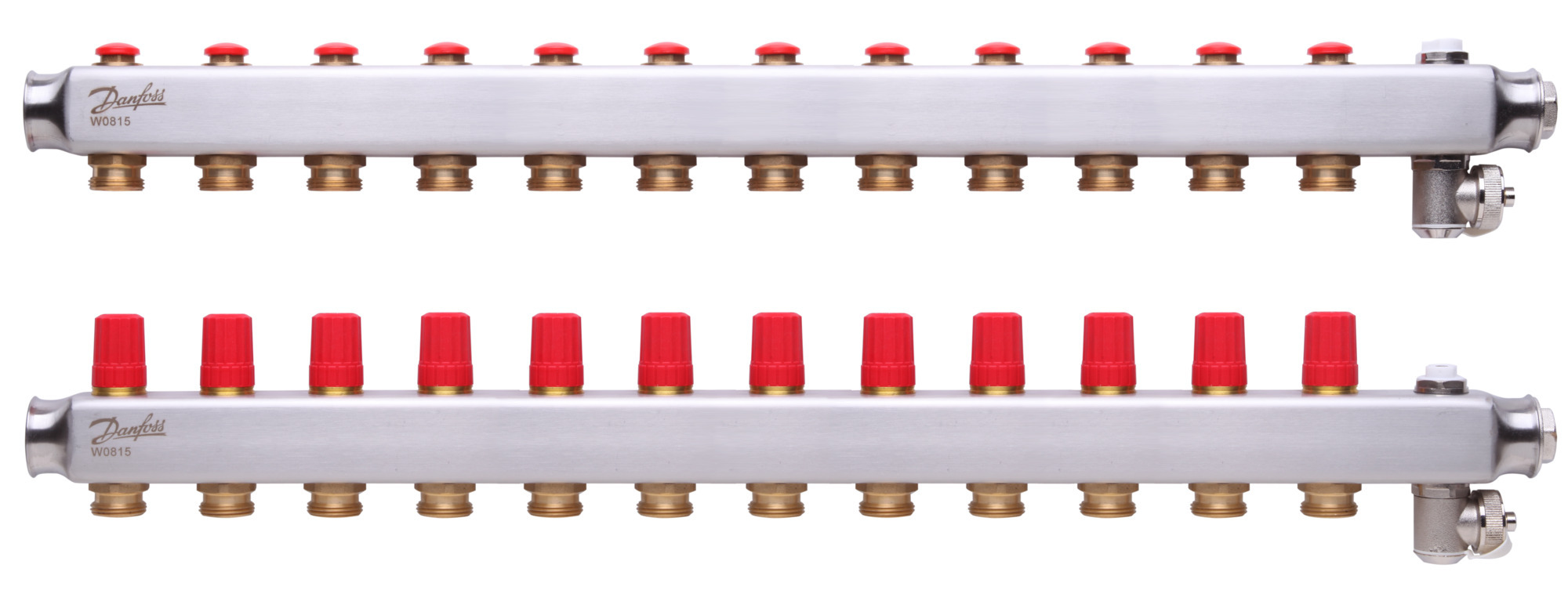

088U0812 Danfoss: SSM manifold 12+12
Gross weight
6.294 Kilogram
Net weight
6.153 Kilogram
Volume
17.019 Liter
EAN
5702425119361
Bleed valve
Manual
China RoHS compliance
Out of scope
Description
SSM manifold 12+12
Differential pressure [bar] [max]
0.6 bar
EU RoHS compliance
Out of scope
Flow temperature [°C] [Max]
90 °C
Flowmeter
No
Material
Stainless steel
Number of heating manifold connections [loops] [Max]
12
Presetting
yes
Product group
Manifold & Manifold Kits
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f1839029-206a-4d57-bad0-79a64611c783
SCIP dossier product name
SSM manifold x+x
Test pressure [bar]
16 bar
Type
Manifold SSM
UK RoHS compliance
Out of scope
UNSPSC CODE
40141720
Valve connection
Danfoss RA
Working pressure [bar] [Max]
10 bar
013G7376
Service built-in valve for manifold
088U0585
Mounting Brackets
088U0029
Thermometer 0-60ºC Ø35mm
088U0583
Connection Piece
088U0584
Reducing Bush
088U0595
Manifold bracket for cabinet
088U0820
Manifold union nut, 1"
088U0822
Ball valve for manifolds, 1''
088U0824
Insulation capsule for SSM/SSM-F manifolds
088U0945
Automatic air ventilation valve
Hydronic floor heating - end-user brochure SSM Floor Heating Manifold Replacement valve for SSM/FHF Manifold SSM stainless Steel Manifold Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss MD BF356929191197en-000101.02 SSM_088U0812_F0_v1 SSM_12+12_088U0812_STEP SSM_12+12_088U0812_2D SSM_12+12_088U0812_3D Manifold SSM_2-12_RFA Manifold SSM_2-12_TWA-A_RFA
