088U1000
Part Number: 088U1000
Product Information
Extended Description

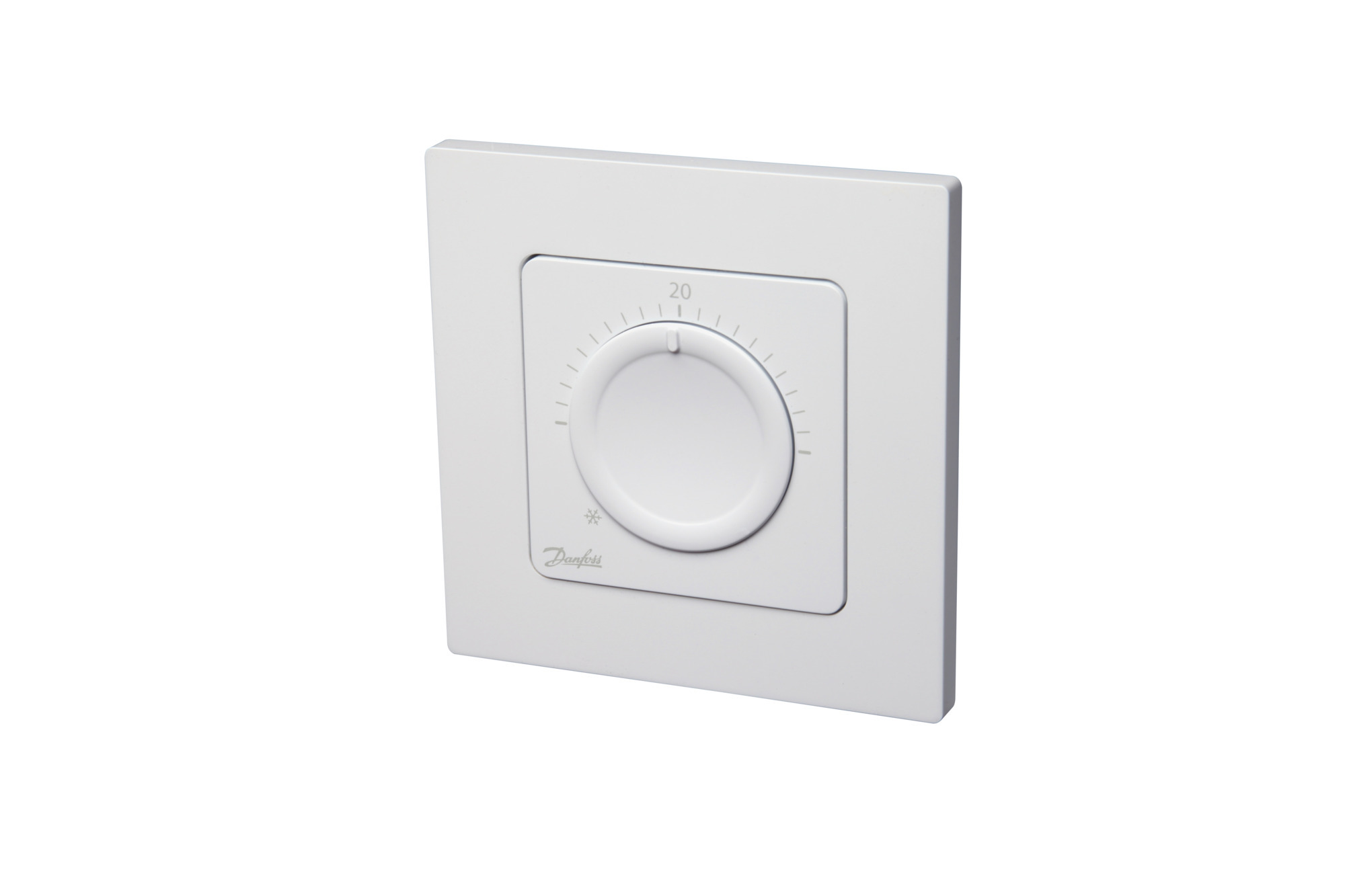

088U1000 Danfoss: Dial 230V, IN-WALL, 80x80, EU version, Wired 230V
Gross weight
0.12 Kilogram
Net weight
0.1 Kilogram
Volume
0.508 Liter
EAN
5702425130977
Actuator on radiator
Yes
Adaptive learning
No
App control enabled
No
Automatic balancing
No
Away input
No
Capacitive touch
No
China RoHS compliance
Out of scope
Cooling input
Yes
Description
Dial 230V, IN-WALL, 80x80, EU version
Dual mode
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
Yes
Floor sensor enabled
No
Heating control type
Room Thermostat
In scope of WEEE
Yes
Installation
In-wall
Interfaces
Wired 230V
IP protection class
IP21
NC/NO
Yes
Noiseless switching
Yes
Number of actuators max
5
Number of channels
0
Output voltage [V] AC
230 V
Output voltage [V] DC
230 V
Product group
Floor Heating Controls
PWM
No
REACH Candidate List substances
No
Scheduling
No
Suitable for
230V actuators
Supply voltage [V]
230 V
Temperature control
Yes
Temperature limitation
Yes
Temperature set-back button
No
Temperature setting range [°C] [Max]
30 °C
Temperature setting range [°C] [Min]
5 °C
Thermal feedback
Yes
Type
Danfoss Icon™ 230V RT wired
UK RoHS compliance
Out of scope
Usage
Dial
Valve excercise
No
