088U1021

Part Number: 088U1021
088U1021
Manufacturer
Danfoss
Part number
088U1021
Category

Product Information

Extended Description

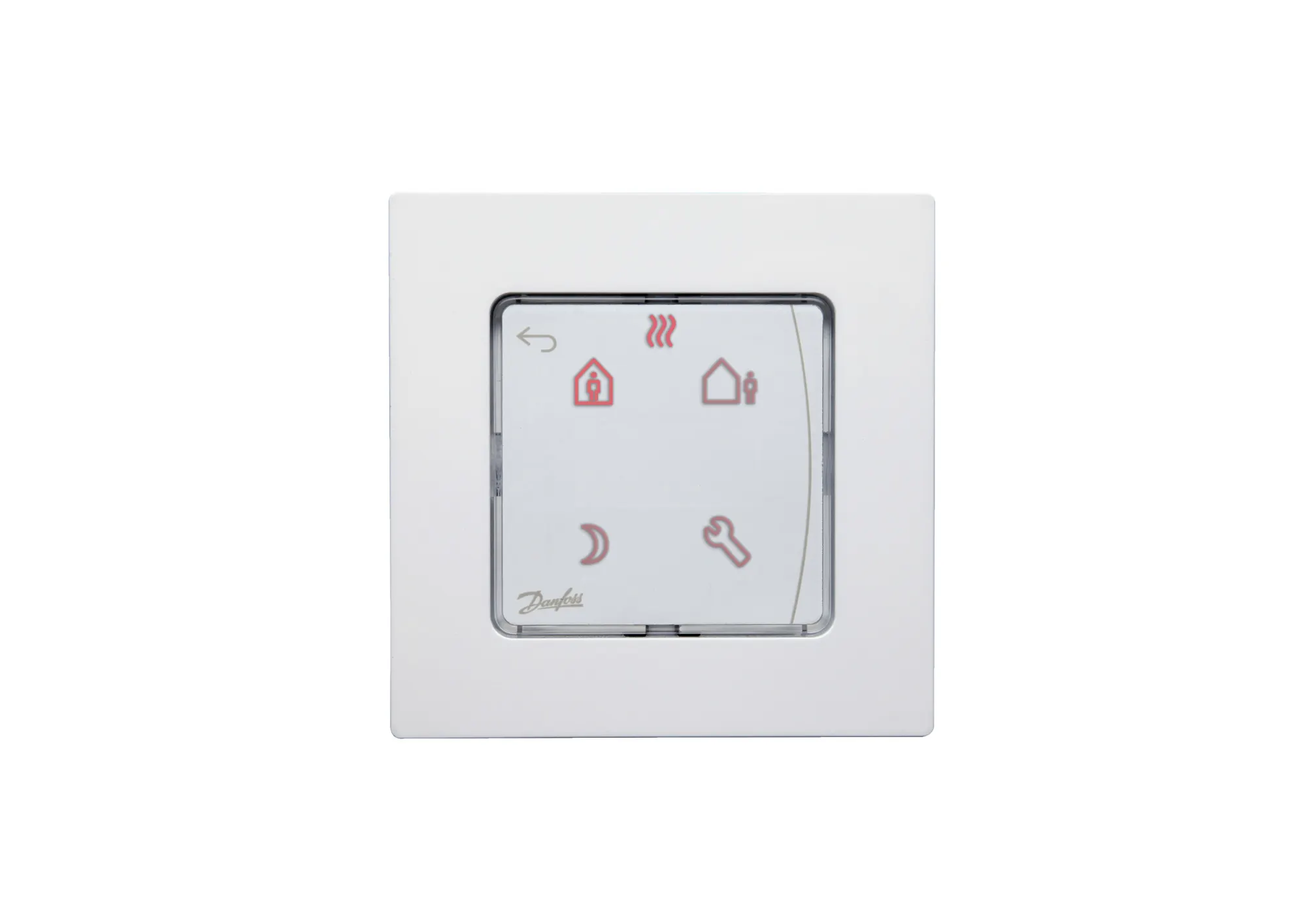

088U1021 Danfoss: Danfoss Icon Programmable 230V, IN-WALL, CHINA ONLY 86x86, Wired 230V
Gross weight
0.17 Kilogram
Net weight
0.17 Kilogram
Volume
0.909 Liter
EAN
5702425129940
Actuator on radiator
Yes
Adaptive learning
Yes
App control enabled
No
Away input
Yes
Capacitive touch
Yes
China RoHS compliance
Out of scope
Cooling input
Yes
Description
Danfoss Icon Programmable 230V, IN-WALL, CHINA ONLY 86x86
Dual mode
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
Yes
Floor sensor enabled
Yes
Heating control type
Room Thermostat
In scope of WEEE
Yes
Installation
In-wall
Interfaces
Wired 230V
IP protection class
IP21
NC/NO
Yes
Noiseless switching
Yes
Number of actuators max
5
Number of channels
0
Output voltage [V] AC
230 V
Product group
Floor Heating Controls
PWM
Yes
REACH Candidate List substances
No
Scheduling
Yes
Suitable for
230V actuators
Supply voltage [V]
230 V
Temperature control
Yes
Temperature limitation
Yes
Temperature set-back button
Yes
Temperature setting range [°C] [Max]
35 °C
Temperature setting range [°C] [Min]
5 °C
Thermal feedback
No
Type
Danfoss Icon™ 230V RT wired
UK RoHS compliance
Out of scope
UNSPSC CODE
41112209
Usage
Programmable
Valve excercise
Yes
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
088U1113
Danfoss Icon tamper-proof cover 86x86
Icon_Somfy_brochure Danfoss Icon™ Programmable Room Thermostats, 230V (Data Sheet) Danfoss Icon™ Programmable 230V Room Thermostat 1 F86 IW Danfoss Icon™ Programmable - Room Thermostat, 230 V Danfoss Icon™ Programmable 230V Room Thermostat (User Guide) Find optimal thermal comfort with underfloor heating systems Danfoss Icon™ Programmable Room Thermostats, 230 V Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss EU VJMBA102.02 Danfoss Icon Programmable 088U1020 F0 In wall programmable L 088U1020, 088U1021 Icon_230V_RFA
