088U1030
Part Number: 088U1030
Product Information
Extended Description

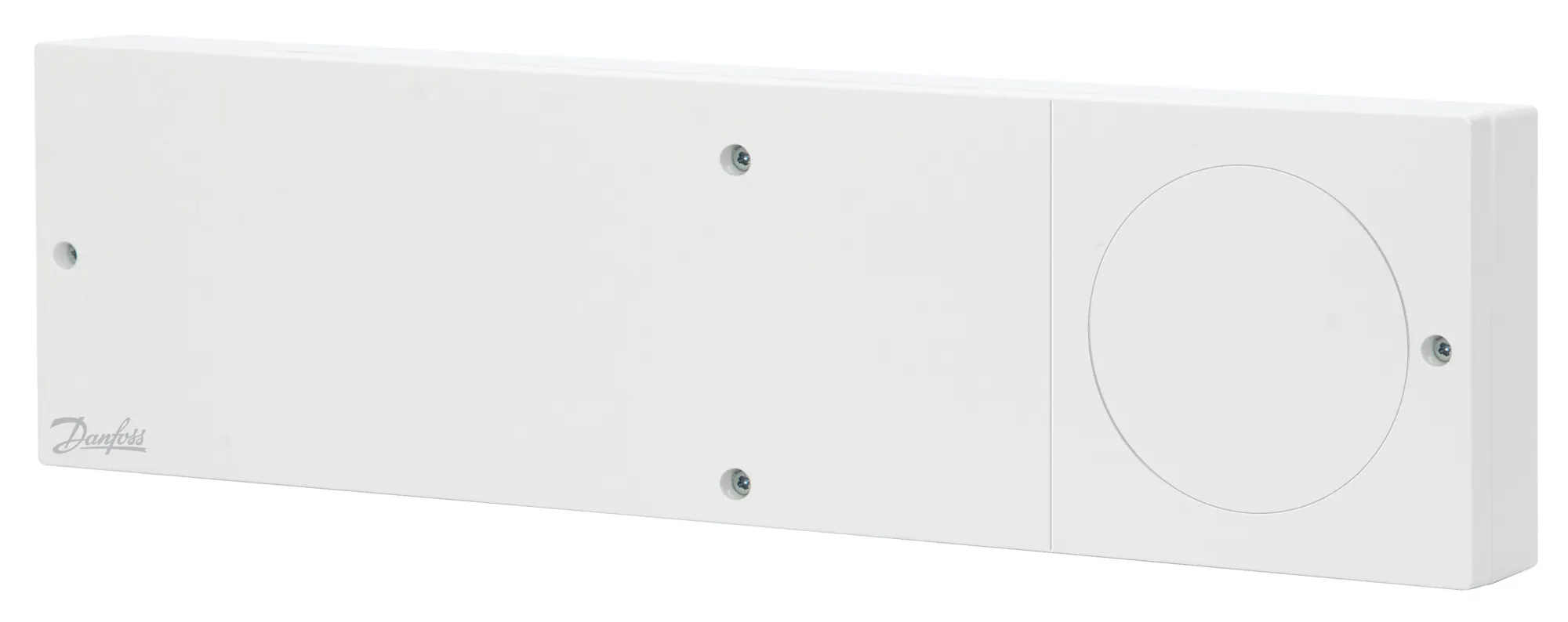

088U1030 Danfoss: Basic, for 230V actuators, Wired 230V
Gross weight
1.12 Kilogram
Net weight
1.1 Kilogram
Volume
6.337 Liter
EAN
5702425147814
Actuator on radiator
Yes
App control enabled
No
Automatic balancing
No
Away input
No
Boiler relay
Yes
Capacitive touch
No
China RoHS compliance
Out of scope
Cooling input
No
Description
Basic, for 230V actuators
Dual mode
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
No
Heating control type
Master Controller
In scope of WEEE
Yes
Installation
On-wall
Interfaces
Wired 230V
IP protection class
IP20
Masters connected [Max]
3
NC/NO
NC
Number of actuators max
14
Number of channels
8
Number of outputs [pc]
14 pc
Output voltage [V] AC
230 V
Product group
Floor Heating Controls
Pump relay
Yes
PWM
No
REACH Candidate List substances
No
Suitable for
230V actuators
Supply voltage [V]
230 V
Temperature control
Yes
Type
Danfoss Icon™ 230V MC
Upgradable to wireless
No
Usage
Basic
Valve excercise
Yes
Icon_Somfy_brochure
Danfoss Icon™ Master Controller 230V Data Sheet
Danfoss Icon™ 230V Master Controller (Installation Guide)
Find optimal thermal comfort with underfloor heating systems
Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34
Danfoss EU-UK VJMBC102.04
Danfoss Icon Master Controller 230V 088U1030 R
