088U1040
Part Number: 088U1040
Product Information
Extended Description
088U1040 Danfoss: Icon Wiring center 230V, 8 channels, EU version, Wired 230V
Gross weight
1.062 Kilogram
Net weight
0.15 Kilogram
Volume
3.344 Liter
EAN
5715162158098
App control enabled
No
Automatic balancing
No
Boiler relay
Yes
China RoHS compliance
Out of scope
Cooling input
Yes
Description
Icon Wiring center 230V, 8 channels, EU version
EEE category
5 small equipment (any external dimension 50 cm)
Fits into switch frames
No
Heating control type
Wiring center
In scope of WEEE
Yes
Installation
On-wall
Interfaces
Wired 230V
Masters connected [Max]
3
NC/NO
NC
Number of actuators max
14
Number of channels
8
Number of outputs [pc]
14 pc
Output voltage [V] AC
230 V
Product group
Floor Heating Controls
Pump relay
Yes
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
47d1e4a0-49a9-4d27-9ec9-72f9a817dfce
SCIP dossier product name
Danfoss Icon 230V Wiring Center
Suitable for
230V actuators
Supply voltage [V]
230 V
Type
Danfoss Icon™ 230V Wiring Center
UNSPSC CODE
41112209
Upgradable to wireless
No
Usage
For 230V actuators
Icon_Somfy_brochure
Danfoss Icon™ 230V Wiring Center (Data Sheet)
Danfoss Icon™ 230V Wiring Center (Installation Guide)
Find optimal thermal comfort with underfloor heating systems
Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34
Danfoss EU-UK 10000066549.01

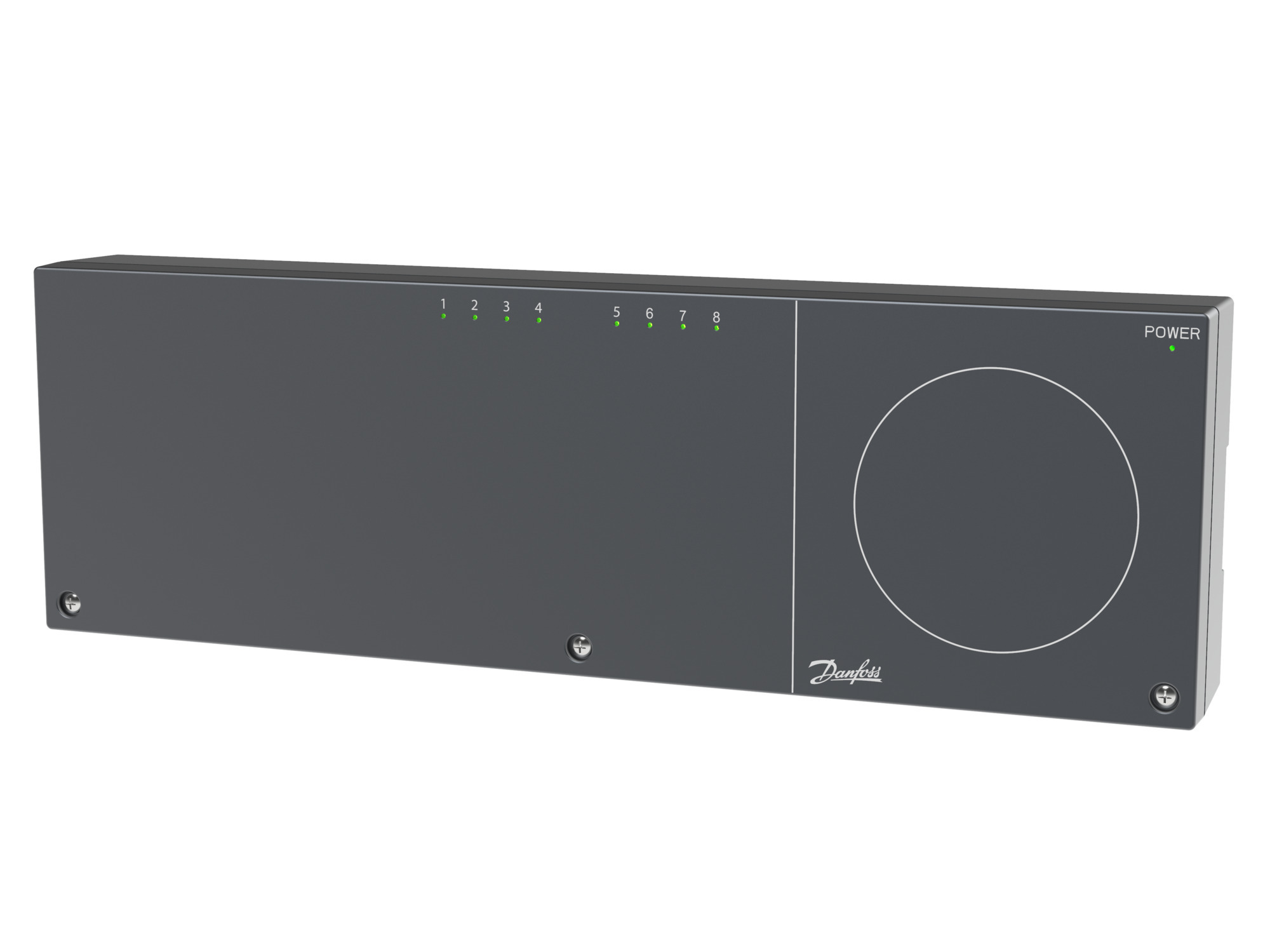

Danfoss Icon Wiring Center_088U1040_42_right

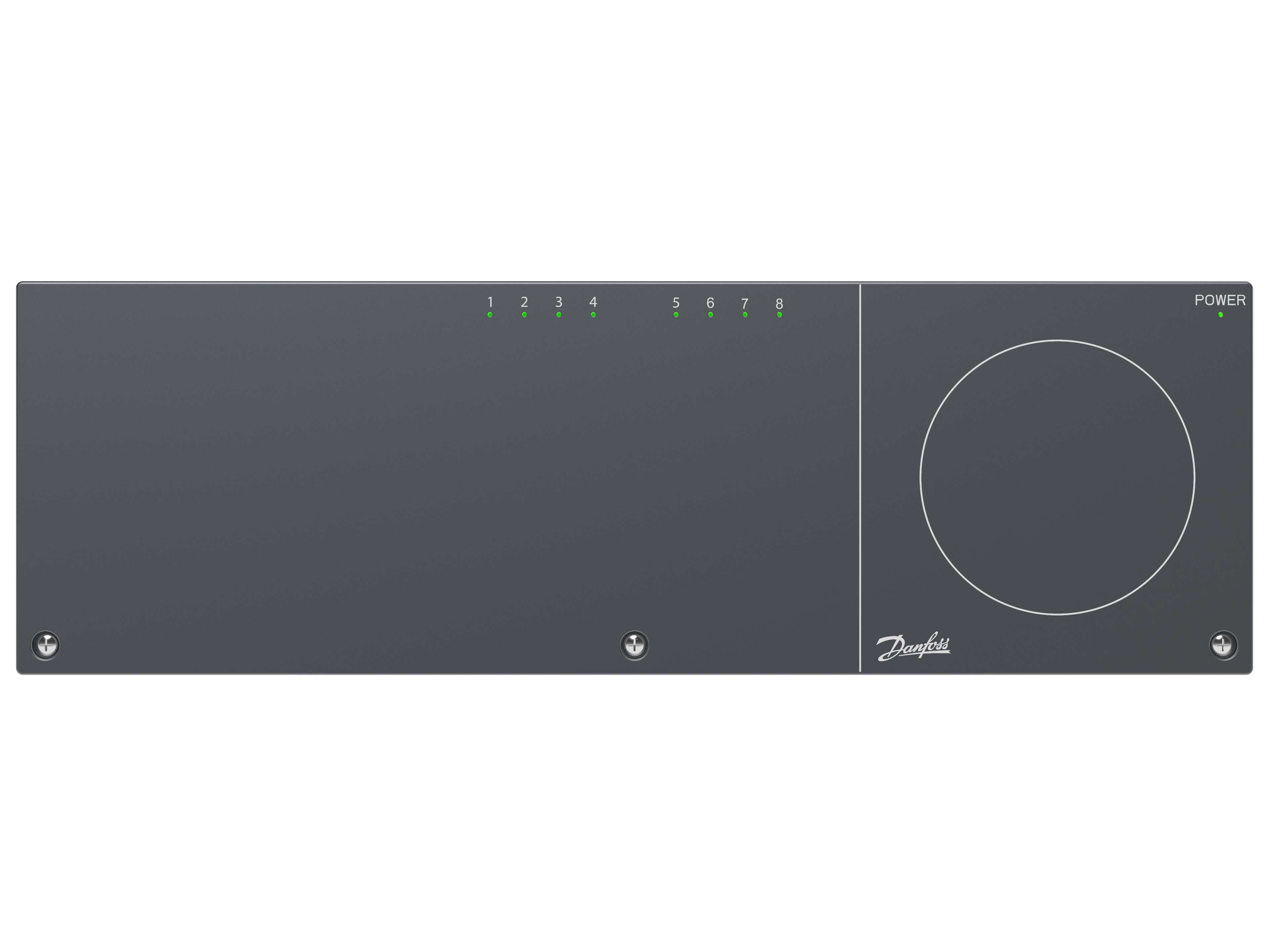

Danfoss Icon Wiring Center_088U1040_42_front
Icon_Wiring Center_RFA
