088U1050
Part Number: 088U1050
Product Information
Extended Description

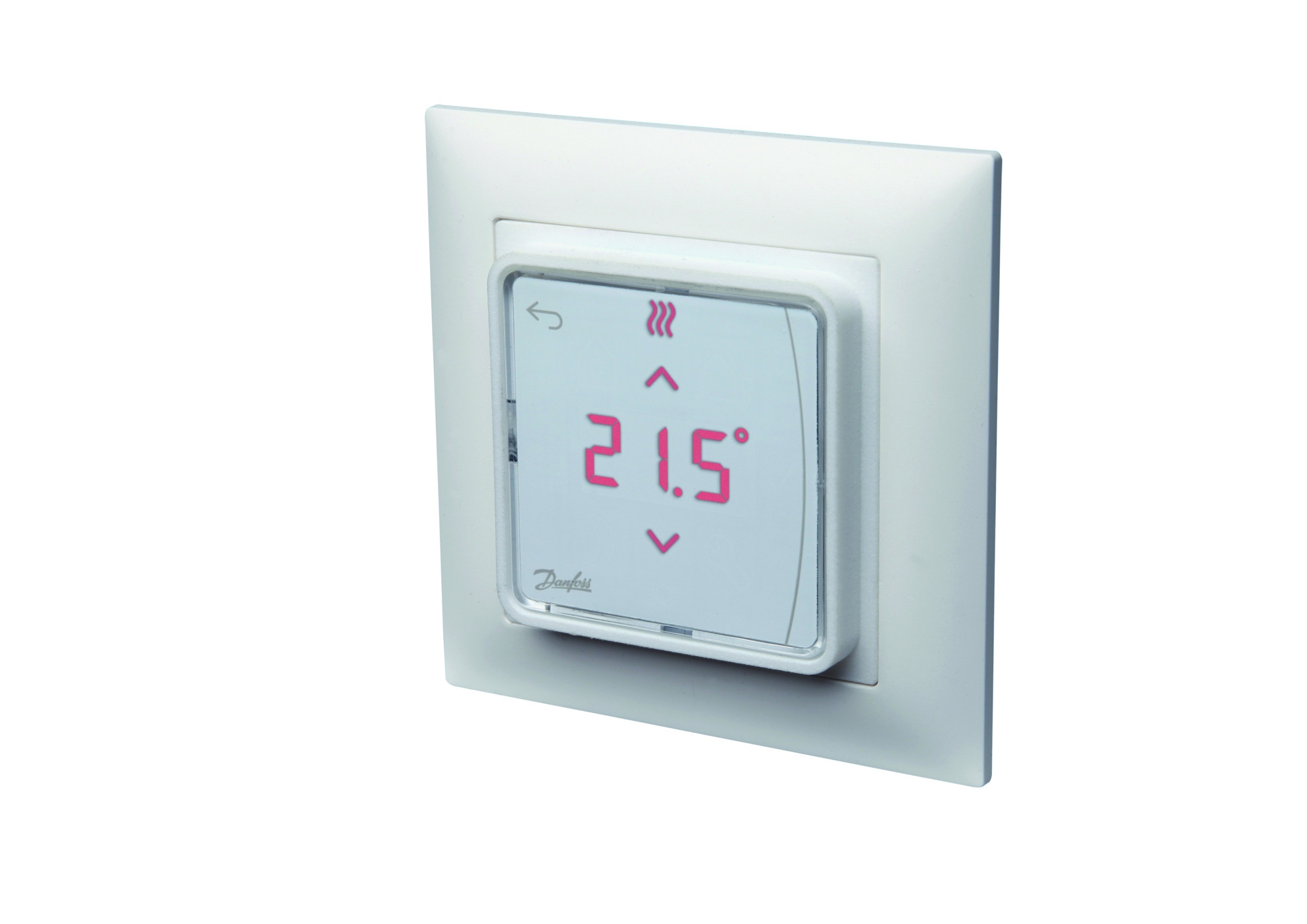

088U1050 Danfoss: Danfoss Icon RT 24V, Display In-wall 80x80, Wired 24V
Gross weight
0.152 Kilogram
Net weight
0.152 Kilogram
Volume
0.825 Liter
EAN
5702425147777
Actuator on radiator
Yes
Adaptive learning
Yes
App control enabled
Yes
Away input
Yes
Capacitive touch
Yes
China RoHS compliance
Out of scope
Cooling input
Yes
Description
Danfoss Icon RT 24V, Display In-wall 80x80
Dual mode
Yes
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
Yes
Floor sensor enabled
Yes
Heating control type
Room Thermostat
In scope of WEEE
Yes
In-wall
Yes
Installation
In-wall
Interfaces
Wired 24V
IP protection class
IP21
NC/NO
Yes
Noiseless switching
Yes
Number of channels
0
Output voltage [V] AC
24 V
Product group
Floor Heating Controls
Product height/depth [mm]
80 mm
Product length [mm]
80 mm
PWM
Yes
REACH Candidate List substances
No
Scheduling
Yes
Suitable for
Wired floor sensor
Supply voltage [V]
24 V
Temperature control
Yes
Temperature limitation
Yes
Temperature set-back button
Yes
Temperature setting range [°C] [Max]
35 °C
Temperature setting range [°C] [Min]
5 °C
Thermal feedback
No
Type
Danfoss Icon™ 24V RT wired
Usage
Display
Valve excercise
Yes
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
