088U1082
Part Number: 088U1082
Product Information
Extended Description

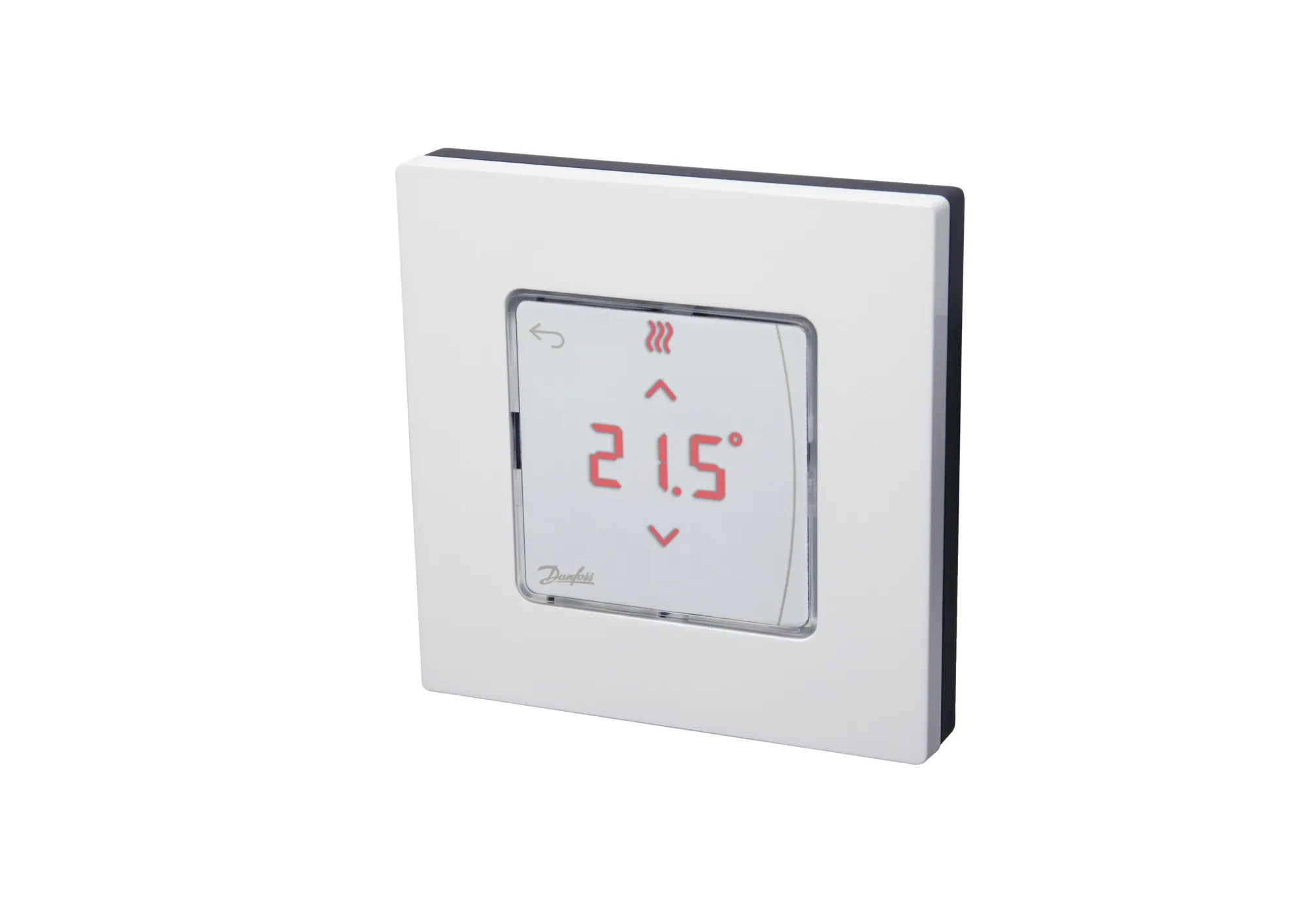

088U1082 Danfoss: Icon RT, Wireless Infrared On-wall, Wireless
Gross weight
0.214 Kilogram
Net weight
0.133 Kilogram
Volume
0.924 Liter
EAN
5702425147579
1 Primary battery SUM weight Kg
0.046
1 Primary battery weight Kg
0.023
Actuator on radiator
Yes
Adaptive learning
Yes
App control enabled
Yes
Away input
Yes
Battery qty
2
Battery type or Name
Alkaline AA
Capacitive touch
Yes
China RoHS compliance
Out of scope
Contain batteries
Yes
Cooling input
Yes
Description
Icon RT, Wireless Infrared On-wall
Dual mode
Yes
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
No
Floor sensor enabled
Yes
Heating control type
Room Thermostat
In scope of WEEE
Yes
Installation
On-wall
Interfaces
Wireless
IP protection class
IP21
NC/NO
Yes
Noiseless switching
Yes
Number of channels
0
Product group
Floor Heating Controls
PWM
Yes
REACH Candidate List substances
No
Scheduling
Yes
Suitable for
230V or 24V actuators
Supply batteries
2 x 1,5 V AA-Alkaline batteries
Supply voltage [V]
3 V
Temperature control
Yes
Temperature limitation
Yes
Temperature set-back button
No
Temperature setting range [°C] [Max]
35 °C
Temperature setting range [°C] [Min]
5 °C
Thermal feedback
No
Transmission frequency [MHz]
868.6 MHz
Type
Danfoss Icon™ RT wireless
UNSPSC CODE
41112209
Usage
Display with IR Floor Sensor
Valve excercise
Yes
Weight per battery
23 g
Wireless transmission [m] [Max]
30 m
088U1113
Danfoss Icon tamper-proof cover 86x86
Icon_Somfy_brochure
Danfoss Icon™ Wireless Room Thermostat
Danfoss Icon™ Wireless Thermostats (Installation Guide for Danfoss Link™ CC)
Danfoss Icon™ Wireless Thermostats (Installation Guide)
Find optimal thermal comfort with underfloor heating systems
Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34
Danfoss EU-UK VJMDB102.05
CAB UA.R.TR.052.253-18
Danfoss Icon Display 088U1015 L
