088U1141
Part Number: 088U1141
Product Information
Extended Description

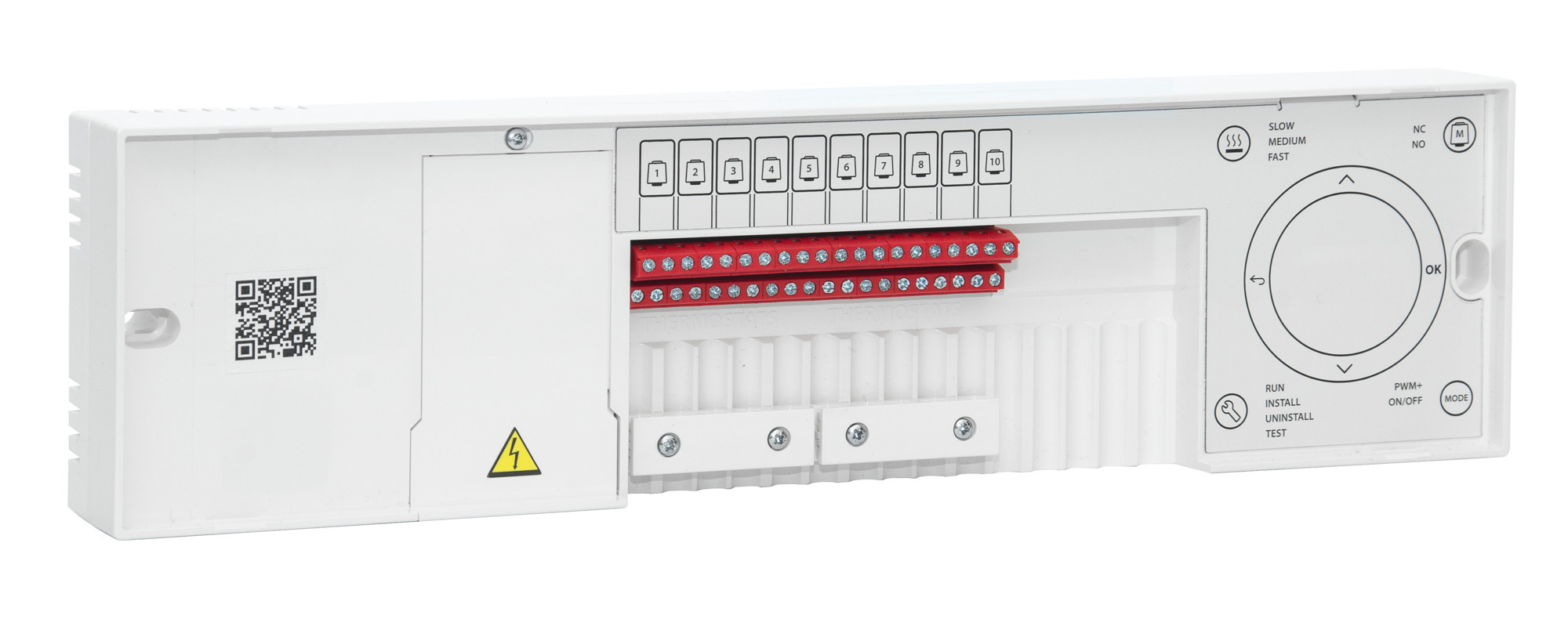

088U1141 Danfoss: OTA, for 24V actuators, 10 channels, upgradeable to wireless, Wireless/Wired 24V
Gross weight
1.354 Kilogram
Net weight
1.354 Kilogram
Volume
4.221 Liter
EAN
5702424048846
Actuator on radiator
Yes
Adaptive learning
Yes
App control enabled
Yes
Automatic balancing
Yes
Away input
Yes
Boiler relay
Yes
Capacitive touch
Yes
China RoHS compliance
Out of scope
Cooling input
Yes
Description
OTA, for 24V actuators, 10 channels, upgradeable to wireless
Dual mode
Yes
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
No
Heating control type
Master Controller
In scope of WEEE
Yes
Installation
On-wall
Interfaces
Wireless/Wired 24V
IP protection class
IP20
Masters connected [Max]
3
NC/NO
Yes
Number of actuators max
10
Number of channels
10
Number of outputs [pc]
10 pc
Output voltage [V] AC
24 V
Output voltage [V] DC
24 V
Power per output [W] [Max]
3 W
Product group
Floor Heating Controls
Pump relay
Yes
PWM
Yes
REACH Candidate List substances
No
Suitable for
24V actuators
Supply voltage [V]
230 V
Temperature control
Yes
Type
Danfoss Icon™ 24V MC
UNSPSC CODE
40101830
Upgradable to wireless
Yes
Usage
Upgradeable
Valve excercise
Yes
087B1165
ESM-11, Pt 1000
088H3110
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 24, NC, 0.950 m
088H3140
Thermal actuators, TWA-K, M 30 x 1.5, Supply voltage [V] AC: 24, NC, 0.950 m
088H3141
Thermal actuators, TWA-K, M 30 x 1.5, NO, 0.950 m
088U0251
Floor Heating Controls, Danfoss Icon, Dew point sensor, 24.0 V, Output voltage [V] AC: 230, Number of channels: 0, Strappable
088U1100
Floor Heating Controls, Danfoss Icon, Expansion module, 230.0 V, Number of channels: 0, Attachable
088U1101
App Module for Master Controller to enable wifi and APP control on Danfoss Icon
088U1102
Repeater is used to extend the range between thermostats and Master Controller
088U1103
Floor Heating Controls, Danfoss Icon, Radio module, 5.0 V, Number of channels: 0, Attachable
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
