088U1142

Part Number: 088U1142
088U1142
Manufacturer
Danfoss
Part number
088U1142
Category

Product Information

Extended Description

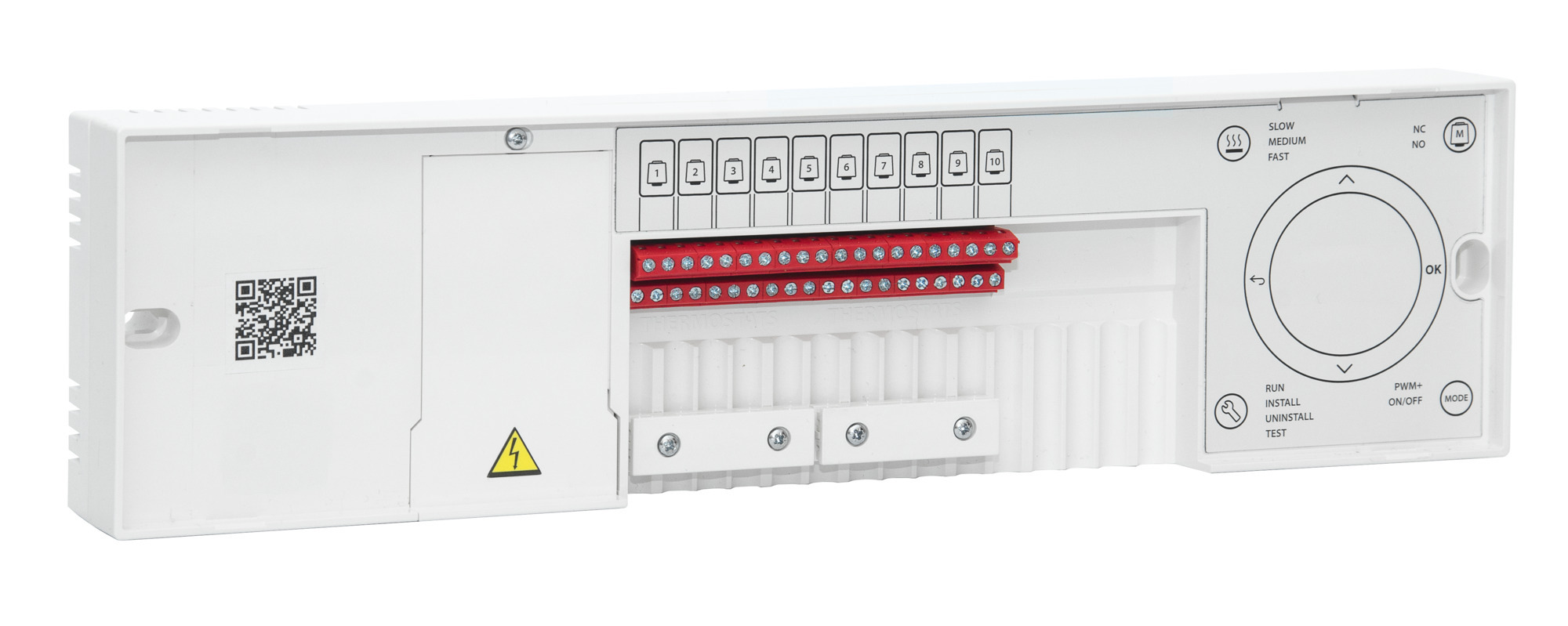

088U1142 Danfoss: OTA, for 24V actuators, 15 channels, upgradeable to wireless, Wireless/Wired 24V
Gross weight
1.476 Kilogram
Net weight
1.384 Kilogram
Volume
4.221 Liter
EAN
5702424048860
Actuator on radiator
Yes
Adaptive learning
Yes
App control enabled
Yes
Automatic balancing
Yes
Away input
Yes
Boiler relay
Yes
Capacitive touch
Yes
China RoHS compliance
Out of scope
Cooling input
Yes
Description
OTA, for 24V actuators, 15 channels, upgradeable to wireless
Dual mode
Yes
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
No
Heating control type
Master Controller
In scope of WEEE
Yes
Installation
On-wall
Interfaces
Wireless/Wired 24V
IP protection class
IP20
Masters connected [Max]
3
NC/NO
Yes
Number of actuators max
15
Number of channels
15
Number of outputs [pc]
15 pc
Output voltage [V] AC
24 V
Output voltage [V] DC
24 V
Power per output [W] [Max]
3 W
Product group
Floor Heating Controls
Pump relay
Yes
PWM
Yes
REACH Candidate List substances
No
Suitable for
24V actuators
Supply voltage [V]
230 V
Temperature control
Yes
Type
Danfoss Icon™ 24V MC
UNSPSC CODE
40101830
Upgradable to wireless
Yes
Usage
Upgradeable
Valve excercise
Yes
087B1165
ESM-11, Pt 1000
088H3140
Thermal actuators, TWA-K, M 30 x 1.5, Supply voltage [V] AC: 24, NC, 0.950 m
088U1103
Floor Heating Controls, Danfoss Icon, Radio module, 5.0 V, Number of channels: 0, Attachable
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
088U1130
Zigbee integration on Danfoss Ico 24V Master Controller.
088U1131
Zigbee Repeater is used to extend the range between Zigbee devices
193B2148
ABN Actuator, Flexible, Supply voltage [V] AC: 24, NC, 1.000 m
088H3110
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 24, NC, 0.950 m
088H3111
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 24, NO, 0.950 m
088H3141
Thermal actuators, TWA-K, M 30 x 1.5, NO, 0.950 m
Icon_Somfy_brochure Danfoss Icon™ 24V Master Controller, OTA (Data Sheet) Danfoss Icon™ Master Controller 24V (Installation Guide) Danfoss Icon™ Master Controller 24V (Operation guide) Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss EU-UK VJMCA.102.04 Danfoss Icon Master Controller 088U1071 - right Danfoss Icon Master Controller 088U1071 - left Danfoss Icon bedroom environment Danfoss Icon room environment Danfoss frame 560x315_Danfoss Icon RT infrared thermostat Danfoss Zigbee Repeater 088U1131 (R) Danfoss Icon Master Controller 088U1071 - front
