088U2000

Part Number: 088U2000
088U2000
Manufacturer
Danfoss
Part number
088U2000
Category

Product Information

Extended Description

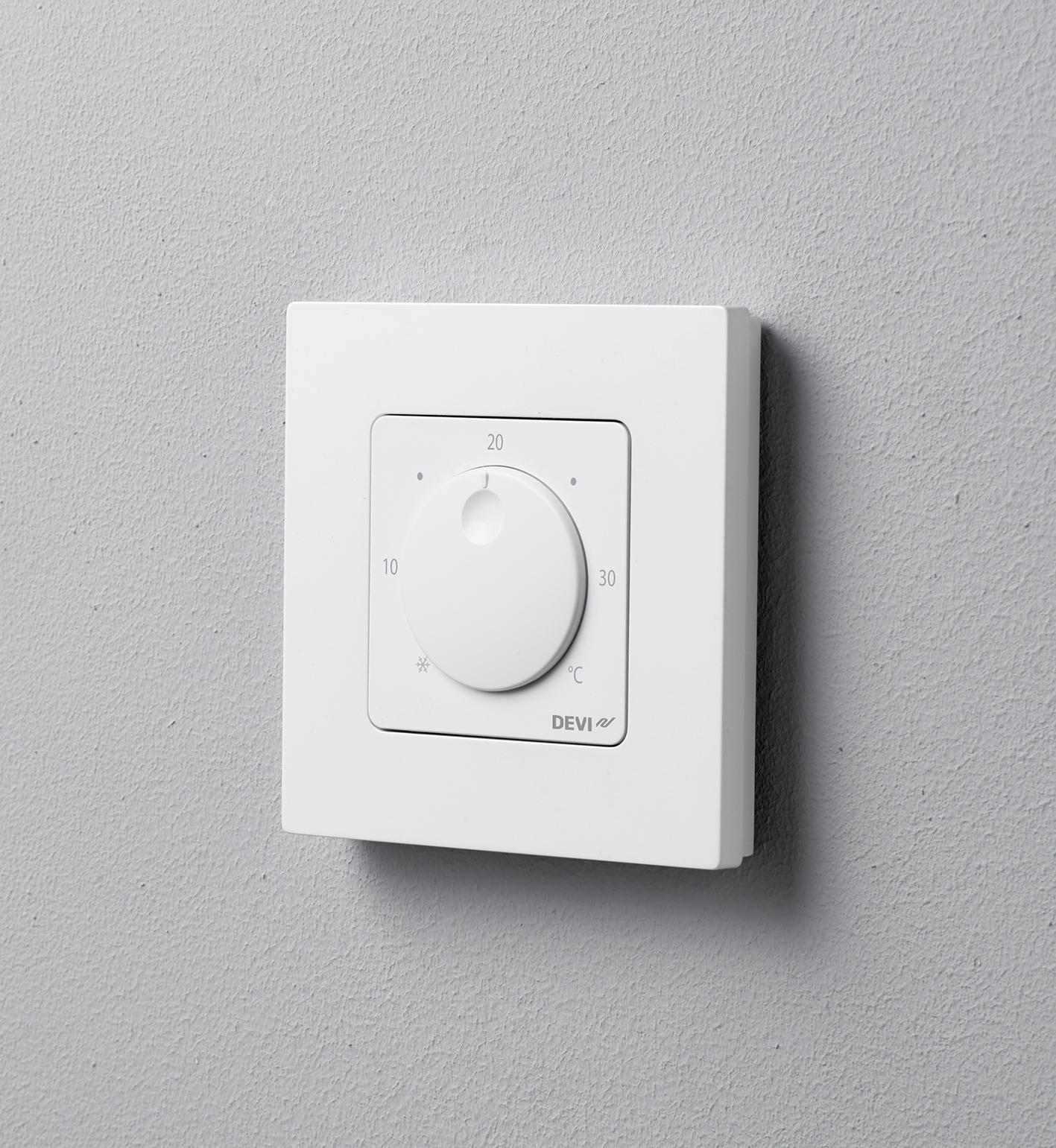

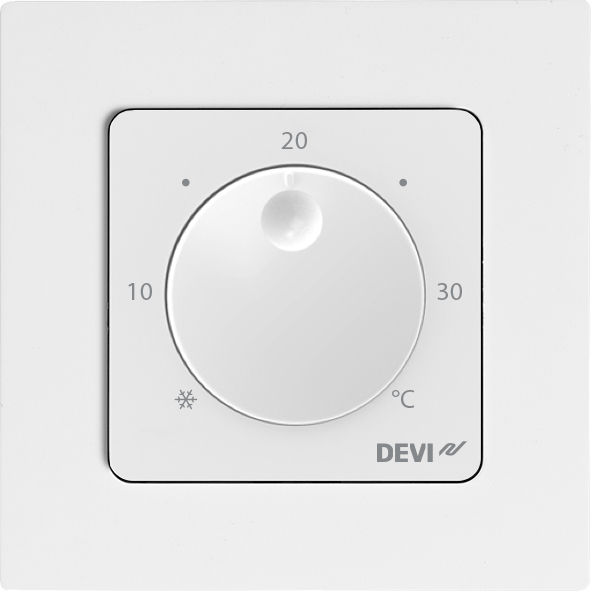

088U2000 Danfoss: DEVIwet 230V Dial, Wired 230V
Gross weight
0.1 Kilogram
Net weight
0.08 Kilogram
Volume
0.518 Liter
EAN
5702425143410
Actuator on radiator
No
Adaptive learning
No
App control enabled
No
Automatic balancing
No
Away input
No
Capacitive touch
No
China RoHS compliance
Out of scope
Cooling input
No
Description
DEVIwet 230V Dial
Dual mode
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
Yes
Floor sensor enabled
No
Floor sensor option
No
Frequency range [Hz] [Max]
60 Hz
Frequency range [Hz] [Min]
50 Hz
Heating control type
Room Thermostat
In scope of WEEE
Yes
Installation
In-wall
Interfaces
Wired 230V
IP protection class
IP21
NC/NO
Yes
Noiseless switching
Yes
Number of actuators max
5
On-wall
No
Output voltage [V] AC
230 V
Power per output [W] [Max]
10 W
Product description
DEVIwet
Product group
Floor Heating Controls
PWM
No
REACH Candidate List substances
No
Scheduling
No
Stem position
Dial
Suitable for
230 V actuators
Supply voltage [V]
230 V
Tamper proof
No
Temperature control
Yes
Temperature limitation
Yes
Temperature set-back button
No
Temperature setting range [°C] [Max]
30 °C
Temperature setting range [°C] [Min]
5 °C
Thermal feedback
Yes
Type
FH Room Thermostats
UK RoHS compliance
Out of scope
Usage
Dial
Valve excercise
No
