088U2002

Part Number: 088U2002
088U2002
Manufacturer
Danfoss
Part number
088U2002
Category

Product Information

Extended Description

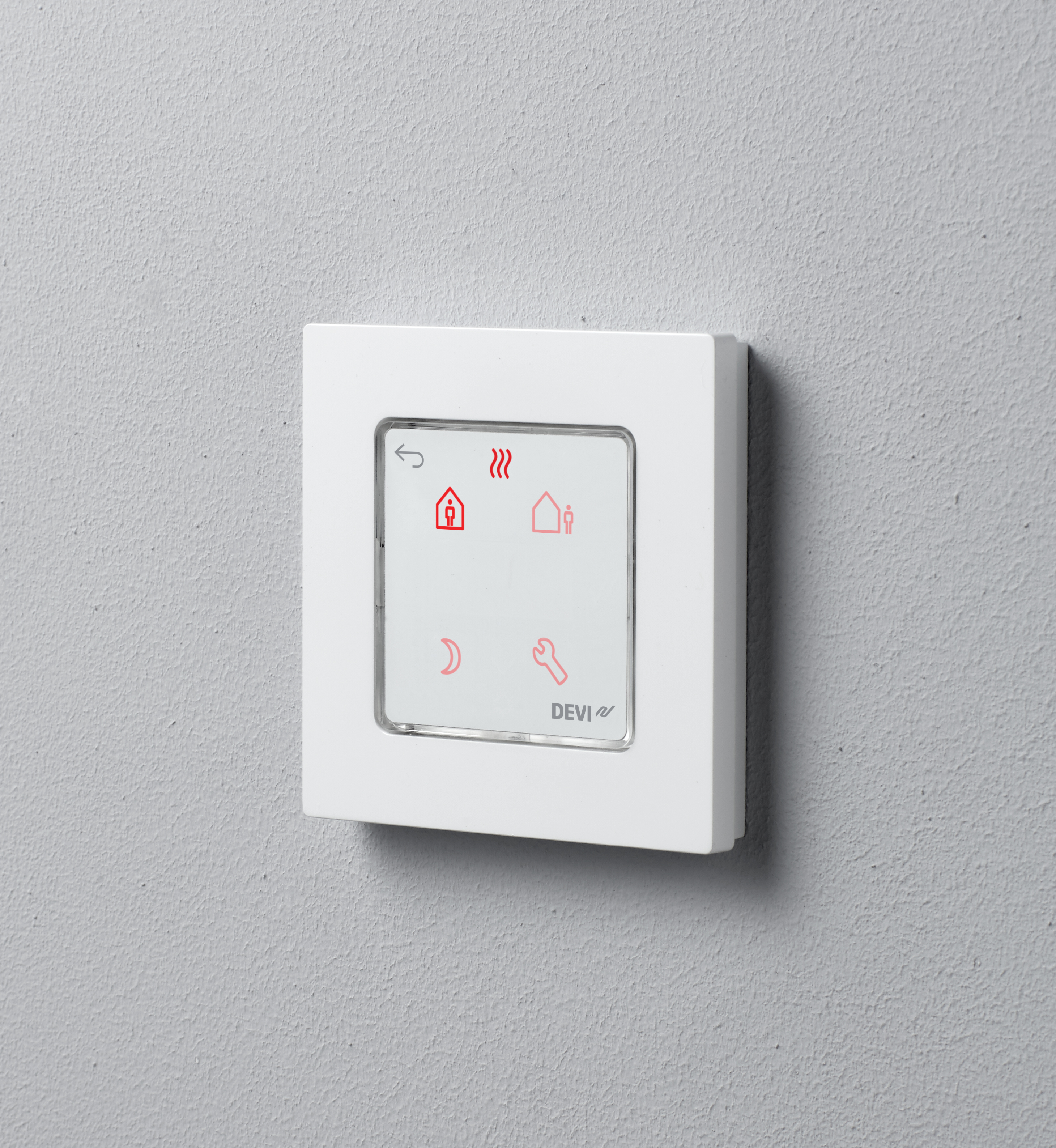

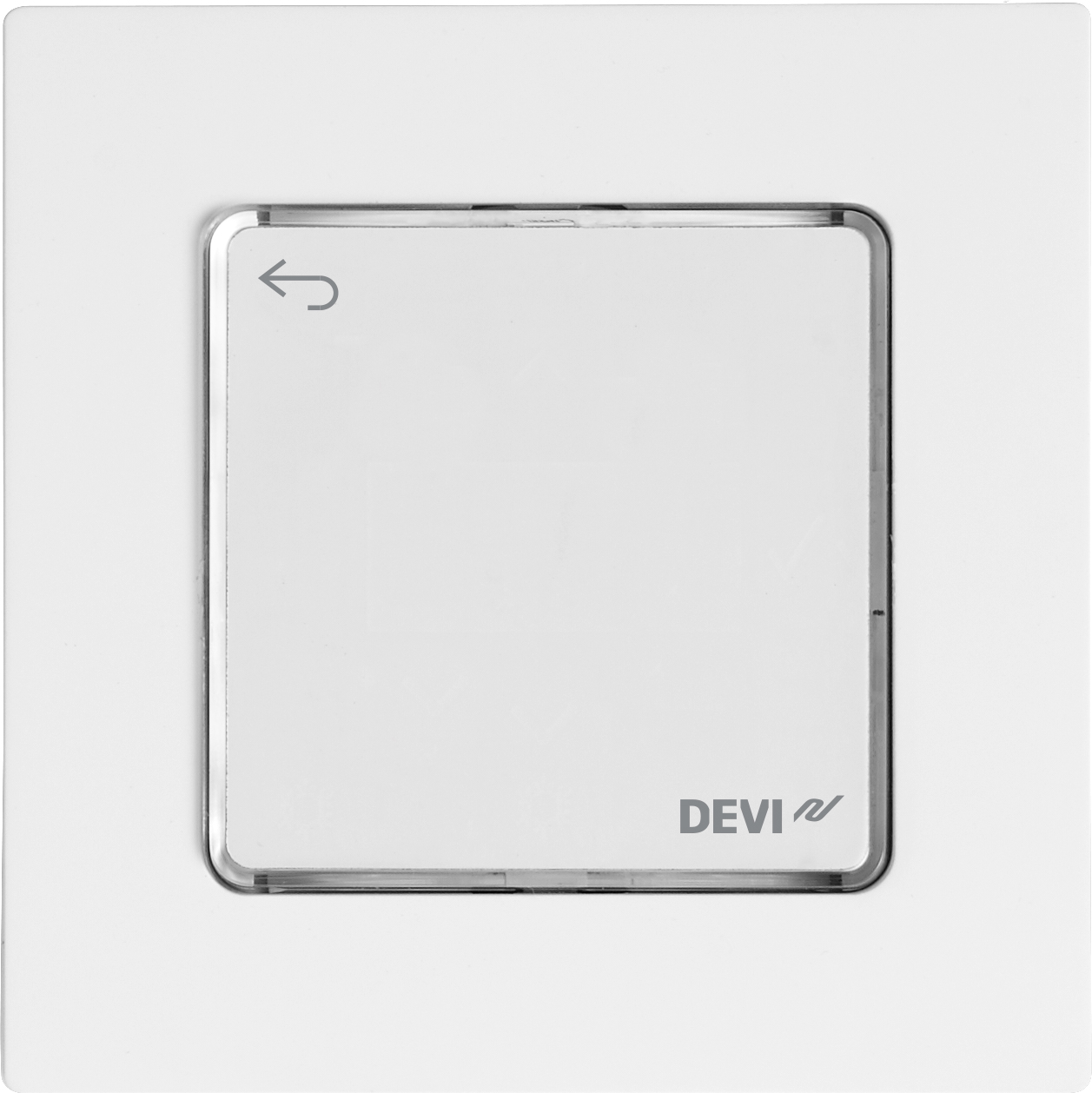

088U2002 Danfoss: DEVIwet 230V Programmable, Wired 230V
Gross weight
0.168 Kilogram
Net weight
0.148 Kilogram
Volume
0.875 Liter
EAN
5702425143373
Actuator on radiator
Yes
Adaptive learning
Yes
App control enabled
No
Automatic balancing
No
Away input
Yes
Capacitive touch
Yes
China RoHS compliance
Out of scope
Cooling input
Yes
Description
DEVIwet 230V Programmable
Dual mode
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fits into switch frames
Yes
Floor sensor enabled
Yes
Floor sensor option
Yes
Frequency range [Hz] [Max]
60 Hz
Frequency range [Hz] [Min]
50 Hz
Heating control type
Room Thermostat
In scope of WEEE
Yes
Installation
In-wall
Interfaces
Wired 230V
IP protection class
IP21
NC/NO
Yes
Noiseless switching
Yes
Number of actuators max
5
On-wall
No
Output voltage [V] AC
230 V
Power per output [W] [Max]
10 W
Product description
DEVIwet
Product group
Floor Heating Controls
PWM
Yes
REACH Candidate List substances
No
Scheduling
Yes
Stem position
Programmable
Suitable for
230 V actuators
Supply voltage [V]
230 V
Tamper proof
No
Temperature control
Yes
Temperature limitation
Yes
Temperature set-back button
Yes
Temperature setting range [°C] [Max]
35 °C
Temperature setting range [°C] [Min]
5 °C
Thermal feedback
No
Type
FH Room Thermostats
UK RoHS compliance
Out of scope
Usage
Programmable
Valve excercise
Yes
Hydronic floor heating - end-user brochure Hydronic Specialties Controls Catalog and Application Guide FH-WT/-WP/-WS Room Thermostats, 24 VAC FH-WF Floor Sensor Room Thermostat FH-WT, FH-WS, FH-WP Danfoss Icon - Comfort control, made to blend in Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss EU VJMBA102.02 DEVIwet Programmable In-wall 088U2002 DEVIwet Programmable 088U2002 / Dial 088U2001 In-wall DEVIwet Programmable 088U2002 / Dial 088U2001 In-wall
