088U2100

Part Number: 088U2100
088U2100
Manufacturer
Danfoss
Part number
088U2100
Category

Product Information

Extended Description

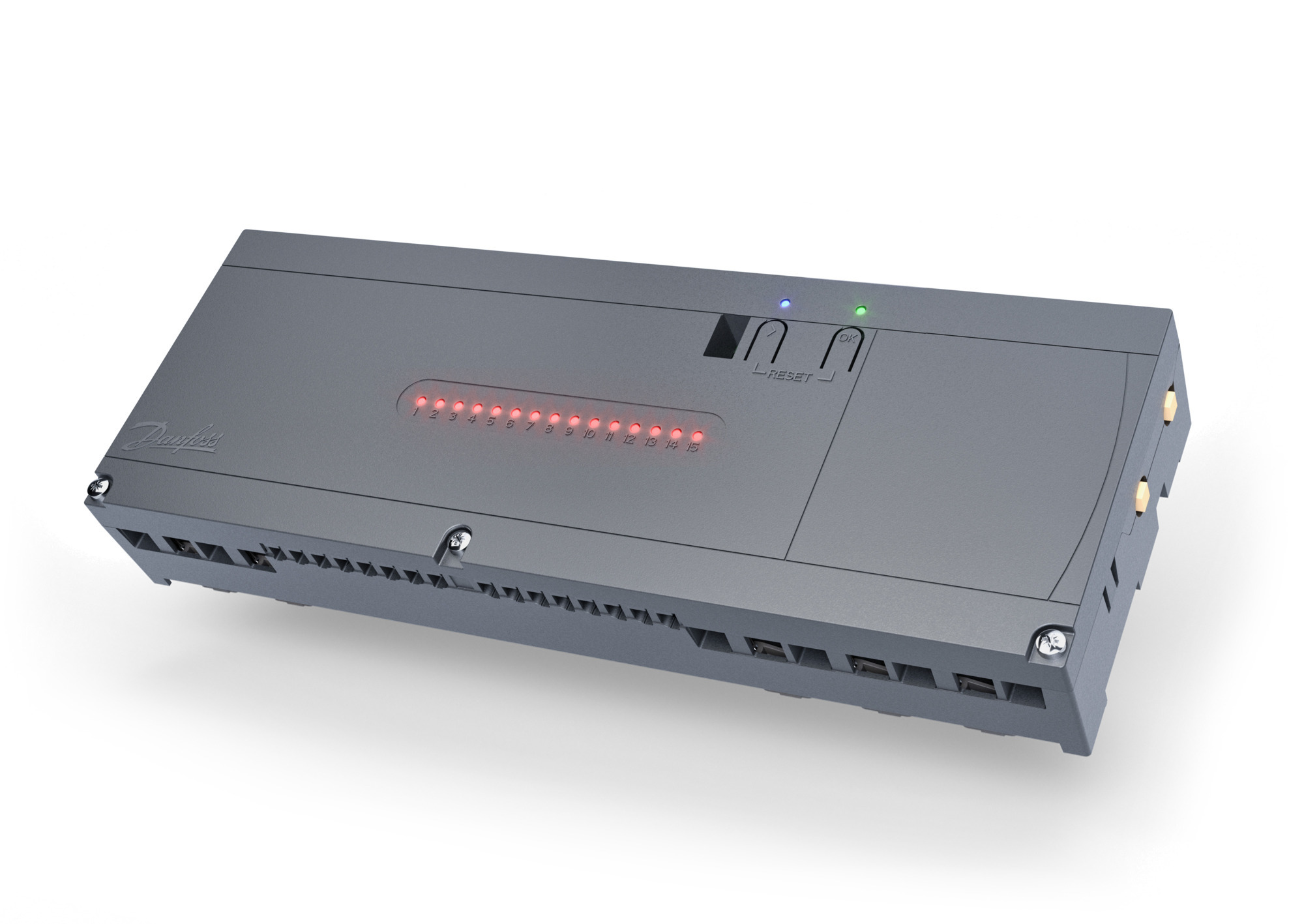

088U2100 Danfoss: Basic, Zigbee/Bluetooth communication, EU version, Wireless/Wired 24V
Gross weight
1.064 Kilogram
Net weight
0.934 Kilogram
Volume
3.956 Liter
EAN
5715162299982
Actuator on radiator
Yes
Adaptive learning
Yes
App control enabled
Yes
Automatic balancing
Yes
Away input
No
Boiler relay
Yes
China RoHS compliance
Out of scope
Cooling input
No
Description
Basic, Zigbee/Bluetooth communication, EU version
Dual mode
Yes
EEE category
5 small equipment (any external dimension 50 cm)
Heating control type
Main Controller
Humidity sensor
No
In scope of WEEE
Yes
In-wall
No
Installation
On-wall
Interfaces
Wireless/Wired 24V
IP protection class
IP20
NC/NO
Yes
Number of actuators max
15
Number of channels
15
Number of outputs [pc]
15 pc
Output voltage [V] AC
230 V
Output voltage [V] DC
230 V
Power per output [W] [Max]
2 W
Product group
Floor Heating Controls
Product height/depth [mm]
120 mm
Product length [mm]
330 mm
Pump relay
Yes
PWM
Yes
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Scheduling
Yes
SCIP dossier no.
0fa28be2-068f-4328-b200-4e18a9146679
SCIP dossier product name
"Controller for hydronic heating/cooling"
Suitable for
230V actuators
Supply Flow temperature control
No
Supply voltage [V]
230 V
Temperature control
Yes
Temperature limitation
Yes
Thermal feedback
Yes
Transmission frequency [GHz]
2.4 GHz
Type
Danfoss Icon2™ MC
Usage
Basic
Valve excercise
Yes
