088U2121

Part Number: 088U2121
088U2121
Manufacturer
Danfoss
Part number
088U2121
Category

Product Information

Extended Description

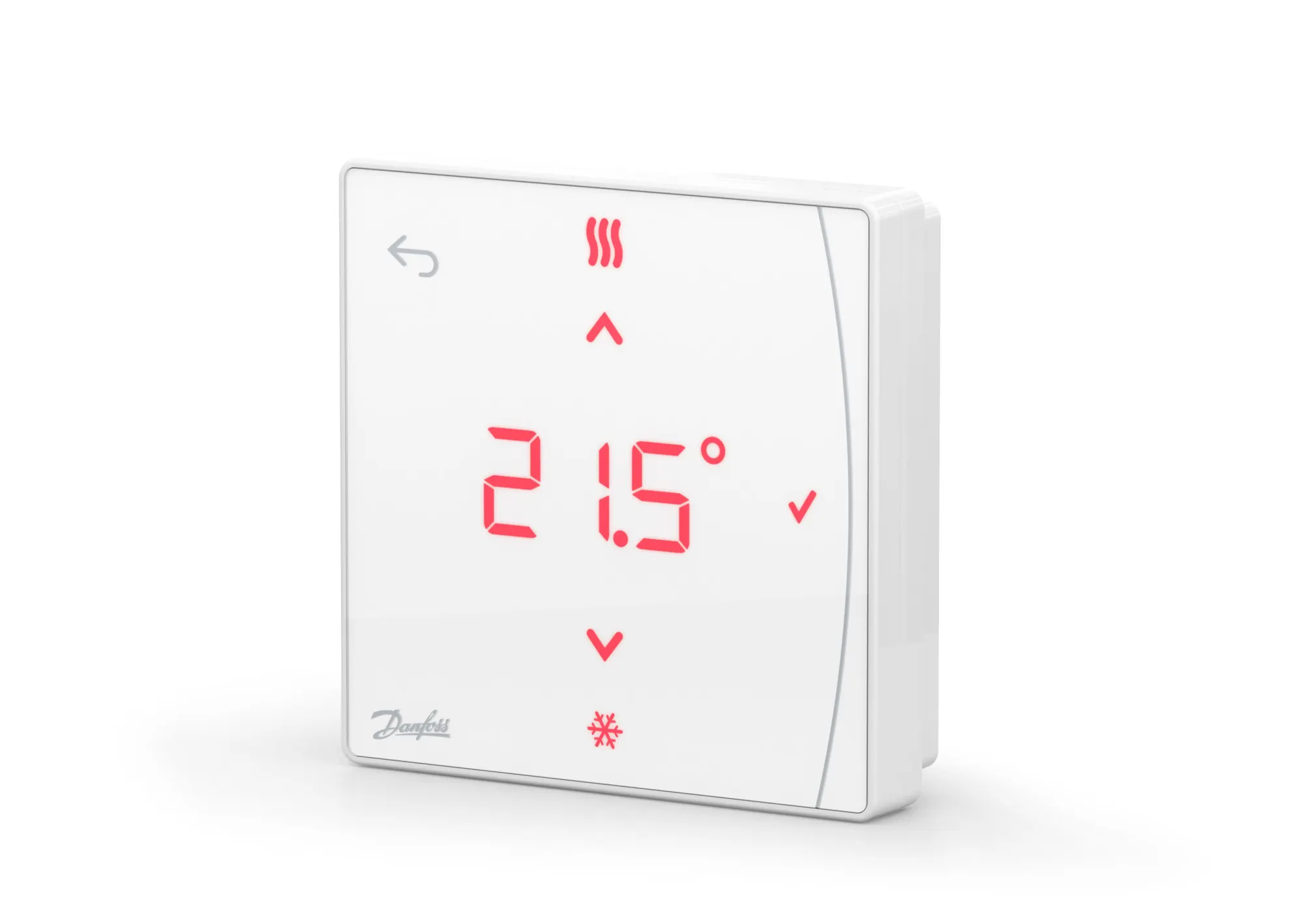

088U2121 Danfoss: Room Thermostat, Zigbee communication, Wireless
Gross weight
84 Gram
Net weight
64 Gram
Volume
0.306 Liter
EAN
5715162300268
1 Primary battery SUM weight Kg
226
1 Primary battery weight Kg
113
Actuator on radiator
Yes
Adaptive learning
Yes
App control enabled
Yes
Battery qty
2
Battery type or Name
Alkaline AAA
China RoHS compliance
Out of scope
Contain batteries
Yes
Cooling input
Yes
Description
Room Thermostat, Zigbee communication
Dual mode
Yes
EEE category
5 small equipment (any external dimension 50 cm)
Fits into switch frames
No
Floor sensor enabled
No
Heating control type
Room Thermostat
Humidity sensor
Yes
In scope of WEEE
Yes
In-wall
No
Installation
Attachable
Interfaces
Wireless
IP protection class
IP20
Noiseless switching
Yes
Number of channels
0
On-wall
Yes
Product group
Floor Heating Controls
Product height/depth [mm]
57 mm
Product length [mm]
57 mm
Product width [mm]
57 mm
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Scheduling
Yes
SCIP dossier no.
fc15e597-943b-450a-9fe2-6ab45e9a4e7c
SCIP dossier product name
"Wireless thermostat"
Suitable for
230V or 24V actuators
Supply batteries
2 x 1,5 V AAA-Alkaline batteries
Supply voltage [V]
3 V
Temperature control
Yes
Temperature limitation
Yes
Temperature set-back button
Yes
Temperature setting range [°C] [Max]
35 °C
Temperature setting range [°C] [Min]
5 °C
Transmission frequency [GHz]
2.4 GHz
Type
Danfoss Icon2™ RT wireless
Usage
Display
Valve excercise
Yes
Weight per battery
11 g
Danfoss Icon2™ RT (Data Sheet) Danfoss Icon2 RT, RT Featured and Sensor (Quick Guide) Danfoss Icon2™ / 24V RT Room Thermostat (Installation Guide) Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 ACMA CF16605_AU-Rev.00 Danfoss EU-UK 10000066562.01 RSM CF16605_NZ-Rev.00 Danfoss Icon2_RT_R_high, 088U212X Danfoss Icon2_RT_Back_Magnet_high, 088U212X Danfoss Icon2_RT_Angled_high, 088U212X Danfoss Icon2_RT_Back_Magnet_Tape_high, 088U212X Danfoss Icon2_RT_F_high, 088U212X ICON2_RT_RFA Danfoss Icon2_RT_L_high, 088U212X Danfoss Icon family photo
