088U2128

Part Number: 088U2128
088U2128
Manufacturer
Danfoss
Part number
088U2128
Category

Product Information

Extended Description

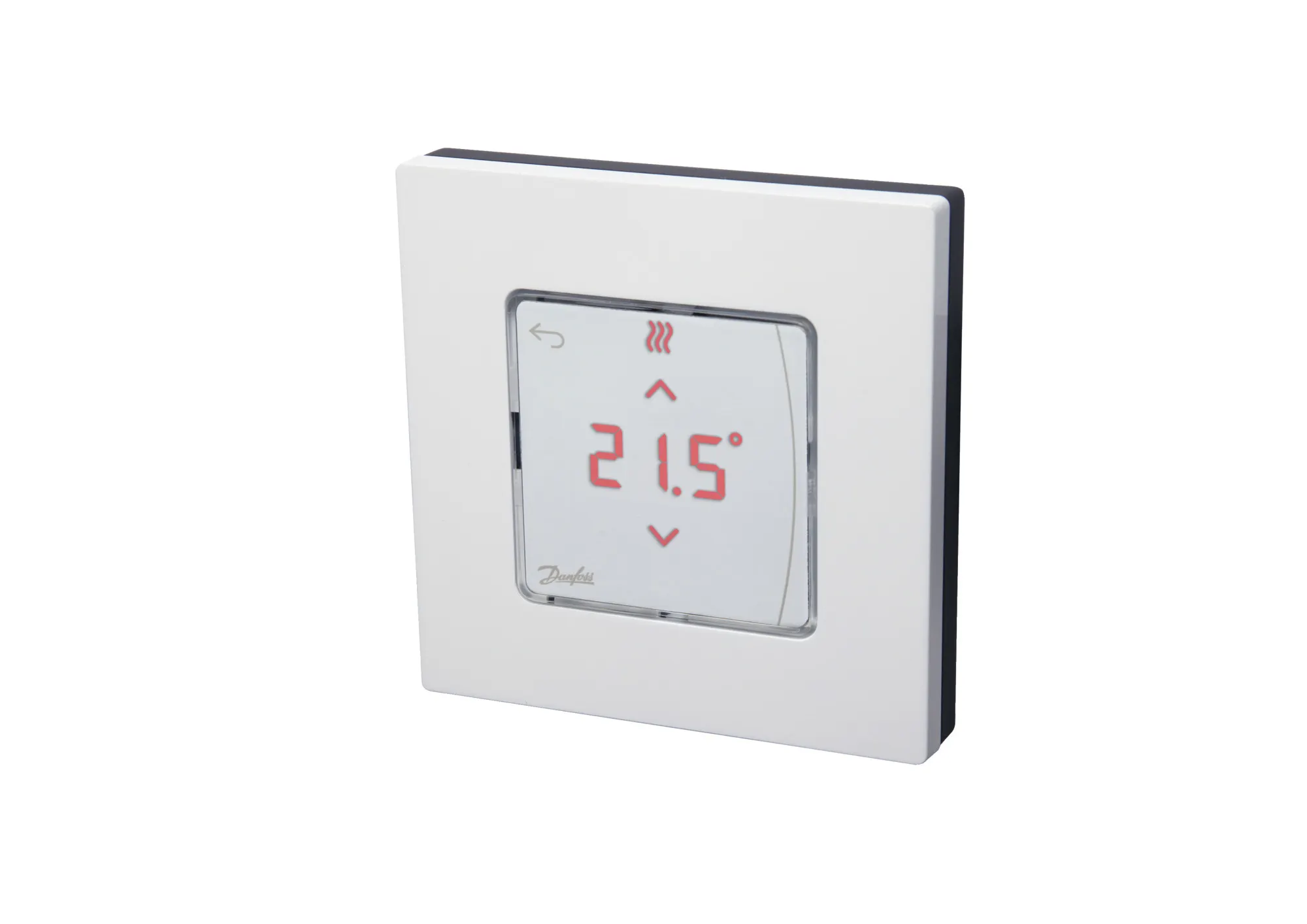

088U2128 Danfoss: 24V Room Thermostat, On-wall, 86x86, Wired 24V
Gross weight
158 Gram
Net weight
138 Gram
Volume
0.909 Liter
EAN
5715162300367
Actuator on radiator
Yes
Adaptive learning
Yes
App control enabled
Yes
China RoHS compliance
Out of scope
Cooling input
Yes
Description
24V Room Thermostat, On-wall, 86x86
Dual mode
Yes
EEE category
5 small equipment (any external dimension 50 cm)
Fits into switch frames
Yes
Floor sensor enabled
Yes
Heating control type
Room Thermostat
Humidity sensor
No
In scope of WEEE
Yes
In-wall
No
Installation
On-wall
Interfaces
Wired 24V
IP protection class
IP20
NC/NO
Yes
Noiseless switching
Yes
Number of channels
0
On-wall
Yes
Output voltage [V] AC
24 V
Output voltage [V] DC
24 V
Product group
Floor Heating Controls
Product height/depth [mm]
86 mm
Product length [mm]
86 mm
REACH Candidate List substances
Lead monoxide (PbO, CAS no. 1317-36-8),Diboron trioxide (B2O3, CAS no. 1303-86-2)
SCIP dossier no.
1e4e8512-7c17-4719-8afc-8a90aa2773fb
SCIP dossier product name
"24V wired thermostat"
Suitable for
230V or 24V actuators
Supply voltage [V]
24 V
Temperature control
Yes
Temperature limitation
Yes
Temperature set-back button
Yes
Temperature setting range [°C] [Max]
35 °C
Temperature setting range [°C] [Min]
5 °C
Transmission frequency [GHz]
2.4 GHz
Type
Danfoss Icon2™ 24V RT wired
Usage
Display
Valve excercise
Yes
Danfoss Icon2™ / 24V RT thermostat (Data Sheet) Danfoss Icon2™ / 24V RT Room Thermostat (Installation Guide) Danfoss Icon2™ / 24V RT Room Thermostat (User Guide) Find optimal thermal comfort with underfloor heating systems Soft value overview_Room Controls_Mixing Shunts_Manifolds_PL34 Danfoss MD 600000325683.02 Danfoss MD 600000325683.02 Danfoss MD 600000325683.02 Danfoss MD 600000325683.02 Danfoss MD 600000325683.02 Danfoss MD 600000325683.02 Danfoss MD 600000325683.02 Danfoss MD 600000325683.02 Danfoss MD 600000325683.02 Danfoss MD 600000325683.02 Danfoss Icon Display 088U1015 L ICON2_RT_24V_On-wall_86x86_RFA Danfoss Icon family photo
