088X0025
Part Number: 088X0025
Product Information
Extended Description

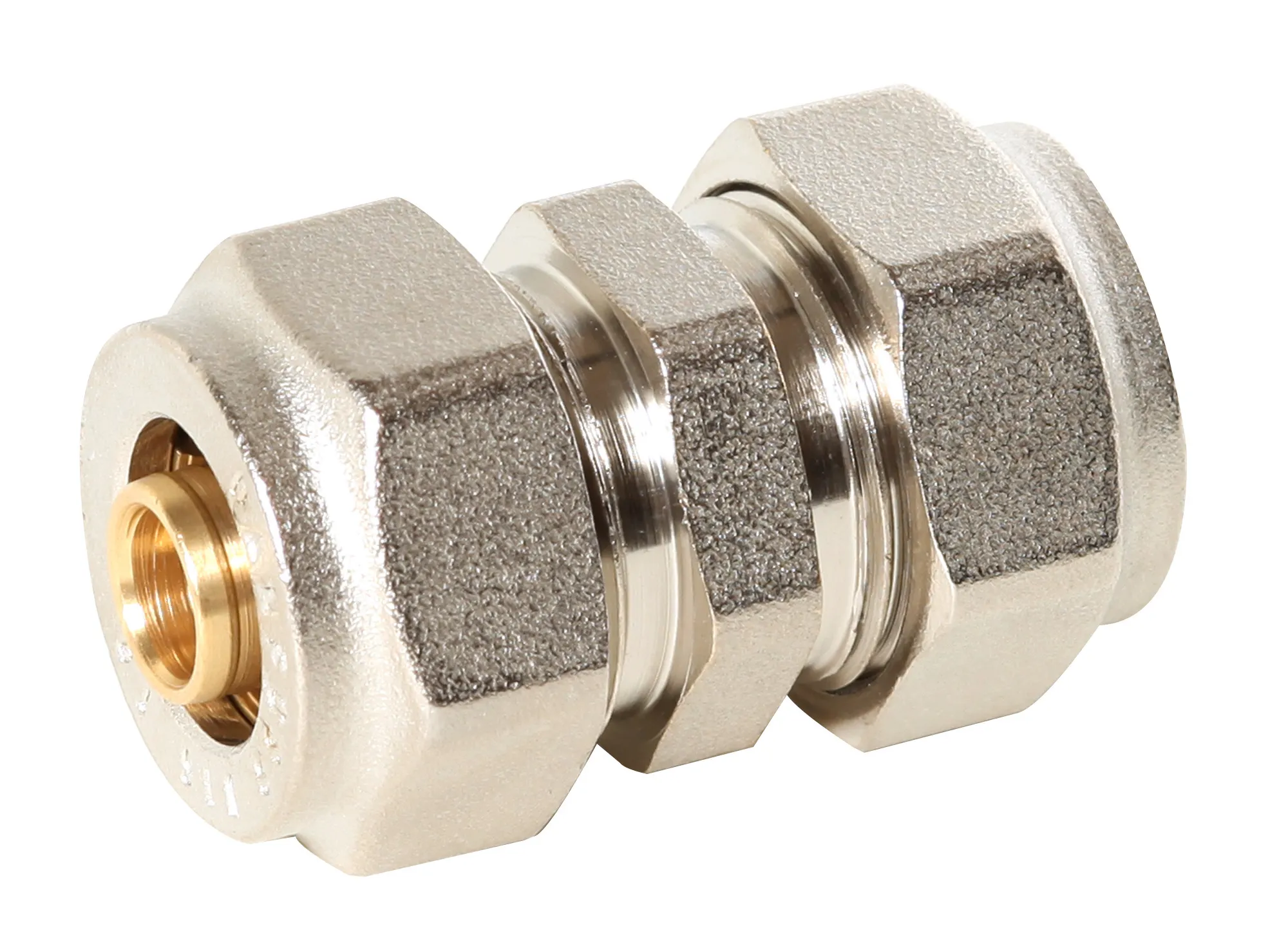

088X0025 Danfoss: Screw coupling 3/4" x 16 x 2 mm
Gross weight
0.177 Kilogram
Net weight
0.177 Kilogram
Volume
0.161 Liter
EAN
5702420089300
Connection diameter side 1 [mm]
16 mm
Connection diameter side 2 [mm]
16 mm
Connection diameter side 3 [mm]
0 mm
Connection size
3/4
Connection types
Screw coupling
Description
Screw coupling 3/4" x 16 x 2 mm
Flow temperature [°C] [Max]
95 °C
Material
Brass / Stainless Steel
Product group
FH Pipes
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
be151eaf-857d-4d11-9f90-33cf7c736e53
SCIP dossier product name
Screw coupling
Type
Fittings
Usage
Floor heating pipes
Working pressure [bar] [Max]
10 bar
Working Temperature [°C] [Max]
70 °C
