088X0100
Part Number: 088X0100
Product Information
Extended Description

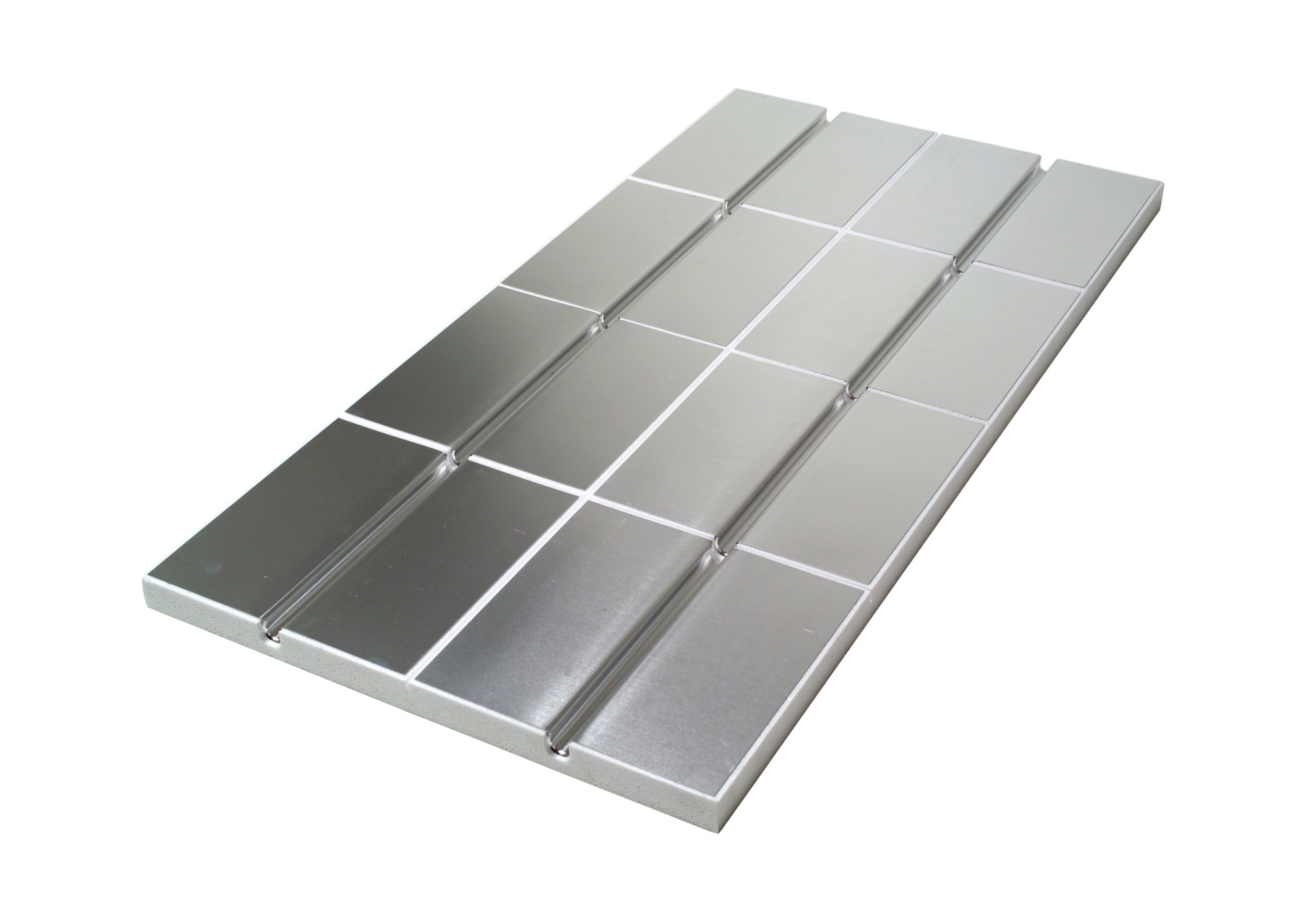

088X0100 Danfoss: SpeedUp heat panel CZ 0,5m2
Gross weight
1.2 Kilogram
Net weight
1.2 Kilogram
Volume
15 Liter
EAN
5702420089676
Center distance [mm]
125 mm
Compressive strength [kPa]
240 KPa
Coverage area [m=C2=B2]
0.5 m=C2=B2
Description
SpeedUp heat panel CZ 0,5m2
Design load [kN/m2]
8 kN-m
EU RoHS compliance
Out of scope
Heat transmission resistance [m2K/W]
0.86 W/m-K
Length [mm]
1 mm
Material
Aluminium / Expanded Polystyrene foam
Pipe diameter [mm]
16 mm
Product group
Dry Systems SpeedUp
Suitable for
EN 826
Thermal conductivity [W/mK]
0.035 W/m-K
Thickness [mm]
30 mm
Type
Heat Panels
Width [mm]
500 mm
