088X3716

Part Number: 088X3716
088X3716
Manufacturer
Danfoss
Part number
088X3716
Category

Product Information

Extended Description

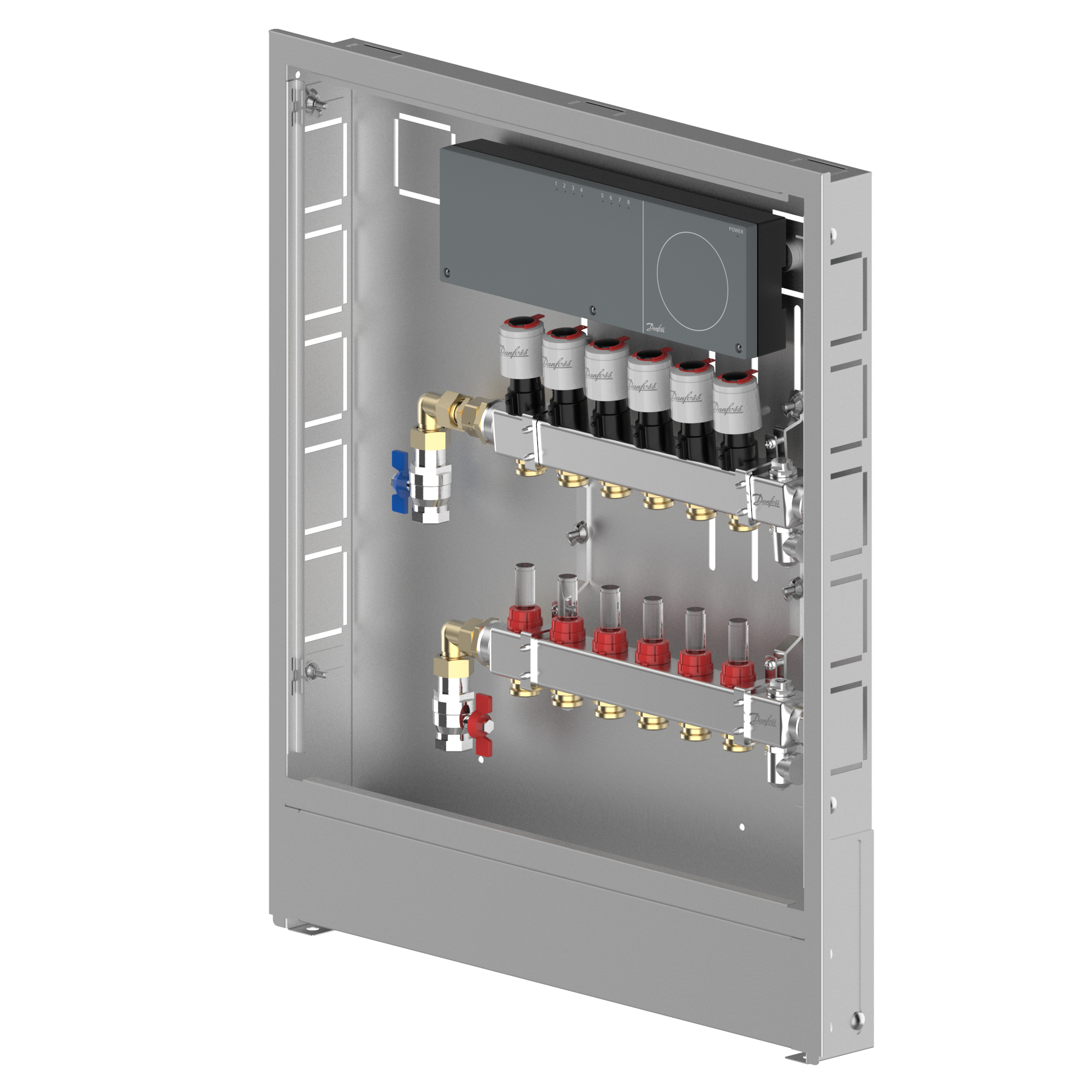

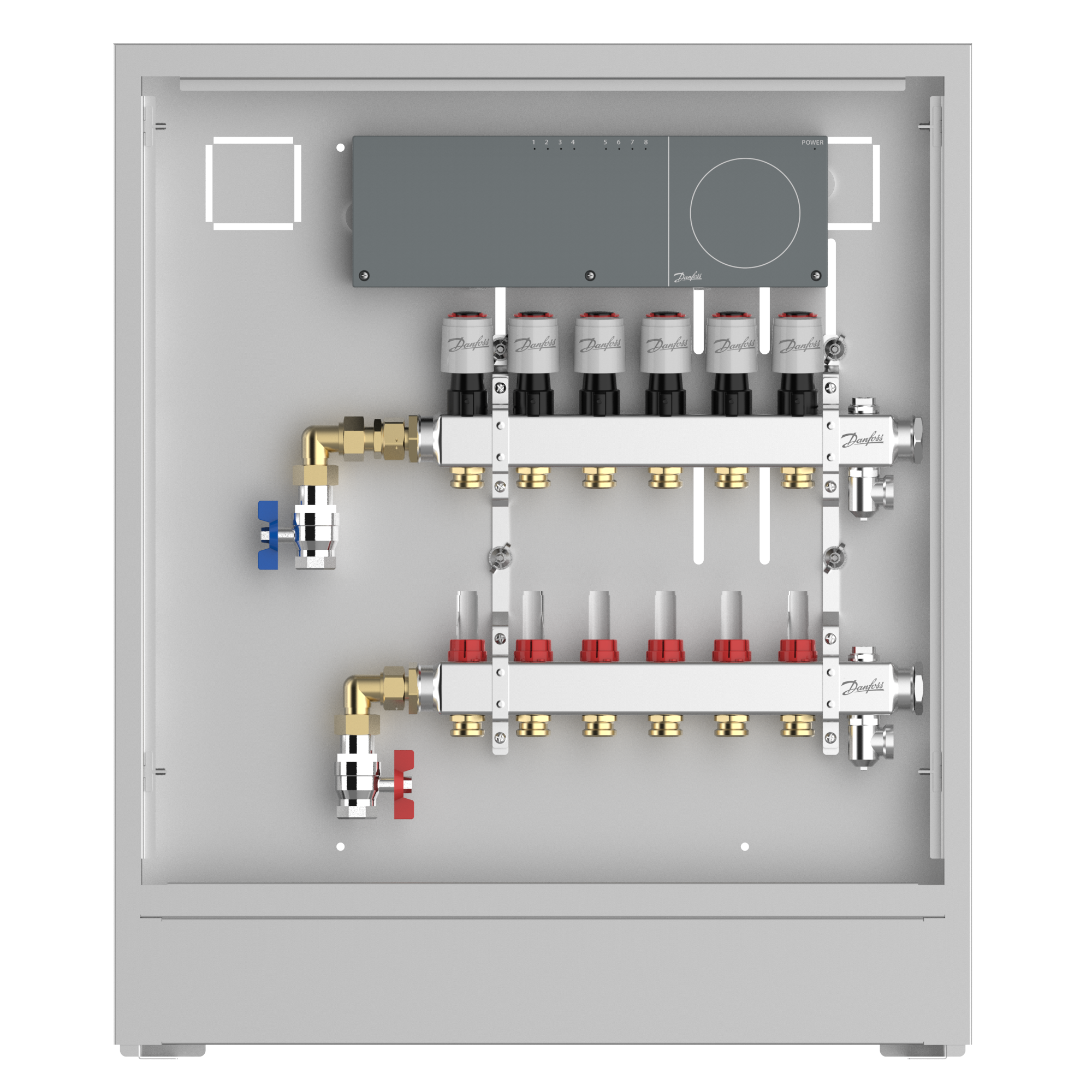

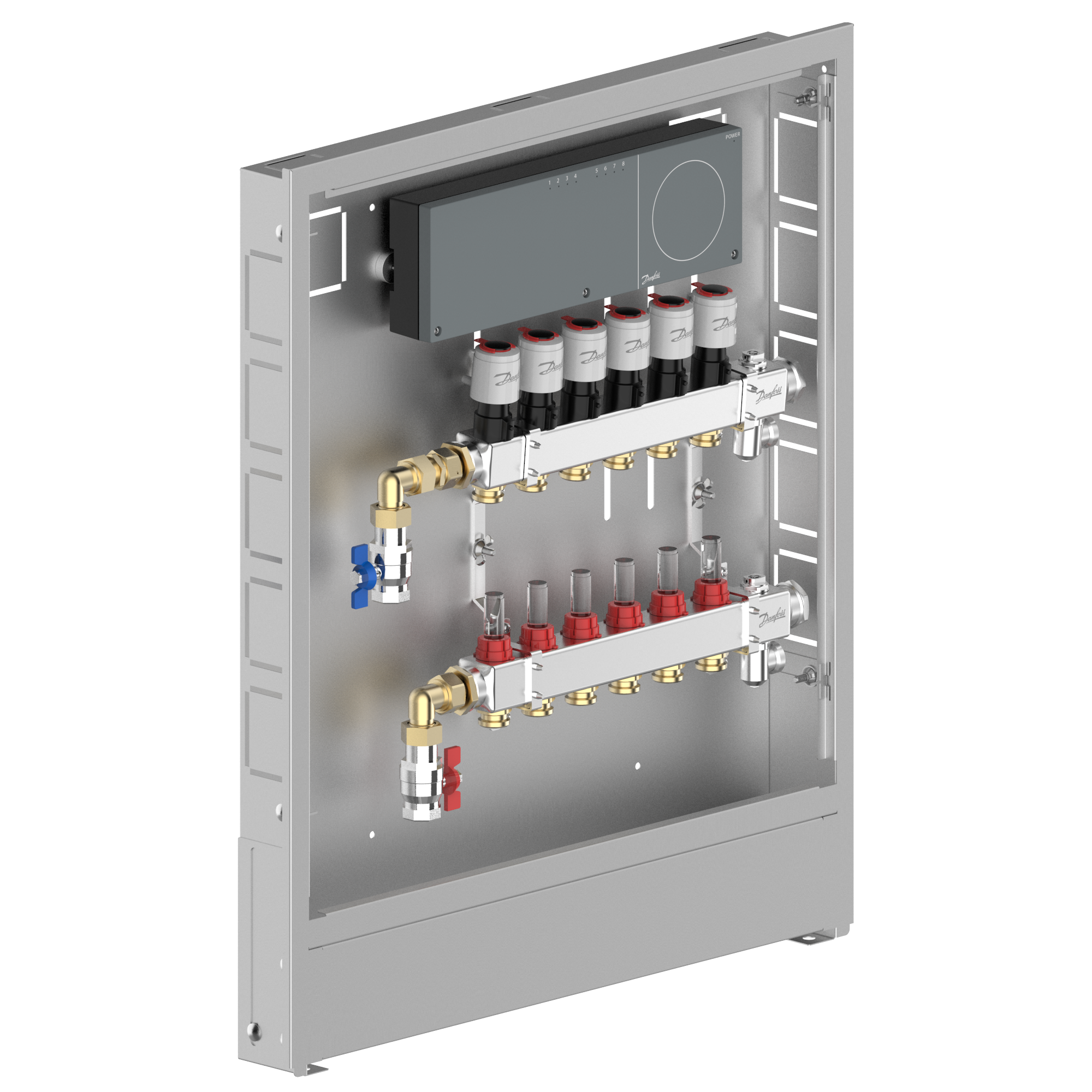

088X3716 Danfoss: Stainless steel manifold, 6 loops, steel cabinet, ICON Wiring center, left version
Gross weight
19.775 Kilogram
Net weight
16.75 Kilogram
Volume
46.945 Liter
EAN
5702424603434
Actuator
230V
Application type
UnoFloor
Approval
CE
Cabinet
Aluzink steelplate, white powder coated
CE evaluated
Yes
Control
ICONTM Wiring center
Description
Stainless steel manifold, 6 loops, steel cabinet, ICON Wiring center, left version
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
In scope of WEEE
Yes
Number of connections
2
Number of heating manifold connections [loops] [Max]
6
Pressure nominal primary [bar]
6 bar
Product group
UnoFloors
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [ËšC]
60 °C
Supply voltage [V]
230V Hz 50
Type
UnoFloor Light C
UL evaluated
Out of scope
Version
Left
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U1040
Floor Heating Controls, Danfoss Icon™ 230V Wiring Center, Wiring center, 230.0 V, Output voltage [V] AC: 230, Number of channels: 8, On-wall
088H3250
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 230, NC, 1.150 m
088X3008
UnoFloor accessories
088U1000
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1010
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1005
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1020
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1025
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
088X3014
UnoFloor accessories
UnoFloor Light / Light C / Light Ci UnoFloor Light Danfoss EU 240806EN670901 UnoFloor VariantA C 6 Loops Left Icon 230V UnoFloor_VariantA_C_6_Loops_Left UnoFloor_VariantA_C_6_Loops_Left UnoFloor Light(C)(CI)_RFA UnoFloor VariantA C 6 Loops Left Icon 230V UnoFloor VariantA C 6 Loops Left Icon 230V 088X3716_UnoFloor_Light_C_6-loops
