088X3970
Part Number: 088X3970
Product Information
Extended Description

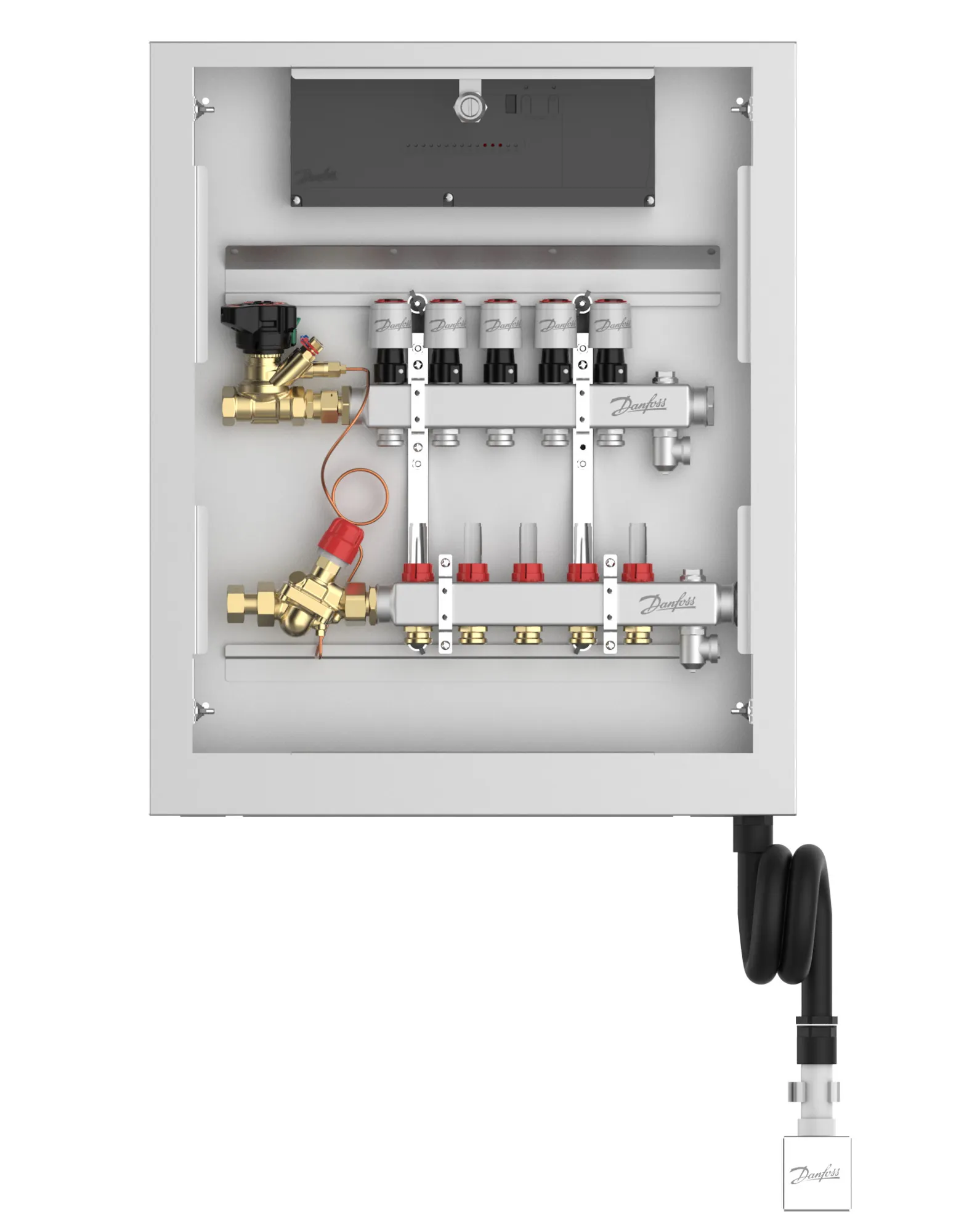

088X3970 Danfoss: Stainless steel manifold 10 loops, AB-PM watertight steel cabinet, ICON2 Master controller, left version
Gross weight
28 Kilogram
Net weight
25 Kilogram
EAN
5702424689506
Actuator
230V
Adaptive learning
Yes
App-solution installer
Installer app with commissioning tool
App-solution user
Danfoss Ally
Application type
UnoFloor
Automatic balancing
Yes
Cabinet
Aluzink steelplate, white powder coated
CE evaluated
Yes
Contain batteries
Yes
Control
ICON2TM Master controller
Description
Stainless steel manifold 10 loops, AB-PM watertight steel cabinet, ICON2 Master controller, left version
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
In scope of WEEE
Yes
Interfaces
Bluetooth,Zigbee
Number of connections
2
Number of floor heating manifold connections
10
Power per output [W] [Max]
2 W
Pressure nominal primary [bar]
6 bar
Pressure valve
AB-PM set
Product group
UnoFloors
PWM
Yes
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Scheduling
Yes
Supply temperature construction [ËšC]
60 °C
Supply voltage [V]
230V Hz 50
Type
UnoFloor Watertight - Control
Valve excercise
Yes
Version
Left
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U2110
Floor Heating Controls, Danfoss Icon2™ MC, Main Controller, 230 V, Number of channels: 15, On-wall
088H3250
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 230, NC, 1.150 m
014G2400
Danfoss Ally™ Gateway, Zigbee
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
088U2120
Floor Heating Controls, Danfoss Icon2™ RT wireless, Room Sensor, Attachable
088U2121
Floor Heating Controls, Danfoss Icon2™ RT wireless, Room Thermostat, Number of channels: 0, Attachable
088U2122
Floor Heating Controls, Danfoss Icon2™ RT wireless, Room Thermostat, Attachable
088U2125
Floor Heating Controls, Danfoss Icon2™ 24V RT wired, Room Thermostat, 24 V, Number of channels: 0, In-wall
088U2128
Floor Heating Controls, Danfoss Icon2™ 24V RT wired, Room Thermostat, 24 V, Number of channels: 0, On-wall
