088X4107

Part Number: 088X4107
088X4107
Manufacturer
Danfoss
Part number
088X4107
Category

Product Information

Extended Description

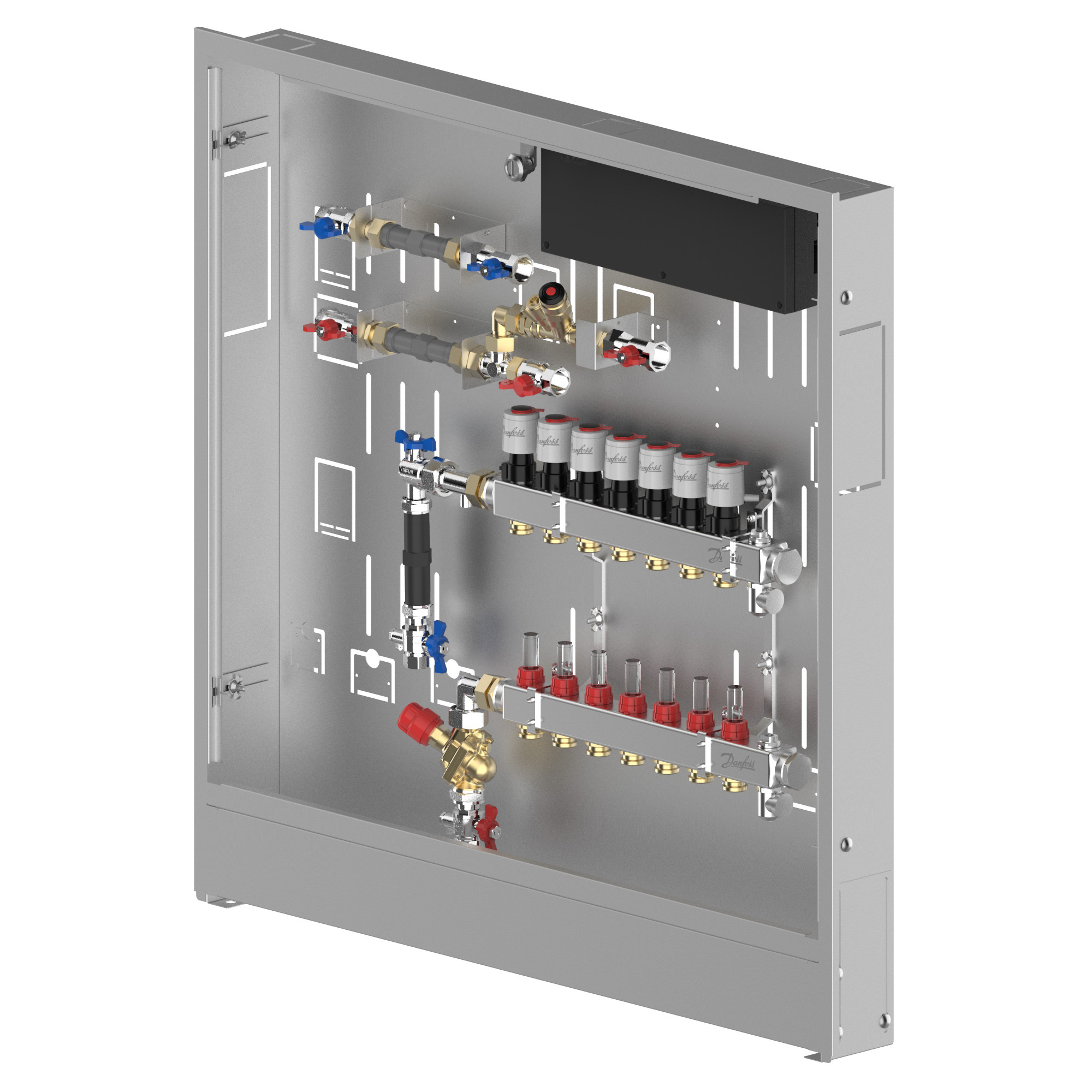

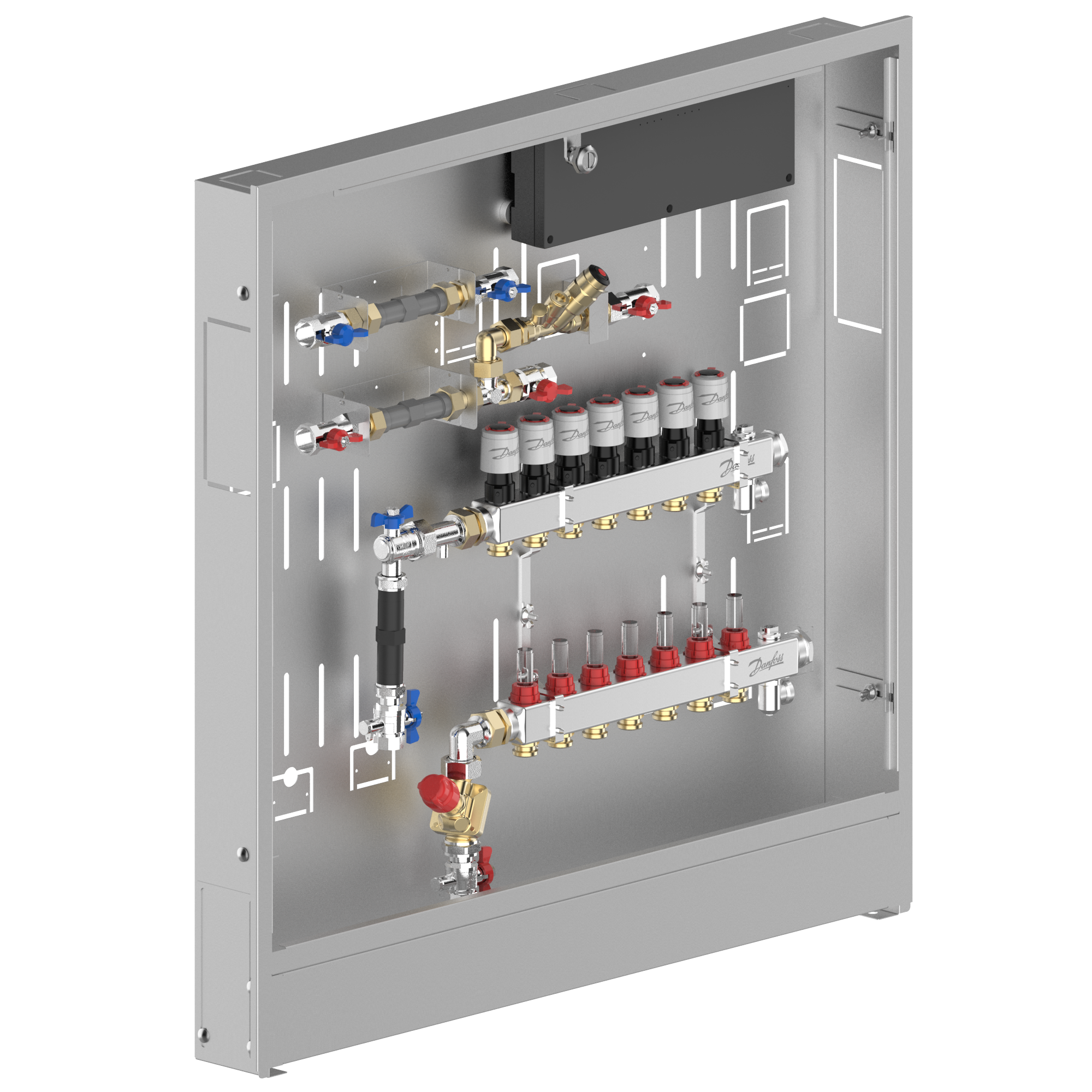

088X4107 Danfoss: Stainless steel manifold 7 loops, DHW line MTCV DHW circulation, AB-PM, in cabinet, ICON Wiring center, left version
Gross weight
24.5 Kilogram
Net weight
21 Kilogram
Volume
100.289 Liter
EAN
5702424628826
Actuator
230V
Application type
UnoFloor
Balancing valve
MTCV
Cabinet
Aluzink steelplate, white powder coated
CE evaluated
Yes
Control
ICONTM Wiring center
Description
Stainless steel manifold 7 loops, DHW line MTCV DHW circulation, AB-PM, in cabinet, ICON Wiring center, left version
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
In scope of WEEE
No
Meetering
Prepared for water and energy meter
Number of floor heating manifold connections
7
Pressure nominal primary [bar]
6 bar
Pressure valve
AB-PM set
Product group
UnoFloors
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Supply temperature construction [ËšC]
60 °C
Supply voltage [V]
230V Hz 50
Type
UnoFloor Metering
Version
Left
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U1040
Floor Heating Controls, Danfoss Icon™ 230V Wiring Center, Wiring center, 230.0 V, Output voltage [V] AC: 230, Number of channels: 8, On-wall
088U1000
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1005
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1010
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1015
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1020
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1025
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
UnoFloor Metering UnoFloor (Installation Guide) UnoFloor Metering Comfort/Control Danfoss EU 240806EN670901 Unofloor Metering Comfort Left, 7-Loops 088X4107_Unofloor_Metering_Comfort_Left_7-Loops 088X4107_Unofloor_Metering_Comfort_Left_7-Loops UnoFloor Metering Comfort(Control)_RFA Unofloor Metering Comfort Left, 7-Loops Unofloor Metering Comfort Left, 7-Loops Metering
