088X4604
Part Number: 088X4604
Product Information
Extended Description

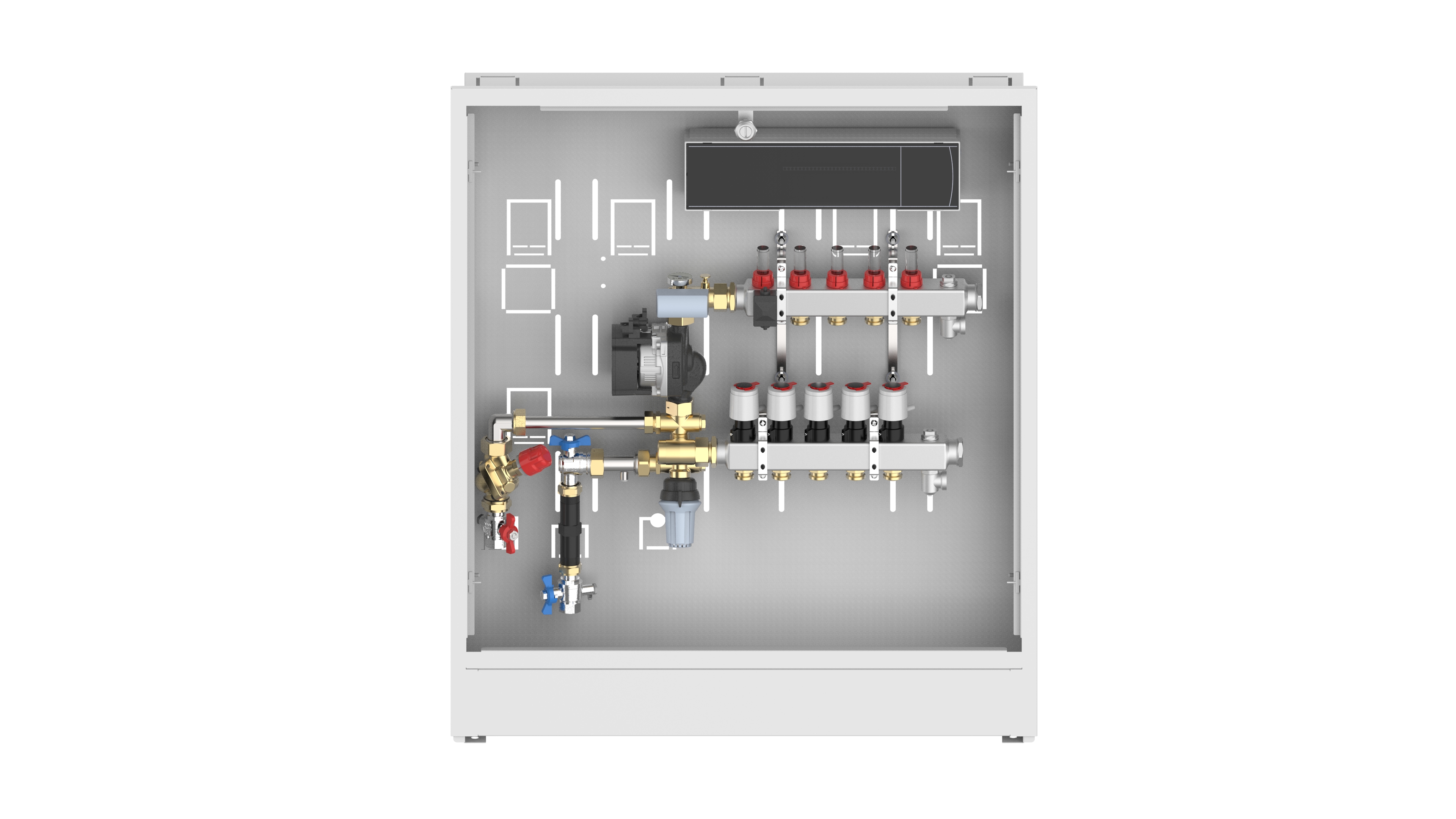

088X4604 Danfoss: Stainless steel manifold with shunt, 4 loops, AB-PM, steel cabinet, ICON Wiring center, left version
Gross weight
19 Kilogram
Net weight
16 Kilogram
Volume
82.998 Liter
EAN
5702424603120
Actuator
230V
Application type
UnoFloor
Approval
CE
Cabinet
Aluzink steelplate, white powder coated
CE evaluated
Yes
Contain batteries
No
Control
ICONTM Wiring center
Description
Stainless steel manifold with shunt, 4 loops, AB-PM, steel cabinet, ICON Wiring center, left version
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
In scope of WEEE
Yes
Meetering
Prepared for energy meter
Number of connections
2
Number of heating manifold connections [loops] [Max]
4
Pressure nominal primary [bar]
6 bar
Pressure valve
AB-PM set
Product group
UnoFloors
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Shunt
FHM-C1
Supply temperature construction [ËšC]
60 °C
Supply voltage [V]
230V Hz 50
Type
UnoFloor Mixing – Comfort
UL evaluated
Out of scope
Version
Left
013G7376
Service built-in valve for manifold
088U0819
Replacement flowmeter for FHF & SSM manifolds
088U1040
Floor Heating Controls, Danfoss Icon™ 230V Wiring Center, Wiring center, 230.0 V, Output voltage [V] AC: 230, Number of channels: 8, On-wall
088X3020
UnoFloor accessories
088H3250
Thermal actuators, TWA-A, RA, Supply voltage [V] AC: 230, NC, 1.150 m
088U1000
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1005
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1010
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1015
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1020
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, In-wall
088U1025
Floor Heating Controls, Danfoss Icon™ 230V RT wired, Room Thermostat, 230.0 V, Output voltage [V] AC: 230, Number of channels: 0, On-wall
088U1110
Danfoss Icon Floor Sensor for 24 V and 230 V
088X3026
UnoFloor accessories
UnoFloor Mixing
UnoFloor (Installation Guide)
UnoFloor Metering Comfort/Control
Danfoss EU 240806EN670901
UnoFloor_Mixing_5_Loops_Left_Icon_24V_R002_1
088X4604_UnoFloor_Mixing_4_Loops_Left_Icon_230V
088X4604_UnoFloor_Mixing_4_Loops_Left_Icon_230V
088X4604_UnoFloor_Mixing_Comfort_4_Loops_Left
UnoFloor Mixing Comfort(Control)_RFA
