088X4606
Part Number: 088X4606
Product Information
Extended Description

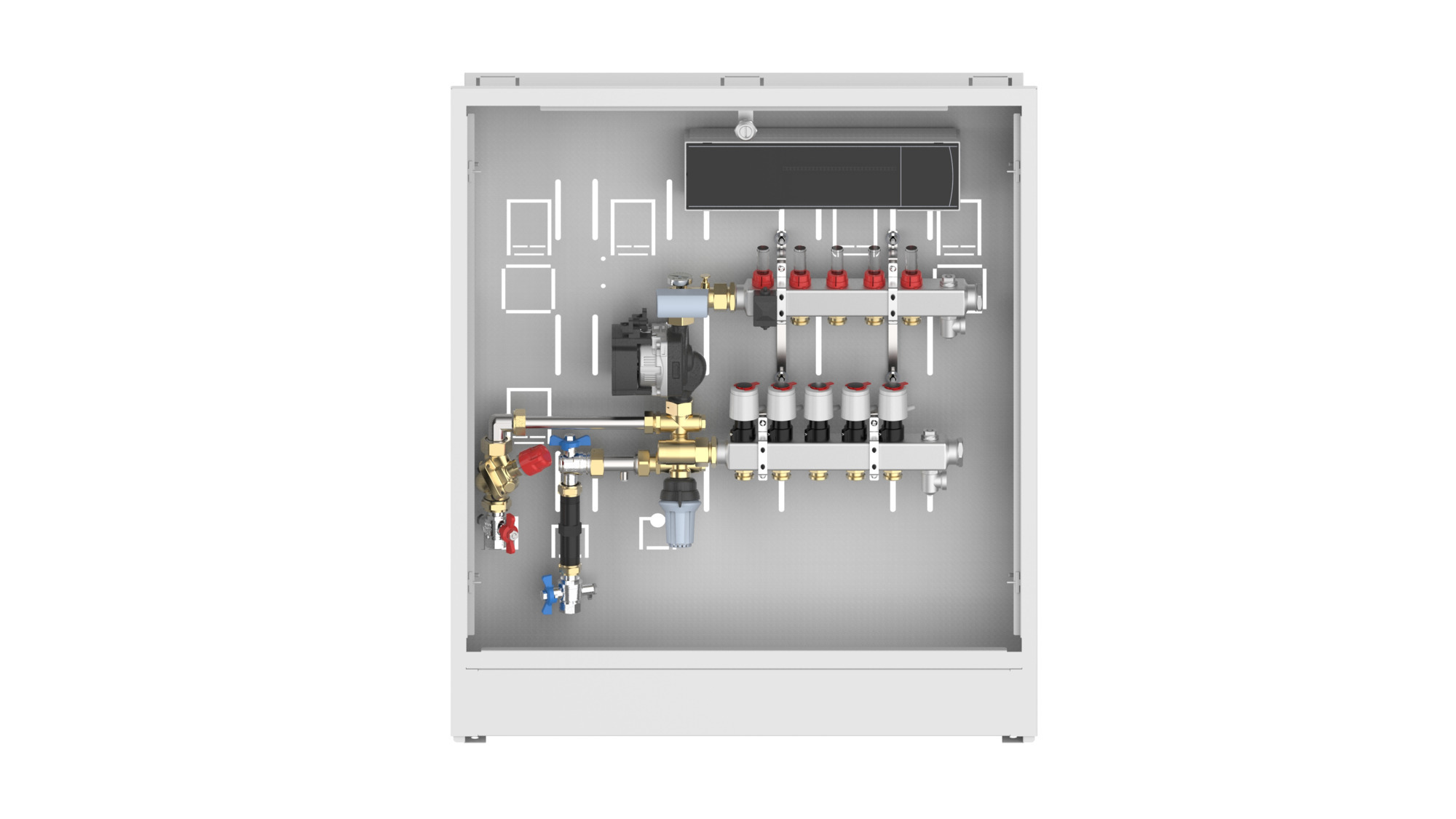

088X4606 Danfoss: Stainless steel manifold with shunt, 6 loops, AB-PM, steel cabinet, ICON Wiring center, left version
Gross weight
31 Kilogram
Net weight
30 Kilogram
Volume
82.998 Liter
EAN
5702424603267
Actuator
230V
Application type
UnoFloor
Approval
CE
Cabinet
Aluzink steelplate, white powder coated
CE evaluated
Yes
Contain batteries
No
Control
ICONTM Wiring center
Description
Stainless steel manifold with shunt, 6 loops, AB-PM, steel cabinet, ICON Wiring center, left version
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating manifold type
Stainless steel with flow meter and manual air vent
In scope of WEEE
Yes
Meetering
Prepared for energy meter
Number of connections
2
Number of heating manifold connections [loops] [Max]
6
Pressure nominal primary [bar]
6 bar
Pressure valve
AB-PM set
Product group
UnoFloors
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Shunt
FHM-C1
Supply temperature construction [ËšC]
60 °C
Supply voltage [V]
230V Hz 50
Type
UnoFloor Mixing – Comfort
UL evaluated
Out of scope
Version
Left
