090G6011
Part Number: 090G6011
Product Information
Extended Description
090G6011 Danfoss: Pressure reference: Gauge (relative), Output signal: Ratio metric, Electrical connection: Round Packard Metri-Pack, Pressure connection type: G, Pressure connection size: 1/4-A, Specification key: DST P650-2716-C2GB041
Gross weight
0.062 Kilogram
Net weight
0.06 Kilogram
Volume
0.098 Liter
EAN
5702424055868
+ output
Pin C
+ supply
Pin A
- common
Pin B
Ambient temperature range [=C2=B0C] [max]
125 =C2=B0C
Ambient temperature range [=C2=B0C] [min]
-40 =C2=B0C
Ambient temperature range [=C2=B0F] [max]
257 =C2=B0F
Ambient temperature range [=C2=B0F] [min]
-40 =C2=B0F
Burst pressure [bar]
1000 bar
CE evaluated
Yes
Compensated temp. range [=C2=B0C] [max]
125 =C2=B0C
Compensated temp. range [=C2=B0C] [min]
-40 =C2=B0C
Compensated temp. range [=C2=B0F] [max]
257 =C2=B0F
Compensated temp. range [=C2=B0F] [min]
-40 =C2=B0F
Contain batteries
No
Country of origin
MADE IN GERMANY
Electrical conn. comments
Sn coated
Electrical conn. Male/Female
Male
Electrical connection
Round Packard Metri-Pack
Electrical connection size
3 pin
Enclosure rating IP
IP67
High Clipping Level
94
International Article Number
5702424055868
Low Clipping level
6
Medium temperature range [=C2=B0C] [max]
125 =C2=B0C
Medium temperature range [=C2=B0C] [min]
-40 =C2=B0C
Medium temperature range [=C2=B0F] [max]
257 =C2=B0F
Medium temperature range [=C2=B0F] [min]
-40 =C2=B0F
Output signal
Ratio metric
Overload pressure max. [bar]
150 bar
Packing format
Multi pack
Pressure connection HEX [mm]
22 mm
Pressure connection size
1/4-A
Pressure connection standard
DIN 3852-E
Pressure connection type
G
Pressure Male/Female
Male
Pressure range [bar] [max]
50 bar
Pressure range [bar] [min]
0 bar
Pressure range [psi] [max]
725 psi
Pressure range [psi] [min]
0 psi
Pressure reference
Gauge (relative)
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
Yes
Quantity per packing format
24 pc
Ratiometric of Vsupply [%] [max]
90 %
Ratiometric of Vsupply [%] [min]
10 %
REACH Candidate List substances
No
Response time max. [ms]
2 ms
RoHS compliant
Yes - RoHS ok
Specification key
DST P650-2716-C2GB041
Supply voltage [V] DC [max]
5.5 V
Supply voltage [V] DC [min]
4.5 V
Type
DST P650
060G8085
Accessories, sensors, Accessory Cable 0.8m w round packard
060G8195
Accessories, sensors, Accessory Cable 1.0m w Round Packard
060G8196
Accessories, sensors, Accessory Cable 2.5m w Round Packard
060G8206
Accessories, sensors, Accessory Cable 1.815m w Round Packard
060G8229
Accessories, sensors, Accessory Cable 1.0m with Round Packard
060G8245
Accessory, Cable, Accessory cable 5m Round Packard I/20
060G8246
Accessory, Cable, Accessory cable 5m Round Packard
064G0910
Accessory, Cable, Accessory Cable 10m Round Packard I/14
060G8086
Accessories, sensors, Accessory Cable 1.3m w round packard
060G8193
Accessories, sensors, Accessory Cable 1.7m w Round packard
DST P650 - a robust, digital-ready pressure transmitter built for reliable performance in intense mobile hydraulic applications.
Mobile Hydraulic Off-highway equipment
OEM Pressure Transmitters for heavy-duty applications, Type DST P600 and DST P650
Danfoss EU-UK 090R0011.02
UL E494625
Pressure & Temperature Sensors
Danfoss MD 063R1015.AB

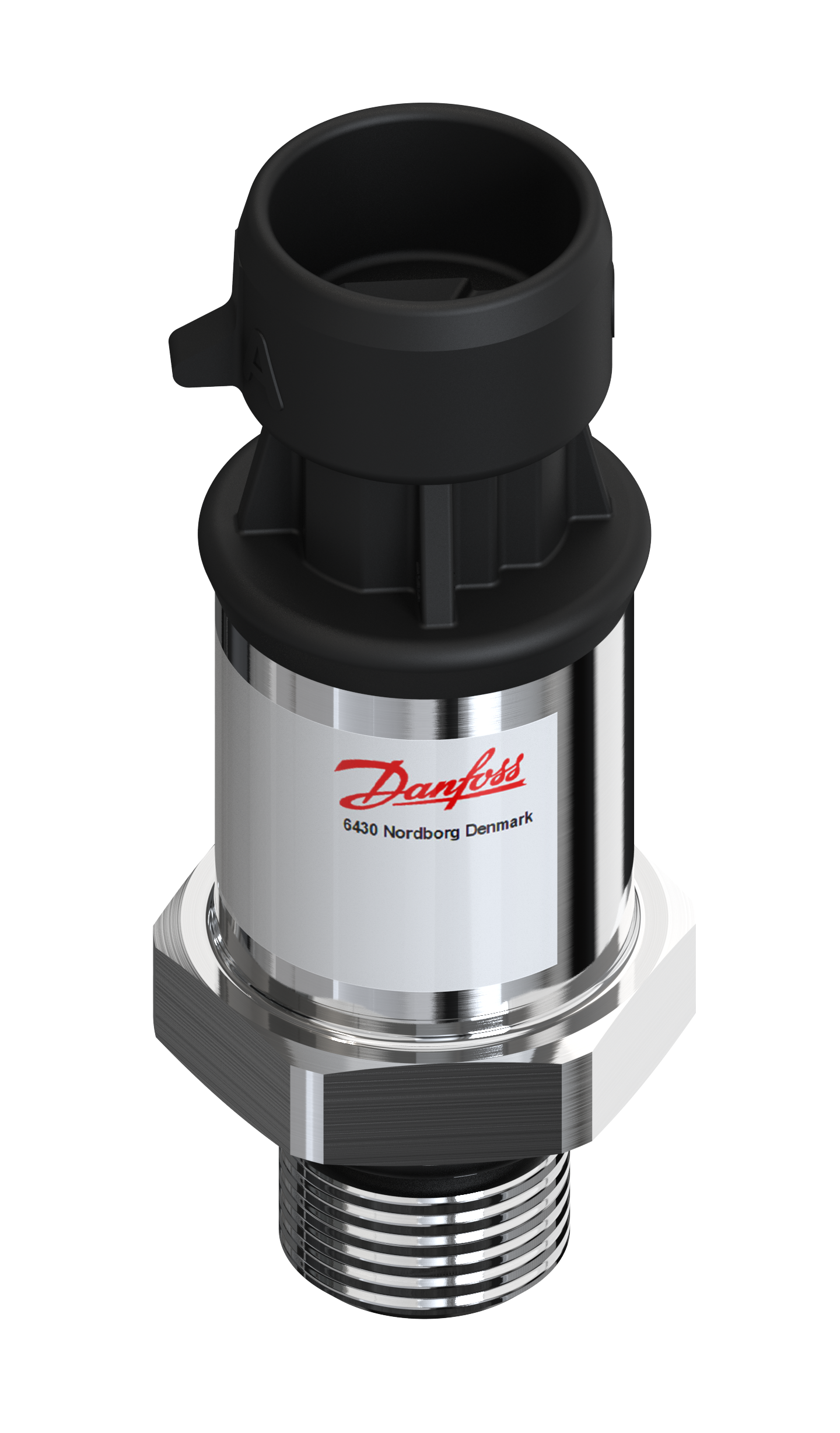

Pressure transmitter thin-film, Round Packard, G 1/4
