097B14336

Part Number: 097B14336
097B14336
Manufacturer
Danfoss
Part number
097B14336
Category

Product Information

Extended Description

097B14336 Danfoss: Refrigerants: R404A; R452A, Compressor power supply [V]: w/o motor, Oil type: BOCKlub E55, Legacy BOCK ID: 14336
Gross weight
33.64 Kilogram
Net weight
25.7 Kilogram
Volume
135.828 Liter
EAN
5715162574652
Approval standard
No
Brand
BOCK
Clutch type
No
Colour
Not painted
Compressor power supply [V]
w/o motor
Contain batteries
No
Cylinder
2
Description

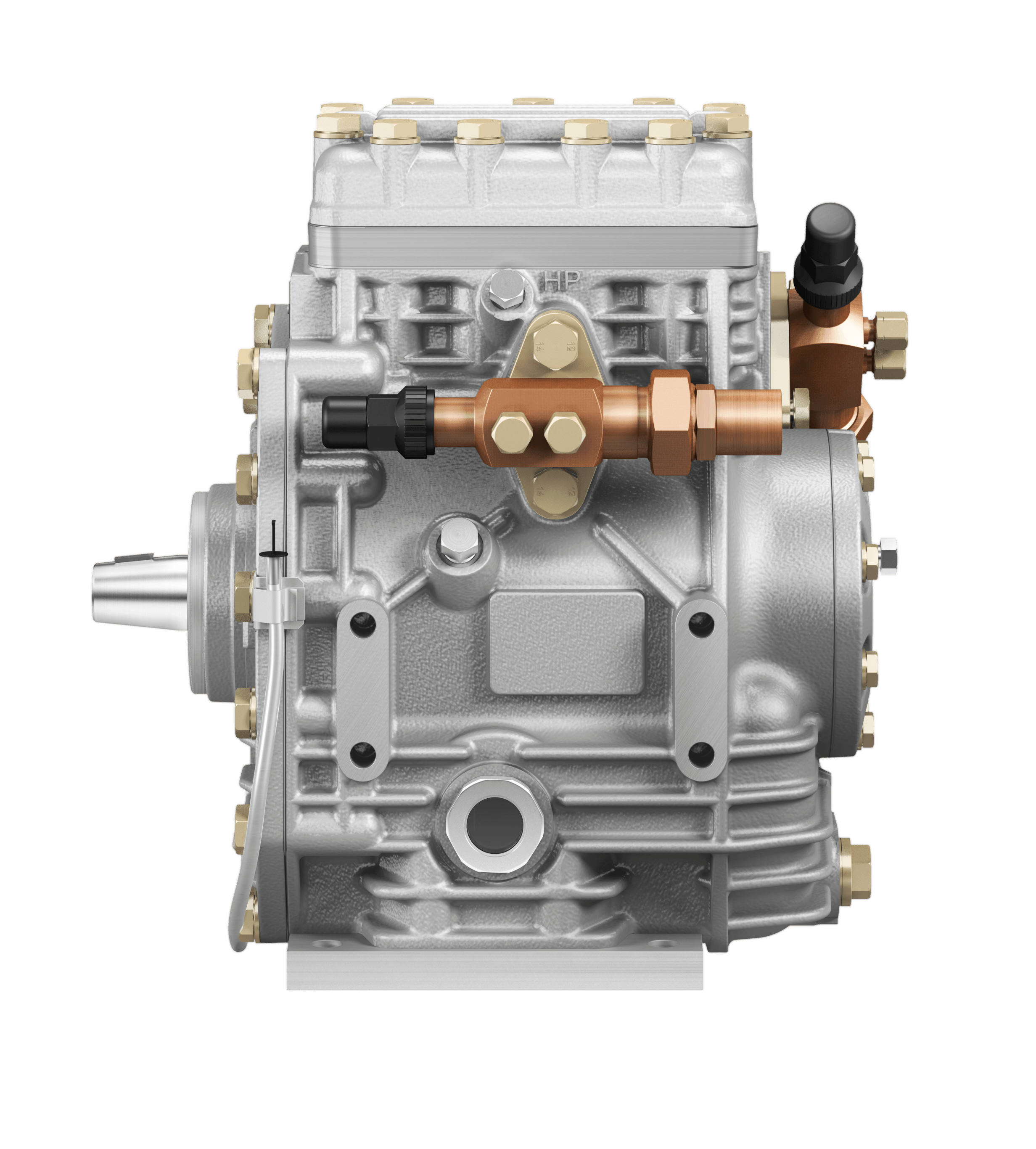

Compressor FKX30/235 TK
Discharge connection size [in]
5/8 in
Discharge connection size [mm]
16 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
FK Vehicle Compressors
Flywheel
No
Frequency Hz
w/o motor
In scope of WEEE
No
Intermediate flange/adapter
No
Legacy BOCK ID
14336
Length (mm)
329
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
FKX30/235 TK
Oil sump heater
No
Oil type
BOCKlub E55
Product group
Open type compressors
Product Name Description
Reciprocating compressor FK
REACH Candidate List substances
Lead (CAS no. 7439-92-1),6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Refrigerants
R404A,R452A
SCIP dossier no.
45d3bddc-7f41-4b9e-bf54-36219f358e5a
SCIP dossier product name
FK(X)30/=E2=80=A6. - series
Suction connection size [in]
7/8 in
Suction connection size [mm]
22 mm
Suction connection size type
Standard
Suction connection type
Soldering
Swept volume [cm3]
233 cm=C2=B3
Technology
Vehicle compressor
Thermal protection thermostat
No
Total height [mm]
324 mm
Type
FKX30
Type designation
FKX30/235 TK
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Width [mm]
250 mm
097B02520
BOCK, Lubricant, Oil
097B02521
BOCK, Lubricant, Oil
097B02522
BOCK, Lubricant, Oil
097B03370
BOCK, Miscellaneous, Strainer
097B03381
BOCK, Housing, Cylinder cover
097B03384
BOCK, Housing, Cylinder cover
097B03860
BOCK, Miscellaneous, Cable
097B03861
BOCK, Miscellaneous, Cable
097B04020
BOCK, Connector, Flange
097B04652
BOCK, Miscellaneous, Flywheel
Bock shaft couplings for direct drive Bock Electromagnetic clutch for V-belt drive Maximum permissible inclination for Bock compressors O-ring selection Torques for screwed connections Torques for screwed connections Information valve plate gasket Instructions for assembly of Bock shaft coupling Operating guide BOCK=C2=AE FK30 Assembly instructions shaft seal FK40+50 BOCK compressors Open type compressors, Reciprocating compressor FK, FKX30, aluminum C - FKX30/235 N, 1.0851-14338.0 BL.1-4 C - FKX30 , 14338 FK30 K.STEP Open type compressors, Reciprocating compressor FK, FKX30, aluminum
