097B17257

Part Number: 097B17257
097B17257
Manufacturer
Danfoss
Part number
097B17257
Category

Product Information

Extended Description

097B17257 Danfoss: Refrigerants: R404A; R407C; R452A; R407A; R134a; R407F; R513A; R448A; R450A; R449A, Compressor power supply [V]: 380-420V Y/YY -3- 50Hz PW, Oil type: BOCKlub E55, Anti-vibration pads: No, Legacy BOCK ID: 17257
Gross weight
237.9 Kilogram
Net weight
216.1 Kilogram
Volume
428.8 Liter
EAN
5715162564424
Anti-vibration pads
No
Approval standard
No
Brand
BOCK
Capacity regulator
No
Colour
Blue - standard (conductive coating)
Compressor power supply [V]
380-420V Y/YY -3- 50Hz PW
Contain batteries
No
Cylinder
6
Description

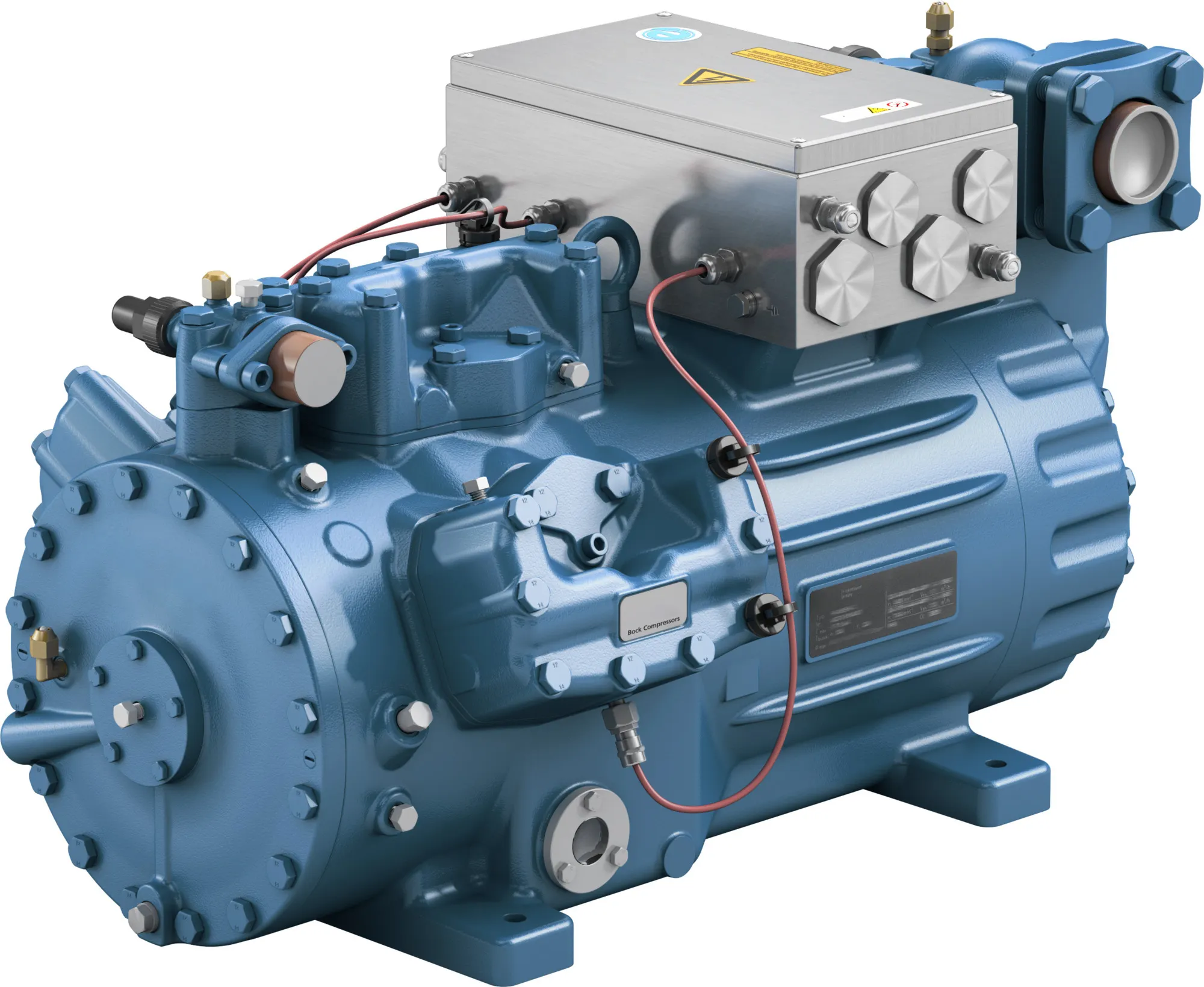

Compressor EX-HGX56e/995-4
Discharge connection size [in]
1 3/8 in
Discharge connection size [mm]
35 mm
Discharge connection size type
Standard
Discharge connection type
Soldering
Family
HG ATEX Compressors
Frequency Hz
50
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
17257
Length (mm)
740
Max pressure (PS) - high side
28 bar
Max pressure (PS) - low side
19 bar
Model number
EX-HGX56e/995-4
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil differential pressure sensor
No
Oil sump heater
No
Oil type
BOCKlub E55
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
Refrigerants
R134a,R404A,R407A,R407C,R407F,R448A,R449A,R450A,R452A,R513A
Step protection for CR/SU
No
Suction connection size [in]
2 1/8 in
Suction connection size [mm]
54 mm
Suction connection size type
Standard
Suction connection type
Soldering
Technology
Semi-hermetic ATEX
Thermal protection thermostat
3
Total height [mm]
436 mm
Type
EX-HGX56e
Type designation
EX-HGX56e/995-4
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
Width [mm]
440 mm
