097C0220

Part Number: 097C0220
097C0220
Manufacturer
Danfoss
Part number
097C0220
Category

Product Information

Extended Description

097C0220 Danfoss: Refrigerants: R744, Compressor power supply [V]: 220-240V D / 380-420V Y -3- 50Hz, Oil type: BOCKlub E85, Anti-vibration pads: Yes, Legacy BOCK ID: 16438
Gross weight
98.494 Kilogram
Net weight
89.094 Kilogram
Volume
152.46 Liter
EAN
5715162646021
Anti-vibration pads
Yes
Approval standard
No
Brand
BOCK
Colour
Blue (standard)
Compressor power supply [V]
220-240V D / 380-420V Y -3- 50Hz
Contain batteries
No
Cylinder
2
Description

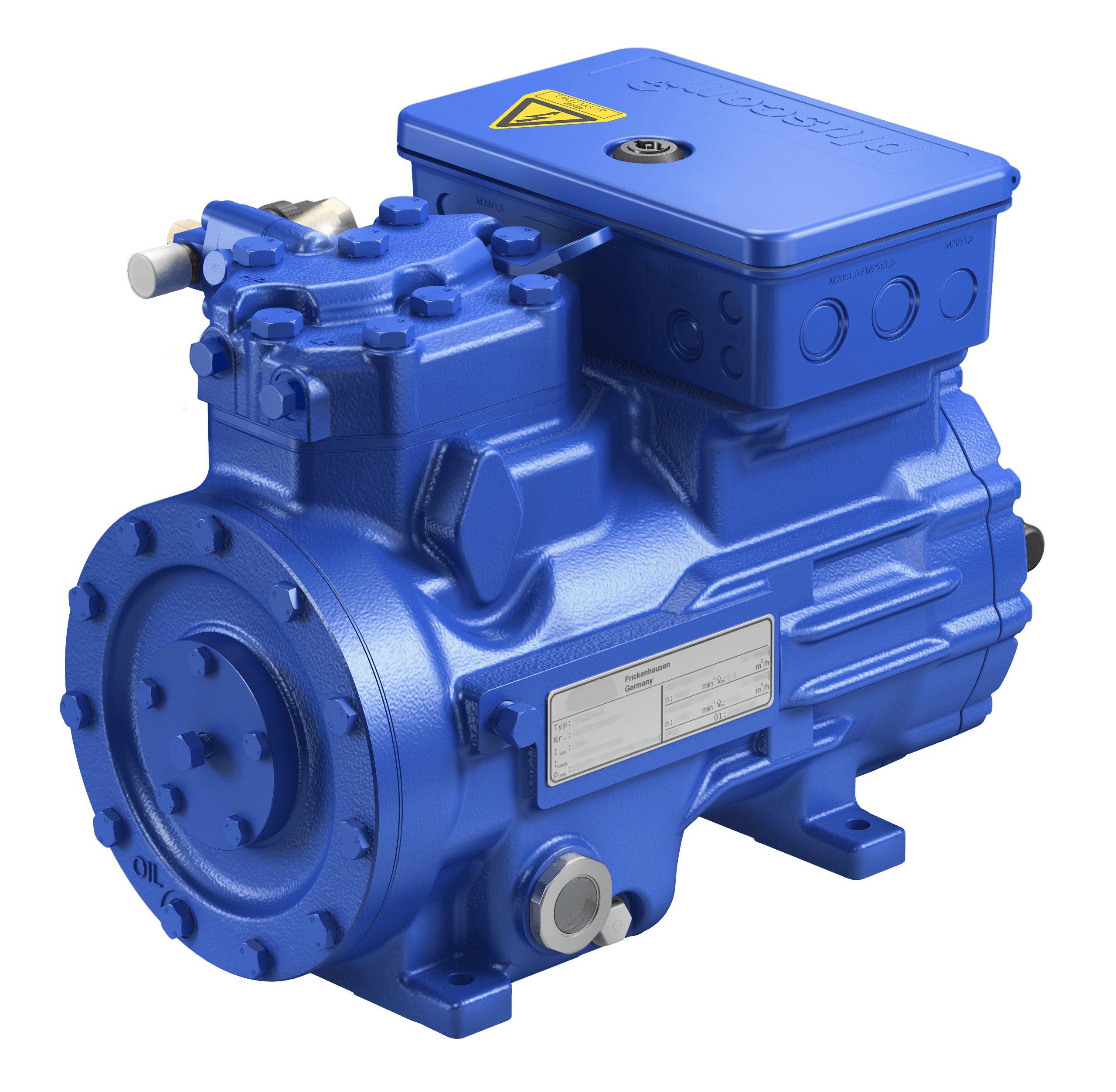

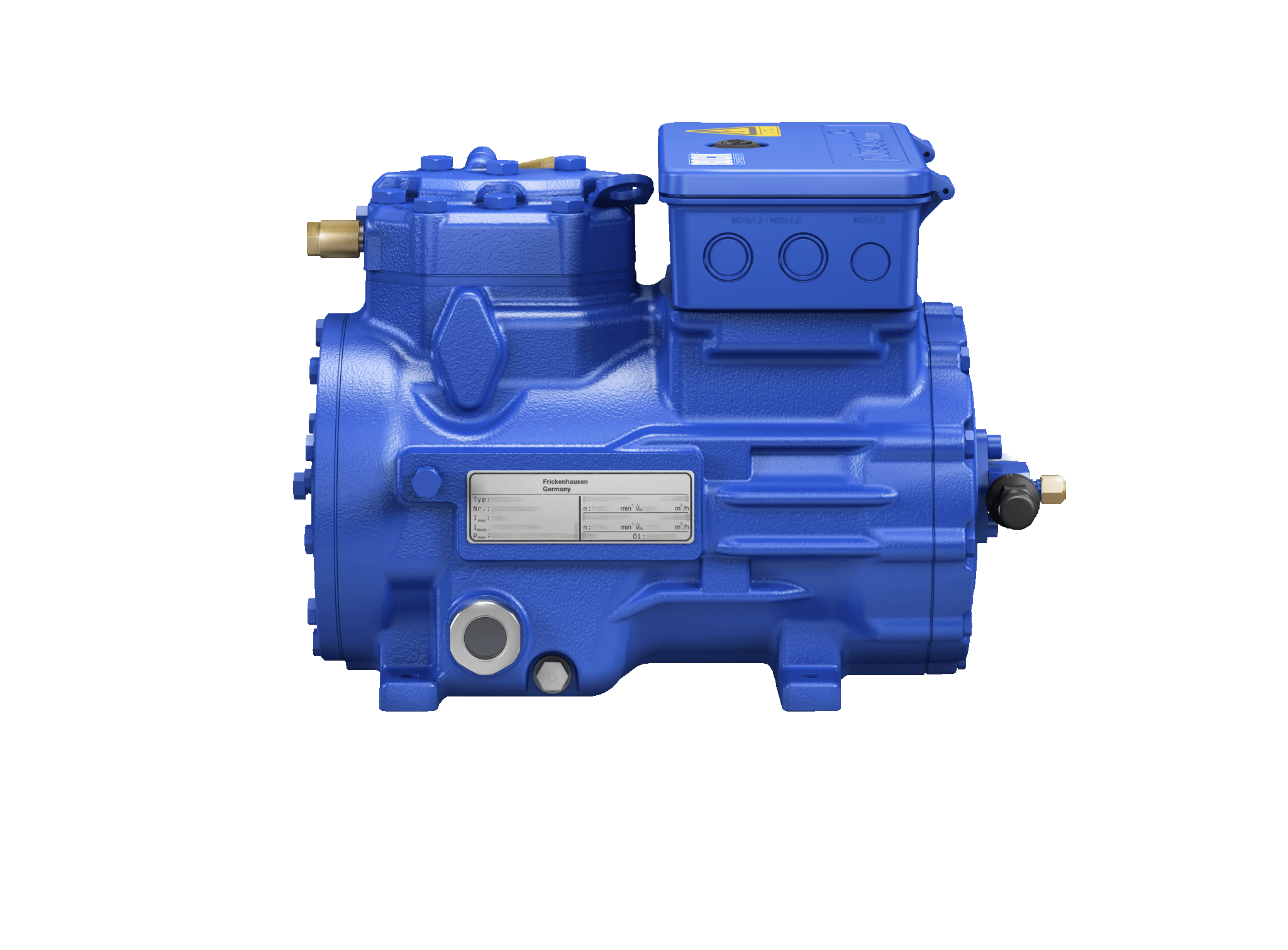

Compressor HGX12e/20-4 S CO2 LT
Discharge connection size [in]
1/2 in
Discharge connection size [mm]
12.8 mm
Discharge connection size type
Standard
Discharge connection type
Soldering/welding
Family
CO2 LT compressors
Frequency Hz
50
Hot gas temperature sensor
No
In scope of WEEE
No
IP class
IP 66
Legacy BOCK ID
16438
Max pressure (PS) - high side
100 bar
Max pressure (PS) - low side
100 bar
Model number
HGX12e/20-4 S CO2 LT
Motor protection
INT69 G 115-230V AC, 50/60 Hz, IP00
Oil sump heater
110-240V AC
Oil temperature sensor
Pt1000
Oil type
BOCKlub E85
Phase
3
Product group
Semi-hermetic compressors
Product Name Description
Reciprocating compressor HG
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R744
SCIP dossier no.
8f0c875f-51d2-4674-8d59-4062c78b55d8
SCIP dossier product name
HG(X)12/=E2=80=A6. CO2 T/LT
Screw-in valve
No
Suction connection size [in]
5/8 in
Suction connection size [mm]
16 mm
Suction connection size type
Standard
Suction connection type
Soldering/welding
Technology
Semi-hermetic CO2 subcritical
Terminal box reduced/steel TB
No
Thermal protection thermostat
No
Type
HGX12e
Type designation
HGX12e/20-4 S CO2 LT
U.S. EPA label
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only.
